Chemistry of Carbon

A: Carbon

Carbon is an element in Group IV (Group 4) of the Periodic Table. It has atomic number 6 and electronic configuration 2:4, thus has four valence electrons (tetravalent). It does not easily ionize but forms strong covalent bonds with other elements including itself.

(a) Occurrence

Carbon mainly naturally occurs as:

• Allotropes of carbon, i.e., graphite, diamond, and fullerenes.
• Amorphous carbon in coal, peat, charcoal, and coke.
• Carbon(IV) oxide gas accounting for 0.03% by volume of normal air in the atmosphere.

(b) Allotropes of Carbon

Carbon naturally occurs in two main crystalline allotropic forms: carbon-graphite and carbon-diamond.

(c) Properties of Carbon

(i) Physical properties of carbon

• Carbon occurs widely and naturally as a black solid.
• It is insoluble in water but soluble in carbon disulphide and organic solvents.
• It is a poor electrical and thermal conductor.

(ii) Chemical properties of carbon

I. Burning

Experiment: Introduce a small piece of charcoal on a Bunsen flame then lower it into a gas jar containing oxygen gas. Put three drops of water. Swirl. Test the solution with blue and red litmus papers.

Observation:

• Carbon chars then burns with a blue flame.
• Colourless and odourless gas produced.
• Solution formed turns blue litmus paper faint red. Red litmus paper remains red.

Explanation: Carbon burns in air and faster in oxygen with a blue non-sooty/non-smoky flame forming carbon (IV) oxide gas. Carbon burns in limited supply of air with a blue non-sooty/non-smoky flame forming carbon (II) oxide gas. Carbon (IV) oxide gas dissolves in water to form a weak acidic solution of carbonic (IV) acid.

Chemical Equations:

C(s) + O₂(g) → CO₂(g) (in excess air)

2C(s) + O₂(g) → 2CO(g) (in limited air)

CO₂(g) + H₂O(l) → H₂CO₃(aq) (very weak acid)

II. Reducing agent

Experiment: Mix thoroughly equal amounts of powdered charcoal and copper (II) oxide into a crucible. Heat strongly.

Observation: Colour change from black to brown.

Explanation: Carbon is a reducing agent. For ages it has been used to reduce metal oxide ores to metal, itself oxidized to carbon (IV) oxide gas. Carbon reduces black copper (II) oxide to brown copper metal.

Chemical Equations:

2CuO(s) + C(s) → 2Cu(s) + CO₂(g)

(black) (brown)

2PbO(s) + C(s) → 2Pb(s) + CO₂(g)

(brown when hot/yellow when cool) (grey)

2ZnO(s) + C(s) → 2Zn(s) + CO₂(g)

(yellow when hot/white when cool)

Fe₂O₃(s) + 3C(s) → 2Fe(s) + 3CO₂(g)

(brown when hot/cool) (grey)

Fe₃O₄(s) + 4C(s) → 3Fe(s) + 4CO₂(g)

(brown when hot/cool) (grey)

B: Compounds of Carbon

The following are the main compounds of carbon:

• Carbon(IV) Oxide (CO₂)
• Carbon(II) Oxide (CO)
• Carbonate(IV) (CO₃^2-) and hydrogen carbonate(IV) (HCO₃^–)
• Sodium carbonate (Na₂CO₃)

(i) Carbon(IV) Oxide (CO₂)

(a) Occurrence

Carbon(IV) oxide is found:

• In the air/atmosphere as 0.03% by volume.
• A solid carbon(IV) oxide mineral in Esageri near Eldame Ravine and Kerita near Limuru in Kenya.

(b) School Laboratory preparation

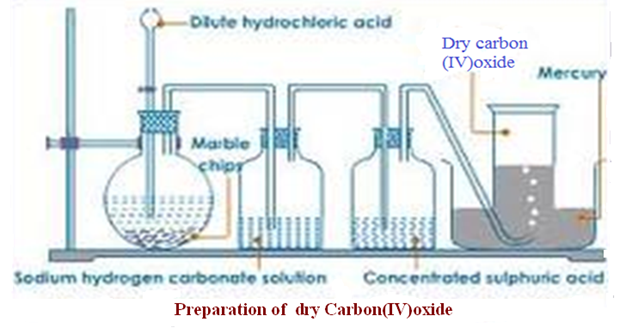

In the school laboratory, carbon(IV) oxide can be prepared from the reaction of marble chips (CaCO₃) or sodium hydrogen carbonate (NaHCO₃) with dilute hydrochloric acid.

(c) Properties of carbon(IV) oxide gas

1. Write the equation for the reaction for the school laboratory preparation of carbon (IV) oxide gas.

Any carbonate reacted with dilute hydrochloric acid should generate carbon (IV) oxide gas.

Chemical equations:

CaCO₃(s) + 2HCl(aq) → CaCl₂(aq) + H₂O(l) + CO₂(g)

ZnCO₃(s) + 2HCl(aq) → ZnCl₂(aq) + H₂O(l) + CO₂(g)

MgCO₃(s) + 2HCl(aq) → MgCl₂(aq) + H₂O(l) + CO₂(g)

CuCO₃(s) + 2HCl(aq) → CuCl₂(aq) + H₂O(l) + CO₂(g)

NaHCO₃(s) + HCl(aq) → NaCl(aq) + H₂O(l) + CO₂(g)

KHCO₃(s) + HCl(aq) → KCl(aq) + H₂O(l) + CO₂(g)

2. What method of gas collection is used in preparation of Carbon(IV) oxide gas? Explain.

Downward delivery / upward displacement of air / over mercury.

Carbon(IV) oxide gas is about 1½ times denser than air.

3. What is the purpose of:

(a) Water?

To absorb the more volatile hydrogen chloride fumes produced during the vigorous reaction.

(b) Sodium hydrogen carbonate?

To absorb the more volatile hydrogen chloride fumes produced during the vigorous reaction and by reacting with the acid to produce more carbon (IV) oxide gas.

Chemical equation:

NaHCO₃(s) + HCl(aq) → NaCl(aq) + H₂O(l) + CO₂(g)

(c) Concentrated sulphuric(VI) acid?

To dry the gas / as a drying agent.

4. Describe the smell of carbon(IV) oxide gas.

Colourless and odourless.

5. Effect on lime water.

Experiment: Bubble carbon(IV) oxide gas into a test tube containing lime water for about three minutes.

Observation:

• White precipitate is formed.
• White precipitate dissolves when excess carbon(IV) oxide gas is bubbled.

Explanation: Carbon(IV) oxide gas reacts with lime water (Ca(OH)₂) to form an insoluble white precipitate of calcium carbonate. Calcium carbonate reacts with more carbon(IV) oxide gas to form soluble calcium hydrogen carbonate.

Chemical equations:

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

CaCO₃(s) + H₂O(l) + CO₂(g) → Ca(HCO₃)₂(aq)

6. Effects on burning magnesium ribbon

Experiment: Lower a piece of burning magnesium ribbon into a gas jar containing carbon (IV) oxide gas.

Observation:

• The ribbon continues to burn with difficulty.
• White ash/solid is formed.
• Black speck/solid/particles formed on the side of gas jar.

Explanation: Carbon (IV) oxide gas does not support combustion/burning. Magnesium burns to produce/release enough heat energy to decompose carbon (IV) oxide gas to carbon and oxygen. Magnesium continues to burn in oxygen forming white magnesium oxide solid/ash. Black speck/particle of carbon/charcoal residue forms on the sides of reaction flask. During the reaction carbon (IV) oxide is reduced (oxidizing agent) to carbon while magnesium is oxidized to magnesium oxide.

Chemical equation:

2Mg(s) + CO₂(g) → C(s) + 2MgO(s)

7. Dry and wet litmus papers were separately put in a gas jar containing dry carbon (IV) oxide gas. State and explain the observations made.

Observation:

• Blue dry litmus paper remains blue.
• Red dry litmus paper remains red.
• Blue wet/damp/moist litmus paper turns red.
• Red wet/damp/moist litmus paper remains red.

Explanation: Dry carbon (IV) oxide gas is a molecular compound that does not dissociate/ionize to release H⁺ and thus has no effect on litmus papers. Wet/damp/moist litmus paper contains water that dissolves/reacts with dry carbon (IV) oxide gas to form the weak solution of carbonic (IV) acid (H₂CO₃).

Carbonic (IV) acid dissociates/ionizes to a few free H⁺ and CO₃^2- ions.

The few H⁺ (aq) ions are responsible for turning blue litmus paper to faint red showing the gas is very weakly acidic.

Chemical equation:

H₂CO₃(aq) → 2H⁺(aq) + CO₃^2-(aq)

8. Explain why Carbon (IV) oxide cannot be prepared from the reaction of:

(i) Marble chips with dilute sulphuric (VI) acid.

Explanation: Reaction forms insoluble calcium sulphate (VI) that covers/coats unreacted marble chips stopping further reaction.

Chemical equation:

CaCO₃(s) + H₂SO₄(aq) → CaSO₄(s) + H₂O(l) + CO₂(g)

PbCO₃(s) + H₂SO₄(aq) → PbSO₄(s) + H₂O(l) + CO₂(g)

BaCO₃(s) + H₂SO₄(aq) → BaSO₄(s) + H₂O(l) + CO₂(g)

(ii) Lead (II) carbonate with dilute hydrochloric acid.

Reaction forms insoluble lead (II) chloride that covers/coats unreacted lead (II) carbonate stopping further reaction unless the reaction mixture is heated. Lead (II) chloride is soluble in hot water.

Chemical equation:

PbCO₃(s) + 2HCl(aq) → PbCl₂(s) + H₂O(l) + CO₂(g)

9. Describe the test for the presence of Carbon (IV) oxide.

Using burning splint: Lower a burning splint into a gas jar suspected to contain carbon (IV) oxide gas. The burning splint is extinguished.

Using lime water: Bubble the gas suspected to be carbon (IV) oxide gas. A white precipitate that dissolves in excess bubbling is formed.

Chemical equations:

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

CaCO₃(s) + H₂O(l) + CO₂(g) → Ca(HCO₃)₂(aq)

10. State three main uses of Carbon (IV) oxide gas:

• In the Solvay process for the manufacture of soda ash/sodium carbonate.
• In preservation of aerated drinks.
• As fire extinguisher because it does not support combustion and is denser than air.
• In manufacture of baking powder.

(ii) Carbon (II) Oxide (CO)

(a) Occurrence

Carbon (II) oxide is found from incomplete combustion of fuels like petrol, charcoal, liquefied petroleum gas (LPG).

(b) School Laboratory preparation

In the school laboratory, carbon (II) oxide can be prepared from dehydration of methanoic acid (formic acid, HCOOH) or ethan-1,2-dioic acid (oxalic acid, HOOCCOOH) using concentrated sulphuric (VI) acid. Heating is necessary.

(c) Properties of Carbon (II) Oxide

1. Write the equation for the reaction for the preparation of carbon(II) oxide using:

(i) Method 1:

Chemical equation:

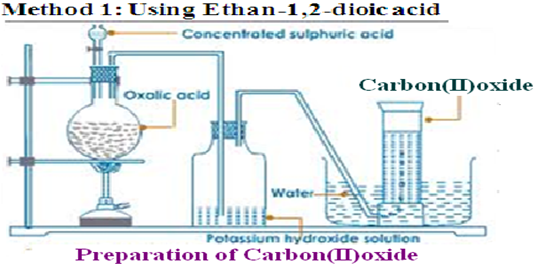

HOOCCOOH(s) – Conc. H₂SO₄ → CO(g) + CO₂(g) + H₂O(l)

H₂C₂O₄(s) – Conc. H₂SO₄ → CO(g) + CO₂(g) + H₂O(l)

(ii) Method 2:

Chemical equation:

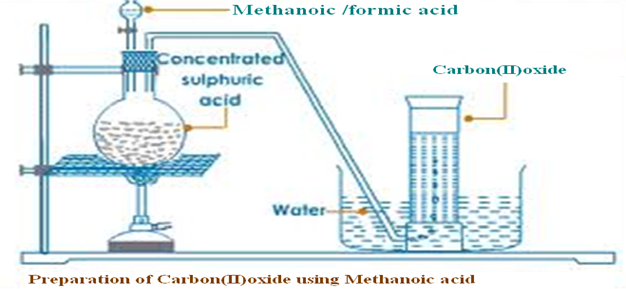

HCOOH(s) – Conc. H₂SO₄ → CO(g) + H₂O(l)

H₂CO₂(s) – Conc. H₂SO₄ → CO(g) + H₂O(l)

2. What method of gas collection is used during the preparation of carbon (II) oxide?

Over water because the gas is insoluble in water. Downward delivery because the gas is 1½ times denser than air.

3. What is the purpose of:

(i) Potassium hydroxide/sodium hydroxide in Method 1:

To absorb/remove carbon (IV) oxide produced during the reaction.

2KOH(aq) + CO₂(g) → K₂CO₃(s) + H₂O(l)

2NaOH(aq) + CO₂(g) → Na₂CO₃(s) + H₂O(l)

(ii) Concentrated sulphuric(VI) acid in Method 1 and 2:

Dehydrating agent – removes the element of water (hydrogen and oxygen in ratio 2:1) present in both methanoic and ethan-1,2-dioic acid.

4. Describe the smell of carbon (II) oxide.

Colourless and odourless.

5. State and explain the observation made when carbon(IV) oxide is bubbled in lime water for a long time.

No white precipitate is formed.

6. Dry and wet/moist/damp litmus papers were separately put in a gas jar containing dry carbon (II) oxide gas. State and explain the observations made.

Observation:

• Blue dry litmus paper remains blue.
• Red dry litmus paper remains red.
• Wet/moist/damp blue litmus paper remains blue.
• Wet/moist/damp red litmus paper remains red.

Explanation: Carbon(II) oxide gas is a molecular compound that does not dissociate/ionize to release H⁺ ions and thus has no effect on litmus papers. Carbon(II) oxide gas is therefore a neutral gas.

7. Carbon (II) oxide gas was ignited at the end of a generator as below.

(i) State the observations made in flame K.

Gas burns with a blue flame.

(ii) Write the equation for the reaction taking place at flame K.

2CO(g) + O₂(g) → 2CO₂(g)

8. Carbon (II) oxide is a reducing agent. Explain.

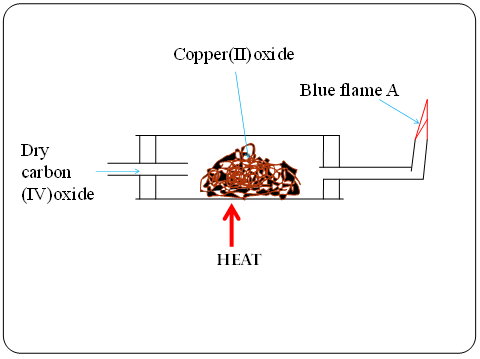

Experiment: Pass carbon (II) oxide through a glass tube containing copper (II) oxide. Ignite any excess poisonous carbon (II) oxide.

Observation: Colour change from black to brown. Excess carbon (II) oxide burns with a blue flame.

Explanation: Carbon is a reducing agent. It is used to reduce metal oxide ores to metal, itself oxidized to carbon (IV) oxide gas. Carbon (II) oxide reduces black copper (II) oxide to brown copper metal.

Chemical Equation:

CuO(s) + CO(g) → Cu(s) + CO₂(g)

(black) (brown)

PbO(s) + CO(g) → Pb(s) + CO₂(g)

(brown when hot/yellow when cool) (grey)

ZnO(s) + CO(g) → Zn(s) + CO₂(g)

(yellow when hot/white when cool)

Fe₂O₃(s) + 3CO(g) → 2Fe(s) + 3CO₂(g)

(brown when hot/cool) (grey)

Fe₃O₄(s) + 4CO(g) → 3Fe(s) + 4CO₂(g)

(brown when hot/cool) (grey)

These reactions are used during the extraction of many metals from their ores.

9. Carbon (II) oxide is a pollutant. Explain.

Carbon (II) oxide is highly poisonous/toxic. It preferentially combines with haemoglobin to form stable carboxyhaemoglobin in the blood instead of oxyhaemoglobin. This reduces the free haemoglobin in the blood causing nausea, coma, then death.

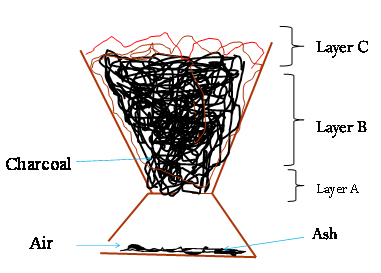

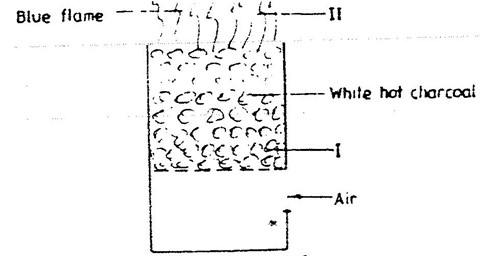

10. The diagram below shows a burning charcoal stove/burner/jiko. Use it to answer the questions that follow.

Explain the changes that take place in the burner.

Explanation: Charcoal stove has air holes through which air enters. Air oxidizes carbon to carbon (IV) oxide gas at region I. This reaction is exothermic (-∆H) producing more heat.

Chemical equation:

C(s) + O₂(g) → CO₂(g)

Carbon (IV) oxide gas formed rises up to meet more charcoal which reduces it to carbon (II) oxide gas.

Chemical equation:

2CO₂(g) + C(s) → 2CO(g)

At the top of burner in region II, carbon (II) oxide gas is further oxidized to carbon (IV) oxide gas if there is plenty of air but escapes if the air is limited poisoning the living things around.

Chemical equation:

2CO(g) + O₂(g) → 2CO₂(g) (excess air)

11. Describe the test for the presence of carbon(II) oxide gas.

Experiment: Burn/ignite the pure sample of the gas. Pass/bubble the products into lime water/calcium hydroxide.

Observation: Colourless gas burns with a blue flame. A white precipitate is formed that dissolves on further bubbling of the products.

Chemical equations:

2CO(g) + O₂(g) → 2CO₂(g) (gas burns with blue flame)

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

CO₂(g) + CaCO₃(s) + H₂O(l) → Ca(HCO₃)₂(aq)

12. State the main uses of carbon (II) oxide gas.

• As a fuel / water gas.
• As a reducing agent in the blast furnace for extracting iron from iron ore (magnetite/haematite).
• As a reducing agent in extraction of zinc from zinc ore/zinc blende.
• As a reducing agent in extraction of lead from lead ore/galena.
• As a reducing agent in extraction of copper from copper iron sulphide/copper pyrites.

(iii) Carbonate(IV) (CO₃^2-) and hydrogen carbonate(IV) (HCO₃^–)

1. Carbonate (IV) (CO₃^2-) are normal salts derived from carbonic (IV) acid (H₂CO₃) and hydrogen carbonate (IV) (HCO₃^–) are acid salts derived from carbonic (IV) acid.

Carbonic (IV) acid (H₂CO₃) is formed when carbon (IV) oxide gas is bubbled in water. It is a dibasic acid with two ionizable hydrogens.

H₂CO₃(aq) → 2H⁺(aq) + CO₃^2-(aq)

H₂CO₃(aq) → H⁺(aq) + HCO₃^–(aq)

2. Carbonate (IV) (CO₃^2-) are insoluble in water except Na₂CO₃, K₂CO₃, and (NH₄)₂CO₃.

3. Hydrogen carbonate (IV) (HCO₃^–) are soluble in water. Only five hydrogen carbonates exist: NaHCO₃, KHCO₃, NH₄HCO₃, Ca(HCO₃)₂, and Mg(HCO₃)₂.

Ca(HCO₃)₂ and Mg(HCO₃)₂ exist only in aqueous solutions.

Experiments showing the effect of heat on Carbonate (IV) and Hydrogen carbonate (IV) salts:

Experiment: In a clean dry test tube place separately about 1.0 g of the following: zinc(II) carbonate(IV), sodium hydrogen carbonate(IV), sodium carbonate(IV), potassium carbonate(IV), ammonium carbonate(IV), potassium hydrogen carbonate(IV), lead(II) carbonate(IV), iron(II) carbonate(IV), and copper(II) carbonate(IV). Heat each portion gently then strongly. Test any gases produced with lime water.

Observation:

• Colourless droplets form on the cooler parts of test tube in case of sodium carbonate(IV) and potassium carbonate(IV).
• White residue/solid left in case of sodium hydrogen carbonate(IV), sodium carbonate(IV), potassium carbonate(IV), and potassium hydrogen carbonate(IV).
• Colour changes from blue/green to black in case of copper(II) carbonate(IV).
• Colour changes from green to brown/yellow in case of iron (II) carbonate(IV).
• Colour changes from white when cool to yellow when hot in case of zinc (II) carbonate(IV).
• Colour changes from yellow when cool to brown when hot in case of lead (II) carbonate(IV).
• Colourless gas produced that forms a white precipitate with lime water in all cases.

Explanation:

1. Sodium carbonate(IV) and potassium carbonate(IV) exist as hydrated salts with 10 molecules of water of crystallization that condenses and collects on cooler parts of test tube as a colourless liquid.

Chemical equations:

Na₂CO₃·10H₂O(s) → Na₂CO₃(s) + 10H₂O(l)

K₂CO₃·10H₂O(s) → K₂CO₃(s) + 10H₂O(l)

2. Carbonate (IV) and hydrogen carbonate (IV) salts decompose on heating except sodium carbonate(IV) and potassium carbonate(IV).

(a) Sodium hydrogen carbonate(IV) and potassium hydrogen carbonate(IV) decompose on heating to form sodium carbonate(IV) and potassium carbonate(IV). Water and carbon(IV) oxide gas are also produced.

Chemical equations:

2NaHCO₃(s) → Na₂CO₃(s) + H₂O(l) + CO₂(g)

2KHCO₃(s) → K₂CO₃(s) + H₂O(l) + CO₂(g)

(b) Calcium hydrogen carbonate(IV) and magnesium hydrogen carbonate(IV) decompose on heating to form insoluble calcium carbonate(IV) and magnesium carbonate(IV). Water and carbon(IV) oxide gas are also produced.

Chemical equations:

Ca(HCO₃)₂(aq) → CaCO₃(s) + H₂O(l) + CO₂(g)

Mg(HCO₃)₂(aq) → MgCO₃(s) + H₂O(l) + CO₂(g)

(c) Ammonium hydrogen carbonate(IV) decomposes on heating to form ammonium carbonate(IV). Water and carbon(IV) oxide gas are also produced.

Chemical equation:

2NH₄HCO₃(s) → (NH₄)₂CO₃(s) + H₂O(l) + CO₂(g)

(d) All other carbonates decompose on heating to form the metal oxide and produce carbon(IV) oxide gas, e.g.

Chemical equations:

MgCO₃(s) → MgO(s) + CO₂(g)

BaCO₃(s) → BaO(s) + CO₂(g)

CaCO₃(s) → CaO(s) + CO₂(g)

CuCO₃(s) → CuO(s) + CO₂(g)

ZnCO₃(s) → ZnO(s) + CO₂(g)

PbCO₃(s) → PbO(s) + CO₂(g)

4. The following experiments show the presence of Carbonate (IV) and Hydrogen carbonate (IV) ions in a sample of a salt:

(a) Using Lead(II) nitrate(V)

I. Using a portion of salt solution in a test tube, add four drops of Lead(II) nitrate(V) solution. Preserve.

II. To the preserved solution, add six drops of dilute nitric(V) acid. Preserve.

III. To the preserved sample (that forms a precipitate), heat to boil.

IV. To the preserved sample (that does not form a precipitate), add three drops of acidified potassium manganate(VII)/lime water.

Explanations

Using Lead(II) nitrate(V)

(i) Lead(II) nitrate(V) solution reacts with chlorides (Cl^–), sulphate (VI) salts (SO₄^2-), sulphite (IV) salts (SO₃^2-), and carbonates (CO₃^2-) to form the insoluble white precipitates of lead(II) chloride, lead(II) sulphate(VI), lead(II) sulphite (IV), and lead(II) carbonate(IV).

Chemical/ionic equations:

Pb²⁺(aq) + Cl^–(aq) → PbCl₂(s)

Pb²⁺(aq) + SO₄^2-(aq) → PbSO₄(s)

Pb²⁺(aq) + SO₃^2-(aq) → PbSO₃(s)

Pb²⁺(aq) + CO₃^2-(aq) → PbCO₃(s)

(ii) When the insoluble precipitates are acidified with nitric(V) acid:

• Lead(II) chloride and lead(II) sulphate(VI) do not react with the acid and thus their white precipitates remain/persist.
• Lead(II) sulphite (IV) and lead(II) carbonate(IV) react with the acid to form soluble lead(II) nitrate (V) and produce/effervesce/fizz/bubble out sulphur(IV) oxide and carbon(IV) oxide gases respectively.

Chemical/ionic equations:

PbSO₃(s) + 2H⁺(aq) → H₂O(l) + Pb²⁺(aq) + SO₂(g)

PbCO₃(s) + 2H⁺(aq) → H₂O(l) + Pb²⁺(aq) + CO₂(g)

(iii) When lead(II) chloride and lead(II) sulphate(VI) are heated/warmed:

• Lead(II) chloride dissolves in hot water/on boiling (recrystallizes on cooling).
• Lead(II) sulphate(VI) does not dissolve in hot water thus its white precipitate persists/remains on heating/boiling.

(iv) When sulphur(IV) oxide and carbon(IV) oxide gases are produced:

• Sulphur(IV) oxide will decolorize acidified potassium manganate(VII) and/or orange colour of acidified potassium dichromate(VI) will turn to green. Carbon(IV) oxide will not.

Chemical equations:

5SO₃^2-(aq) + 2MnO₄^–(aq) + 6H⁺(aq) → 5SO₄^2-(aq) + 2Mn²⁺(aq) + 3H₂O(l)

3SO₃^2-(aq) + Cr₂O₇^2-(aq) + 8H⁺(aq) → 3SO₄^2-(aq) + 2Cr³⁺(aq) + 4H₂O(l)

Carbon(IV) oxide forms an insoluble white precipitate of calcium carbonate if three drops of lime water are added into the reaction test tube when effervescence is taking place. Sulphur(IV) oxide will not.

Chemical equation:

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

These tests should be done immediately after acidifying to ensure the gases produced react with the oxidizing agents/lime water.

Using Barium(II) nitrate(V)/ Barium(II) chloride

(i) Barium(II) nitrate(V) and/or barium(II) chloride solution reacts with sulphate (VI) salts (SO₄^2-), sulphite (IV) salts (SO₃^2-), and carbonates (CO₃^2-) to form the insoluble white precipitates of barium(II) sulphate(VI), barium(II) sulphite (IV), and barium(II) carbonate(IV).

Chemical/ionic equations:

Ba²⁺(aq) + SO₄^2-(aq) → BaSO₄(s)

Ba²⁺(aq) + SO₃^2-(aq) → BaSO₃(s)

Ba²⁺(aq) + CO₃^2-(aq) → BaCO₃(s)

(ii) When the insoluble precipitates are acidified with nitric(V) acid:

• Barium (II) sulphate(VI) does not react with the acid and thus its white precipitates remain/persist.
• Barium(II) sulphite (IV) and barium(II) carbonate(IV) react with the acid to form soluble barium(II) nitrate (V) and produce/effervesce/fizz/bubble out sulphur(IV) oxide and carbon(IV) oxide gases respectively.

Chemical/ionic equations:

BaSO₃(s) + 2H⁺(aq) → H₂O(l) + Ba²⁺(aq) + SO₂(g)

BaCO₃(s) + 2H⁺(aq) → H₂O(l) + Ba²⁺(aq) + CO₂(g)

(iii) When sulphur(IV) oxide and carbon(IV) oxide gases are produced:

• Sulphur(IV) oxide will decolorize acidified potassium manganate(VII) and/or orange colour of acidified potassium dichromate(VI) will turn to green. Carbon(IV) oxide will not.

Chemical equations:

5SO₃^2-(aq) + 2MnO₄^–(aq) + 6H⁺(aq) → 5SO₄^2-(aq) + 2Mn²⁺(aq) + 3H₂O(l)

3SO₃^2-(aq) + Cr₂O₇^2-(aq) + 8H⁺(aq) → 3SO₄^2-(aq) + 2Cr³⁺(aq) + 4H₂O(l)

Carbon(IV) oxide forms an insoluble white precipitate of calcium carbonate if three drops of lime water are added into the reaction test tube when effervescence is taking place. Sulphur(IV) oxide will not.

Chemical equation:

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

These tests should be done immediately after acidifying to ensure the gases produced react with the oxidizing agents/lime water.

(iii) Sodium carbonate(IV) (Na₂CO₃)

(a) Extraction of sodium carbonate from soda ash

Sodium carbonate naturally occurs in Lake Magadi in Kenya as trona. Trona is the double salt sodium sesquicarbonate: NaHCO₃·Na₂CO₃·H₂O. It is formed from the volcanic activity that takes place in Lake Naivasha, Nakuru, Bogoria, and Elementeita. All these lakes drain into Lake Magadi through underground rivers. Lake Magadi has no outlet.

Solubility of trona decreases with increase in temperature. High temperature during the day causes trona to naturally crystallize. It is mechanically scooped/dredged/dug and put in a furnace.

Inside the furnace, trona decomposes into soda ash/sodium carbonate.

Chemical equation:

2NaHCO₃·Na₂CO₃·H₂O(s) → 3Na₂CO₃(s) + 5H₂O(l) + CO₂(g)

(trona) (soda ash)

Soda ash is then bagged and sold as Magadi soda. It is mainly used:

• In making glass to lower the melting point of raw materials (sand/SiO₂ from 1650°C and CaO from 2500°C to around 1500°C).
• In softening hard water.
• In the manufacture of soapless detergents.
• As a swimming pool “pH increaser”.

Sodium chloride is also found dissolved in the lake. Solubility of sodium chloride decreases with decrease in temperature. Sodium chloride has lower solubility at lower temperatures. When temperatures decrease at night it crystallizes out. The crystals are then mechanically dug/dredged/scooped then packed for sale as animal/cattle feeds and seasoning food.

Summary flow diagram showing the extraction of soda ash from trona

(b) The Solvay process for industrial manufacture of sodium carbonate(IV)

(i) Raw materials

• Brine / Concentrated sodium chloride from salty seas/lakes.
• Ammonia gas from Haber process.
• Limestone / Calcium carbonate from chalk/limestone rich rocks.
• Water from rivers/lakes.

(ii) Chemical processes

Ammonia gas is passed up to meet a downward flow of sodium chloride solution / brine to form ammoniated brine / ammoniacal brine mixture in the ammoniated brine chamber.

The ammoniated brine mixture is then pumped up, atop the carbonator / Solvay tower.

In the carbonator / Solvay tower, ammoniated brine / ammoniacal brine mixture slowly trickles down to meet an upward flow of carbon(IV) oxide gas.

The carbonator is shelved / packed with quartz / broken glass to:

• Reduce the rate of flow of ammoniated brine / ammoniacal brine mixture.
• Increase surface area of the liquid mixture to ensure a lot of ammoniated brine / ammoniacal brine mixture react with carbon(IV) oxide gas.

Insoluble sodium hydrogen carbonate and soluble ammonium chloride are formed from the reaction.

Chemical equation:

CO₂(g) + H₂O(l) + NaCl(aq) + NH₃(g) → NaHCO₃(s) + NH₄Cl(aq)

The products are then filtered. Insoluble sodium hydrogen carbonate forms the residue while soluble ammonium chloride forms the filtrate.

Sodium hydrogen carbonate itself can be used:

• As baking powder and preservation of some soft drinks.
• As a buffer agent and antacid in animal feeds to improve fibre digestion.
• Making dry chemical fire extinguishers.

In the Solvay process, sodium hydrogen carbonate is then heated to form sodium carbonate/soda ash, water, and carbon (IV) oxide gas.

Chemical equation:

2NaHCO₃(s) → Na₂CO₃(s) + CO₂(g) + H₂O(l)

Sodium carbonate is stored ready for use in:

• Making glass / lowering the melting point of mixture of sand/SiO₂ from 1650°C and CaO from 2500°C to around 1500°C.
• Softening hard water.
• Manufacture of soapless detergents.
• Swimming pool “pH increaser”.

Water and carbon(IV) oxide gas are recycled back to the ammoniated brine / ammoniacal brine chamber.

More carbon(IV) oxide is produced in the kiln/furnace. Limestone is heated to decompose into calcium oxide and carbon(IV) oxide.

Chemical equation:

CaCO₃(s) → CaO(s) + CO₂(g)

Carbon(IV) oxide is recycled to the carbonator / Solvay tower. Carbon (IV) oxide is added to water in the slaker to form calcium hydroxide. This process is called slaking.

Chemical equation:

CaO(s) + H₂O(l) → Ca(OH)₂(aq)

Calcium hydroxide is mixed with ammonium chloride from the carbonator / Solvay tower in the ammonia regeneration chamber to form calcium chloride, water, and more ammonia gas.

Chemical equation:

Ca(OH)₂(aq) + 2NH₄Cl(aq) → CaCl₂(s) + 2NH₃(g) + H₂O(l)

NH₃(g) and H₂O(l) are recycled.

Calcium chloride may be used:

• As drying agent in the school laboratory during gas preparation (except ammonia gas).
• To lower the melting point of solid sodium chloride / rock salt during the Downs process for industrial extraction of sodium metal.

Detailed Summary flow diagram of Solvay Process

Practice

1. The diagram below shows part of the Solvay process used in manufacturing sodium carbonate. Use it to answer the questions that follow.

(a) Explain how sodium chloride required for this process is obtained from the sea.

Sea water is pumped/scooped into shallow ponds. Evaporation of most of the water takes place leaving a very concentrated solution.

(b)(i) Name process:

I. Filtration

II. Decomposition

(ii) Write the equation for the reaction in process:

Process I

Chemical equation:

CO₂(g) + H₂O(l) + NaCl(aq) + NH₃(g) → NaHCO₃(s) + NH₄Cl(aq)

Process II

Chemical equation:

2NaHCO₃(s) → Na₂CO₃(s) + CO₂(g) + H₂O(l)

(c)(i) Name two substances recycled in the Solvay process:

Ammonia gas, carbon(IV) oxide, and water.

(ii) Which is the by-product of this process?

Calcium(II) chloride / CaCl₂

(iii) State two uses that the by-product can be used for:

1. As a drying agent in the school laboratory preparation of gases.
2. In the Downs cell/process for extraction of sodium to lower the melting point of rock salt.

(iv) Write the chemical equation for the formation of the by-products in the Solvay process.

Chemical equation:

Ca(OH)₂(aq) + 2NH₄Cl(aq) → CaCl₂(s) + 2NH₃(g) + H₂O(l)

(d) In an experiment to determine the % purity of sodium carbonate produced in the Solvay process, 2.15 g of the sample reacted with exactly 40.0 cm³ of 0.5 M sulphuric (VI) acid.

(i) Calculate the number of moles of sodium carbonate that reacted.

Chemical equation:

Na₂CO₃(aq) + H₂SO₄(aq) → Na₂SO₄(aq) + CO₂(g) + H₂O(l)

Mole ratio Na₂CO₃ : H₂SO₄ = 1:1

Moles H₂SO₄ = Molarity × Volume = 0.5 × 40.0 / 1000 = 0.02 moles

Moles of Na₂CO₃ = 0.02 moles

(ii) Determine the % of sodium carbonate in the sample.

Molar mass of Na₂CO₃ = 106 g/mol

Mass of Na₂CO₃ = moles × molar mass = 0.02 × 106 = 2.12 g

% of Na₂CO₃ = (2.12 g × 100) / 2.15 = 98.60%

(e) State two uses of soda ash.

• In making glass / lowering the melting point of mixture of sand/SiO₂ from 1650°C and CaO from 2500°C to around 1500°C.
• In softening hard water.
• In the manufacture of soapless detergents.
• Swimming pool “pH increaser”.

(f) The diagram below shows a simple ammonia soda tower used in manufacturing sodium carbonate. Use it to answer the questions that follow:

(i) Name the raw materials needed in the above process:

• Ammonia
• Water
• Carbon(IV) oxide
• Limestone
• Brine / Concentrated sodium chloride

(ii) Identify substance A:

Ammonium chloride / NH₄Cl

(iii) Write the equation for the reaction taking place in:

I. Tower:

CO₂(g) + NaCl(aq) + H₂O(l) + NH₃(g) → NaHCO₃(s) + NH₄Cl(aq)

II. Production of excess carbon (IV) oxide:

CaCO₃(s) → CaO(s) + CO₂(g)

III. The regeneration of ammonia:

Ca(OH)₂(aq) + 2NH₄Cl(aq) → CaCl₂(s) + 2NH₃(g) + H₂O(l)

(iv) Give a reason for having the circular metal plates in the tower:

• To slow the downward flow of brine.
• To increase the rate of dissolving of ammonia.
• To increase the surface area for dissolution.

(v) Name the gases recycled in the process illustrated above:

Ammonia gas, carbon(IV) oxide, and water.

2. Describe how you would differentiate between carbon (IV) oxide and carbon (II) oxide using chemical methods.

Method I

• Bubble both gases in lime water / Ca(OH)₂.
• White precipitate is formed if the gas is carbon (IV) oxide.
• No white precipitate is formed if the gas is carbon (II) oxide.

Method II

• Ignite both gases.
• Carbon (IV) oxide does not burn/ignite.
• Carbon (II) oxide burns with a blue non-sooty flame.

Method III

• Lower a burning splint into a gas containing each gas separately.
• Burning splint is extinguished if the gas is carbon (IV) oxide.
• Burning splint is not extinguished if the gas is carbon (II) oxide.

3. Using magnesium sulphate(VI) solution, describe how you can differentiate between a solution of sodium carbonate and a solution of sodium hydrogen carbonate.

• Add magnesium sulphate(VI) solution to separate portions of a solution of sodium carbonate and sodium hydrogen carbonate in separate test tubes.
• White precipitate is formed in test tube containing sodium carbonate.
• No white precipitate is formed in test tube containing sodium hydrogen carbonate.

Chemical equation:

Na₂CO₃(aq) + MgSO₄(aq) → Na₂SO₄(aq) + MgCO₃(s)

Ionic equation:

CO₃^2-(aq) + Mg²⁺(aq) → MgCO₃(s)

Chemical equation:

2NaHCO₃(aq) + MgSO₄(aq) → Na₂SO₄(aq) + Mg(HCO₃)₂(aq)

4. The diagram below shows a common charcoal burner. Assume the burning takes place in a room with sufficient supply of air.

(a) Explain what happens around:

(i) Layer A

Sufficient/excess air/oxygen enters through the air holes into the burner. It reacts with/oxidizes carbon to carbon(IV) oxide.

Chemical equation:

C(s) + O₂(g) → CO₂(g)

(ii) Layer B

Hot carbon(IV) oxide rises up and is reduced by more carbon/charcoal to carbon (II) oxide.

Chemical equation:

C(s) + CO₂(g) → 2CO(g)

(iii) Layer C

Hot carbon(II) oxide rises up and burns with a blue flame to be oxidized by the excess air to form carbon(IV) oxide.

2CO(g) + O₂(g) → 2CO₂(g)

(b) State and explain what would happen if the burner is put in an enclosed room.

The hot poisonous/toxic carbon(II) oxide rising up will not be oxidized to carbon(IV) oxide.

(c) Using a chemical test, describe how you would differentiate two unlabelled black solids suspected to be charcoal and copper(II) oxide.

Method I

• Burn/ignite the two substances separately.
• Charcoal burns with a blue flame.
• Copper(II) oxide does not burn.

Method II

• Add dilute sulphuric(VI) acid / nitric(V) acid / hydrochloric acid separately.
• Charcoal does not dissolve.
• Copper(II) oxide dissolves to form a colourless solution.

5. Excess carbon(II) oxide was passed over heated copper(II) oxide as in the set up shown below for five minutes.

(a) State and explain the observations made in the combustion tube.

Observation: Colour change from black to brown.

Explanation: Carbon (II) oxide reduces black copper(II) oxide to brown copper metal itself oxidized to carbon(IV) oxide.

Chemical equation:

CO(g) + CuO(s) → Cu(s) + CO₂(g)

(black) (brown)

(b) (i) Name the gas producing flame A:

Carbon(II) oxide.

(ii) Why should the gas be burnt?

It is toxic/poisonous.

(iii) Write the chemical equation for the production of flame A:

2CO(g) + O₂(g) → 2CO₂(g)

(c) State and explain what happens when carbon(IV) oxide is prepared using barium carbonate and dilute sulphuric(VI) acid.

Reaction starts then stops after some time producing small/little quantity of carbon(IV) oxide gas.

Barium carbonate reacts with dilute sulphuric(VI) acid to form insoluble barium sulphate(VI) that covers/coats unreacted barium carbonate stopping further reaction to produce more carbon(IV) oxide.

(d) Using dot (•) and cross (×) to represent electrons show the bonding in a molecule of:

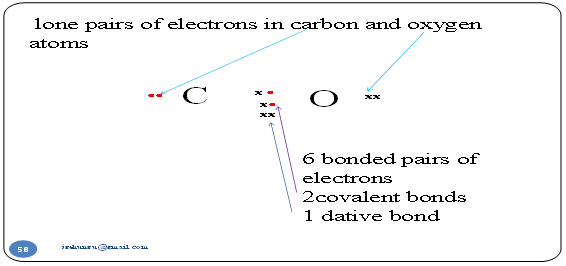

(i) Carbon(II) oxide

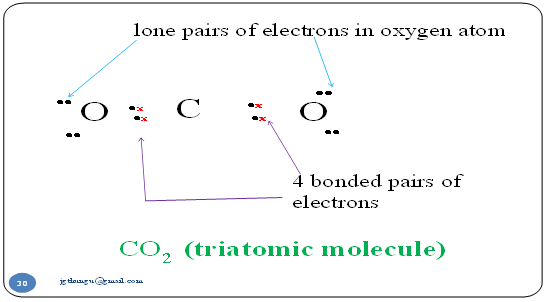

(ii) Carbon(IV) oxide

(e) Carbon (IV) oxide is an environmental pollutant of global concern. Explain.

• It is a greenhouse gas thus causes global warming.
• It dissolves in water to form acidic carbonic acid which causes “acid rain”.

(f) Explain using chemical equation why lime water is used to test for the presence of Carbon (IV) oxide instead of sodium hydroxide.

Using lime water/calcium hydroxide:

• A visible white precipitate of calcium carbonate is formed that dissolves on bubbling excess carbon (IV) oxide gas.

Chemical equations:

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

CaCO₃(s) + H₂O(l) + CO₂(g) → Ca(HCO₃)₂(aq)

Using sodium hydroxide:

• No precipitate of sodium carbonate is formed. Both sodium carbonate and sodium hydrogen carbonate are soluble salts/dissolve.

Chemical equations:

2NaOH(aq) + CO₂(g) → Na₂CO₃(aq) + H₂O(l)

(No white precipitate)

Na₂CO₃(aq) + H₂O(l) + CO₂(g) → 2NaHCO₃(aq)

(g) Ethan-1,2-dioic acid and methanoic acid may be used to prepare small amounts of carbon(II) oxide in a school laboratory.

(i) Explain the modification in the set up when using one over the other.

Before carbon(II) oxide is collected:

• When using methanoic acid, no concentrated sodium/potassium hydroxide is needed to absorb carbon(IV) oxide.
• When using ethan-1,2-dioic acid, concentrated sodium/potassium hydroxide is needed to absorb carbon(IV) oxide.

(ii) Write the equation for the reaction for the formation of carbon(II) oxide from:

I. Methanoic acid:

HCOOH(aq) → CO(g) + H₂O(l)

II. Ethan-1,2-dioic acid:

HOOCCOOH(aq) → CO₂(g) + CO(g) + H₂O(l)

(h) Both carbon(II) oxide and carbon(IV) oxide affect the environment. Explain why carbon(II) oxide is more toxic/poisonous.

• Both gases are colourless, denser than water, and odourless.
• Carbon(II) oxide is preferentially absorbed by human/mammalian haemoglobin when inhaled forming stable carboxyhaemoglobin instead of oxyhaemoglobin. This reduces the free haemoglobin in the blood leading to suffocation and quick death.
• Carbon(IV) oxide is a greenhouse gas that increases global warming.
• Carbon(II) oxide is readily oxidized to carbon(IV) oxide.

6. Study the flow chart below and use it to answer the questions that follow.

(a) Name:

(i) The white precipitate A: Calcium carbonate

(ii) Solution B: Calcium hydrogen carbonate

(iii) Gas C: Carbon(IV) oxide

(iv) White residue B: Calcium oxide

(v) Solution D: Calcium hydroxide / lime water

(b) Write a balanced chemical equation for the reaction for the formation of:

(i) The white precipitate A from solution D:

Ca(OH)₂(aq) + CO₂(g) → CaCO₃(s) + H₂O(l)

(ii) The white precipitate A from solution B:

Ca(HCO₃)₂(aq) → CO₂(g) + CaCO₃(s) + H₂O(l)

(iii) Solution B from the white precipitate A:

CO₂(g) + CaCO₃(s) + H₂O(l) → Ca(HCO₃)₂(aq)

(iv) White residue B from the white precipitate A:

CaCO₃(s) → CO₂(g) + CaO(s)

(v) Reaction of white residue B with water:

CaO(s) + H₂O(l) → Ca(OH)₂(aq)
