FARM POWER AND MACHINERY QUESTIONS



 This topic entails the following:

  • Sources of farm power
  • Systems of a tractor
  • Tractor implements, uses and maintenance
  • Animal drawn implements uses and maintenance
  • Tractor servicing and maintenance practices

 The following relevant questions and their answers in this topic will greatly motivate and

 help the user to comprehend and understand the required concepts and practices:



1.  Give four farm operations powered by engines



2.  a) Describe the maintenance practices required on a tractor before it is put to daily use

 b) Outline the factors that influence the power output by a draught animal



3.  State two uses of gear box in a tractor

4.  State two uses for which wind power is harnessed

5.  Name three implements that are connected to the power take-off shaft

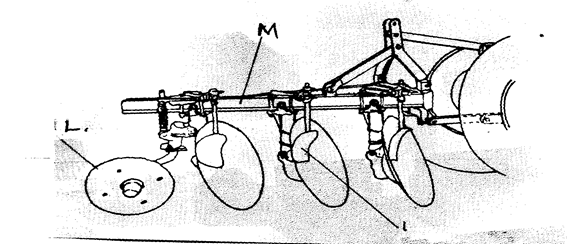

6.  Below is a farm implement, study it keenly and answer the questions that follow:-

ecolebooks.com

Image From EcoleBooks.com













Image From EcoleBooks.com













 (a) Name the farm implement drawn above

 (b) Identify the parts labelled L and M above

 (c) Give the function of the part labeled M

 (d) State the field condition under which the implement can work better than the others  (½mk)





7.  (a) Explain the factors that a farmer should consider in ensuring fast and efficient cultivation

by oxen

 (b) Outline the importance of lubrication system in a tractor

 (c) State the daily maintenance and servicing of a tractor



8.  State the functions of the following parts of power transmission in a tractor:

 (i) Hydraulic system

  (ii) Draw bar

 (iii) Propeller shaft

 (ii) State three sources of tractor hire service



9.  (i) What is a tractor hires services  (1mk)

 (ii) State three sources of tractor hire service  (1½mks)

































10.  The diagram below represents an assembled differential of a tractor. Use it to answer the

Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.com questions that follow:-







Image From EcoleBooks.com

























 (a) Name the parts labeled A, B, C and D

 (b) State two functions of differential system of a tractor

 (c) Give two reasons why wheel skidding of a tractor is not allowed



11.  State four sources of power in the farm



12.  Give the four strokes of a four stroke cycle tractor engine



13.  State four factors which ensure efficient working by oxen in the farm



14.  Mention two sources from which farmers can hire tractors

Image From EcoleBooks.com

15.  (a) Below is a diagram of a farm implement





















 (i) State the use of the implement shown above

 (ii) Name the parts labeled A, B, C, and D

 (iii) State two methods of increasing the depth of penetration of the implement



16.  State four ways through which a farmer would ensure maximum power output from

ploughing animals



17.  State three advantages of a disc plough over mould board plough



18.  a) Explain the differences between petrol and chisel engine

 b) Describe components of transmission system of a tractor



19.  Name four systems of a tractor engine



20.  Give one function of the clutch



21.   State two adjustments that should be carried out on a tractor – mounted mould board plough

 in preparation for ploughing

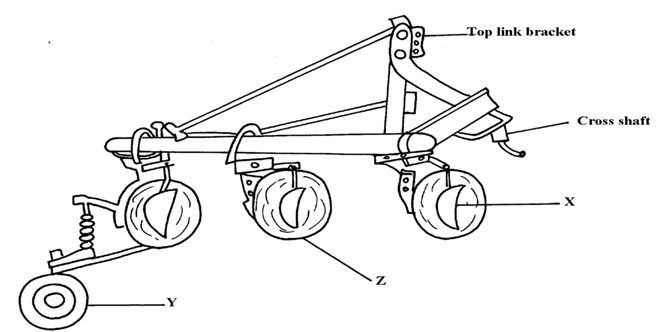

  1. Image From EcoleBooks.comThe diagram below illustrates a farm implement. Study it and answer the questions that follow











































a) Identify the implement

b) Name the parts labeled X, Y and Z

 c) State three maintenance practices that are carried out on a disc plough



23.  a) Describe the operational differences of a disc plough and mould board plough

 b) Explain six marketing problems affecting dairy farming in Kenya

 c) State four reasons for culling a boar



24.  Name the role of the following parts of a mould board plough

 a) Share .

 b) Mould board

 c) Land side….



25.  a) State five maintenance practices of a mould board plough

b) Explain five structural and functional differences between the petrol and diesel engines c) List five uses of farm fences



26.  Give two uses of ox-drawn fine harrow



27.  List four care and maintenance of a tractor battery

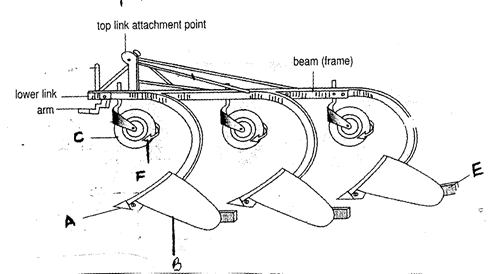

28.  Study the diagram of a farm implement shown below and answer the questions that follow:

Image From EcoleBooks.com







Image From EcoleBooks.comImage From EcoleBooks.com



























 (a) Identify the farm implement illustrated above

 (b) Label parts A, B and C

 (c) Outline the functions of the parts labeled E and F

  (d) Give two care and maintenance of the above implement



29.  Outline six uses of live fences on the farm



30.  List two possible causes of over heating in a tractor engine



31.  List two events occur during induction stroke in a four stroke engine

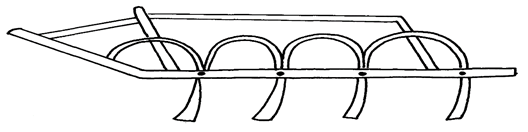

Image From EcoleBooks.com32.  i) the diagram below shows a tractor drawn implement.

















a) Name the implement

b) Give two uses of the implement above

 c) State three maintenance practices carried out on the above implement.   ii) Below is an illustration of a farm equipment. Study it and answer questions that follow

Image From EcoleBooks.com













Image From EcoleBooks.com

Image From EcoleBooks.com

Image From EcoleBooks.com





 a) Identify the farm equipment illustrated above b) What is the use of the equipment  c) Name the parts labelled W, X and Y d) What is the functions of Y on the equipment



33.  a) Explain the factors that influence the power output of farm animals

 b) State the importance of farm fences

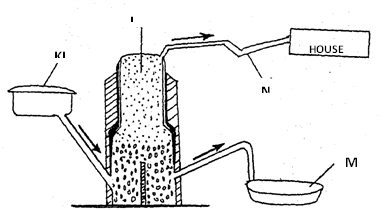

34.  Study the illustration of a biogas digester plant and answer the questions that follow.

Image From EcoleBooks.com























a) Name the major component of biogas that is trapped in part L above

b) Give the name of the material deposited in part labeled M and its use

c) What is the component of K in the biogas production

d) Give three disadvantages of biogas as a source of farm power



35.  Other than hydro-electricity mention two sources of electrical energy which can be available

 for use in the farm



36.  a) Describe the maintenance practices required on a tractor before it is put to daily use

  b) Discuss the factors that influence the power output by a draught animal



FARM POWER AND MACHINERY ANSWERS

1.  Farm operations powered by Engines.

 – Ploughing and harrowing / land preparations;

 – Transporting farm produce

 – Spraying of herbicides/ pesticides.

 – Mowing the grass;

 – Lighting of homes;

 – Pumping water for irrigation.

 – Harvesting farm produce

 – Machine milking.



2.  (a) Maintenance practices required on a tractor before setting out to work.

 – Check the engine oil daily using dip stick.

 – Check fuel and add if necessary.

 – Nuts and bolts are tightened whenever they loosen.

 – Water level in the radiator be checked and added if necessary.

 – Battery electrolyte be checked daily and if below level, top up be done using distilled water.

 – Greasing be done on the bearings.

 – Tyre pressure be checked and if low, should be added.

 – Fan belt tension be checked.

 – Break shaft bearing should be greased.

 – Ensure break fluid and clutch fluid levels are maintained.

 – Sediments from the sediment bowls should be removed.

 – Check battery terminals and grease.

 – Oil cleaner be cleaned.

 (b) Factors that influence power output by a draught animal.

 – Age – Mature animals produce more power output than young ones.

 – Breed & Type – Indigenous animals are more hardy than exotic.

 – Training Level – better trained animals have better work output.

 – Body Weight – A draught animal can pull 10 – 20% of its body not for 6 – 8 hours.

(The bigger the animal, the more output).

 – Harnessing of the animal – well harnesses animal is more efficient at work than poorly

harnessed work.

  • Condition of working equipment on well maintained equipment have higher work output with the draught animal than poorly maintained ones.
  • Environmental/ Ambient temperature – Cool temperatures lead to higher work output with a draught animal than high temperature.
  • Health Status – A healthy draught animal has higher workout put than a sick animal.



3.  Uses of a gearbox:-

  • Stops the tractor without switching off engine
  • Provides different forward speeds
  • Enables reversing  ( ½ x 2pts = 1mk)



4.  Two uses for which wind power is harnessed

  • To pump water
  • To generate electricity
  • For processing /winnowing of grains e.g. millet, rice e.t.c

5.  Name three implements that are connected to the power take-off shaft

  • Sprayers
  • Rotarators
  • Reciprocating  (1mk each = 3mks)



6.  (a) Implement identity – Disc plough

 (b)   L – Furrow wheel   M – Beam

 (c) – Adds weight

  • Forms attachment of all the other parts  ( ½ x 1pt = ½ mk)

 (d) Where there are hidden obstacles e.g. stumps , rocks e.t.c

– Heavy soils



7.  (a) Factors that a farmer should consider in ensuring fast and efficient cultivation by oxen

  • A well trained personnel
  • Using well trained animals
  • use of efficient implement
  • Avoiding overworking the animals (allow them to rest
  • Good working environment should be created for the animals
  • Animals should be handled well
  • Feeding the animals properly
  • Using of males animals to do the work
  • Using healthy animals only to do the work  (1mk x 8pts = 8mks)



 (b) The importance of lubrication system in a tractor

  • Prevents rusting i.e when oiling is done
  • It pacts as a cleaning agent as it washes off the dirt, dust
  • Reduces the heat/cooling
  • Increases efficiency of the machine and reduces the rate of wear and tear on moving parts



(c) The daily maintenance and servicing of a tractor

  • Checking of maintenance and servicing of a tractor
  • Checking of engine oil by use of dip stick and add if low
  • The level of electrolyte in battery should be checked daily and add if low
  • Inspect the H2O level in radiator and add if low
  • Loose nuts and bolts should be tightened
  • Tyre pressure should be checked and added if low
  • Level of fuel should be checked and added if low
  • Removal of large sediments from the sediment bowl
  • Greasing should be done by use of grease on nipples of bearings
  • Fan belt tension should be checked to ensure that it deflects between 1.9–2.5cm when pushed
  • Break shaft should be greased
  • Maintain break fluid level  (1mk each for any 9pts= 9mks)





8.  (i) Hydraulic system-raise and lower mounted implements like plough

(ii) Draw bar-attachment of trail implement

(iii) Propeller shaft-connect gearbox to differential which has axle to drive wheel

  making tractors to move backwards or forward.(@ 1mkx3=3mks



9.  (i)Hiring of tractors and implements by farmers who do not have them(correct definition=

 (ii) three sources of tractor hire service  (1½mks)

  • Government tractors hire service
  • Private contractors
  • Individual farmers
  • Cooperative societies (any 3x ½ =1 ½ mks)



    10.  (a)  A-ring pinion gear

 B-bevel side gear

 C-wheel exle

 D-drive pinion gear

(b) State two functions of differential system of a tractor  (2mks)

  • Change direction of drive to right angle for power to be transmitted to rear wheel
  • Enable rear wheel to travel faster/slower than other when negotiation corner (1×2=2mks)

(c) Give two reasons why wheel skidding of a tractor is not allowed  (1mk)

  • To make tyres last longer
  • To make it easy to control the tractor

    11.  Wind , water, human, animal, biogas, wood fuel, charcoal, kerosene, fossil fuel, petroleum,

    ethane (natural gas), hydroelectric power, nuclear , Geothermal, storage battery

12.  Induction, compression, power exhaust

13.  – Keeping them healthy

– Proper feeding

– Proper handling e.g not over working /not beating them

– Proper training

– Not overloading them

14.  Individual owners

– Government tractor hire service

– Co-operative societies

– Companies

15.  (i) Primary cultivation

A- To link bracket

B _ scrapper

C- Standard/disc hanger

D – Rear finow wheel / thrust wheel 2mks

(ii) Adding weight on beam

  • exerting more hydraulic force
  • – Sharpen the disc blade
  • – Increased space between the disc
  • – Loosen the area of disc contact with the soil
  • Increase the cutting angle

16.  four ways through which a farmer would ensure maximum power output from

 Ploughing animals

  • Feeding and watering animals well before working
  • Training animals on draft techniques
  • Allowing animals to rest well after a day work/avoid overworking the animals
  • Keeping the animals in good health while working

17.  three advantages of a disc plough over mould board plough

  • Tears and wear is less
  • Needs less power to pull
  • It can ride over obstacle

18.  a) the differences between petrol and diesel engine

Diesel

Petrol

i)use diesel as fuel

ii)has injector pump

iii)has no spark plug

iv)fuel is ignites by compression

v)air and fuel first meet in cylinder before ignition

vi)specific fuel consumption is low

vii)higher air compression ratio

viii)air/fuel ratio is not constant

ix)has sediment bowls

x)operation cost is lower

xi)it is heavy in weight and suited to heavy machines

xii)produces a lot of smoke

Use petrol as fuel

Has carburetor

Has spark plug for ignition

Fuel ignites by spark plug

Air and fuel meet in carburetor before ignition



Specific fuel consumption is high

Lower air compression ratio

Air/fuel ratio is constant

No sediments bowls

Operation cost is high

Operation cost is high light in weight and suited to light machines

Produce minimal smoke

 b) Describe components of transmission system of a tractor

i) Clutch- It disconnects the engine from the rest of the transmission system. It is mounted on the

flywheel and made up of pressure plates and clutch plate in the middle. The clutch

allows the driver to temporarily interrupt the power flow from the engine to the fear

box and shift from one gear to the other

ii) Gear- These are toothed wheels. They provide towards speed or reverse. The set of gears are

housed in the gear box.

iii) Differential- it is located between the wheel axial. it enables one wheel to move faster than the

other while negotiating a corner

iv) Driving axial- The final drive is brought about by driving axial which gets the power from the

differential.

When the axial rotates they rotate the wheels making the tractor to move either engorged gear

v. Wheels- Comprises of the tyres, tubes rims nuts and bolts. They must be inflated to the

movement of the tractor

19.

  • Fuel system
  • Electrical system
  • Cooling
  • Lubrication
  • Transmission
  • Ignition
  • Hydraulic



20.  Functions of clutch

  • Connects or disconnects the drive shaft to or from the engine
  • Facilitates smooth and gradual take off
  • Provides power from the engine to the P.T.O (Power Take Off)

21.  2 adjustment on mould board plough

  • Adjust the plough depth
  • Front furrow depth
  • Lowering/ raising ploughing pitch
  • Front furrow width

22.  a) Disc plough reject disc alone

 b) X – Disc scrapper Y- Rear wheel/ furrow wheel

Z – Disc



 c)  – Replace broken discs

  • Clean plough after use reject wash plough
  • Lubricate hubs and furrow wheel bearing/ moving parts reject movable parts
  • Lighten loose nuts and bolts
  • Store in a cool dry place
  • Apply old engine oil to prevent rusting during long storage/ paint implement

23.  a) Differences operational

Disc plough

Mould board plough

Can be used in fields with obstacles

Cannot be used in fields with obstacles

Ploughs/ cuts at varying depths

Ploughs/ cuts at constant depths or confirm depth

Requires less skills to operate

Requires more skills to operate

Works well in sticky soils

Does not work well in sticky soils

Rotates and not easily broken since rolls over obstacles

Easily broken by obstacles

Requires more harrowing

Requires fewer harrowing

Poor furrow slice inversion

Proper furrow slice inversion

Does not require constant replacement of parts

More power to pull

b)

  • Poor communication network/ poor infrastructures
  • Lack of cooling/ handling facilities/ processing facilities
  • Competition with non- dairy products/ cheap imported dairy products
  • Prevalence of Zoonotic diseases
  • Inefficient/ poor management of marketing society/ dairy boards
  • Late/ non- payment by marketing agents/ exploitation by marketing agents/ middle men
  • Lack of capital to finance marketing activities
  • Price fluctuation due to changes in supply
  • Lack of market information

c) Reasons for culling livestock

  • Old age
  • Poor health
  • Low libido/ infertile
  • Physical deformities
  • Hereditary defects
  • To avoid inbreeding

24.  a) Share-makes a horizontal cutting on the furrow slice

  b) Mould board-completes the turning of the furrow slice

  c) Land side-stabilizes the plough by absorbing the side pressure ( ½ x3=1 ½ mks)

25.  a) five maintenance practice of a mould board plough

  • Lubricate the moving pests
  • Sharpen blunt share
  • Tighten bolts and nuts
  • Clean the plough after use
  • Coat the unpainted parts with old engine oil before any storage
  • Replace worn out parts (1×5=5mks)

  b) five structural and functional differences between the petrol and diesel engines

Petrol engine

Diesel engine

i)has a carburetor

ii)fuel and air mixed in the carburetor

iii)fuel ignited by an electric spark



iv)produces little smoke

v)is light in weight

i)Has an injector pump

ii)Fuel and air mixed within the cylinder

iii)fuel ignited by compression of air and fuel

mixture in the cylinder

iv)produces a lot of smoke

v)relatively heavy

  c) List five uses of farm fences

  • keep of wild life ,predation and intruders
  • demarcates boundaries
  • separate crop field from pasture land
  • divide pasture land into paddock
  • control movement of animals and people within the farm and prevent formation of unnecessary pests
  • control disease and parasites helps in isolate sick animals
  • helps in controlling breeding
  • provide security
  • act as wind break (1×5=5mks)

26.  Uses of ox-dram tine harrows

  • Leveling of seed bed
  • Breaking large soils clod
  • Mixing up soil with organic matter
  • Destroy weeds
  • Cover seeds

Collecting trash

27.  Care and maintenance of tractor battery

  • Maintain correct level of electrolyse by topping up with distilled water
  • Scrap corroded terminals and smear with grease
  • Fix battery tightly in box to avoid spillage and damage
  • Charge regularly and periodically
  • Under storage empty battery and keep it upside down
  • Generator belt should always be functioned to charge

28.  a) moulboard

 b)  A – Shaire B- Mouldboard C- Disc coulter

 c)  E- Stabilize the plough

– absorb side thrust by pressing against furrow wall

F- Scrapes of mind from disk coulter

 d) Care and maintenance

  • Lubrication of moving parts
  • Loose nuts and bolts should be tightened
  • Clean after use/ remove trash and wet soil
  • For long shortage paint with old engine to prevent
  • Replace/ repair worn out parts

29.  Six uses of live fences

  • Thorn species prevent wild animals and other invaders into the farm
  • Tall varieties act as wind breakers
  • Add aesthetic value to the homestead
  • Roots holds soil firmly controlling soil erosion
  • Species such as lantana canara can be used to feed livestock
  • Provide shade to livestock and man
  • Trimmed branches can be used as organic manure, wood fuel
  • Some species have medicinal value

30.  two possible causes of over heating in a tractor engine

  • Slack fan belt
  • Low oil level

Low water level in radiator

  • Deformed / broken yolk.

31.  two events occur during induction stroke in a four stroke engine. (1mk)

  • Piston moves down from TDC
  • Exhaust valve is closed
  • Inlet valve is open
  • Air / fuel mixture get into combustion chamber
  • Piston reaches BDC. (4x ½ = 2mks)

32.  i) a)  Spike tooth harrow (1×1 =1 m k)

 b) two uses of the implement above.(2mks)

  • Level seed bed
  • Break soil clods
  • Stir soil
  • Destroy weeds
  • Incorporate fertilizer in the soil
  • Removing trash from the field. (2×1 = 2)

 c) three maintenance practices carried out on the above implement.(3mk)

  • Replace worn out parts
  • Clean after work
  • Tighten loose bolts and nuts
  • Oil unpainted parts for storage. (3×1 = 3mks)

 ii) a) Bucket pump /stir – up pump (1×1 = 1mk)

  b) Spraying acaricide on livestock (1×1 =1mk)

  c) W – Nozzle X – Trigger Y – Pail /bucket

d) For holding acaricide solution during spraying. (1×1 = 1)

33.  a) the factors that influence the power output of farm animals (8mks)

  • Training
  • Level of nutrition
  • Harnessing animals properly
  • Body weight
  • Age-mature ones produce more power than young
  • Handling of animals

 b) State the importance of farm fences (12mks)

  • demarcates farm land from that of neighbours
  • keeps wild animals and other intruders from entering the farm
  • separates crop field from pastures facilitating mixed cropping
  • used to divide pastures into paddocks facilitating controlled grazing
  • controls movement of animals and people preventing formation of unnecessary paths in the farm
  • helps control spread of diseases and parasites in the farm by keeping wild animals away
  • helps isolate sick animals from the rest of the herd preventing the spread of diseases
  • enables farmer to control breeding rearing different animals in different paddocks
  • provide security to the homestead
  • they have aesthetic value
  • live fences act as animal feeds
  • live fences act as wind breakers (1×12=12mks)

34.  (a) Methane

 (b) slurry

 (c) Fresh mixture of waste material

 (d) Initial capital investment is high hence very expensive

 Requires management skills that may not be available & it available expensive

 Requires large number of farm animals to produce animal waste.

35  . – Solar panels

 – Petrol and diesel generators

 – wind mills

 – steam production form boilers using organic or inorganic

36.  (a) Check engine oil, fuel, water level, electronic in the battery

 -Tighten nuts and bolts

 -Apply grease

 -Remove large sediments from sediment bowl

 -Check the tyre pressure and inflated or deflated appropriately

 -Fan belt tension should be checked to ensure it defients between 1.9cm to 2.5cm when punched

 -Grease the brake shaft and maintain brake fluid level

 (b) -Health of animal

  -Level of feeding

  -Animal slpeciesa

  -Care and handling




Share this:


EcoleBooks | FARM POWER AND MACHINERY QUESTIONS AND ANSWERS

subscriber

1 Comment

  • EcoleBooks | FARM POWER AND MACHINERY QUESTIONS AND ANSWERS

    Boka Tadesse Ejigu, April 14, 2024 @ 8:15 am Reply

    It is interesting attatchments ,go on it helps us to publish and understand farm mac hinery

Leave a Reply

Your email address will not be published. Required fields are marked *

Accept Our Privacy Terms.*
