21. Electrochemistry Questions and Answers

Electrochemistry Questions

1. The setup below was used to carry out the electrolysis of Magnesium sulphate solution using

inert electrodes.

 (i) Name a suitable pair of electrode that can be used in the above process.

 (ii) State and explain the changes on the concentration of magnesium sulphate solution as

the process proceeds.

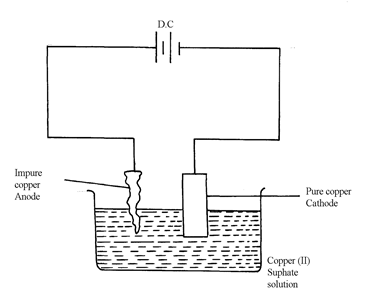

2. During purification of copper by electrolysis, 1.48g of copper were deposited when a

current was passed through aqueous copper (II) sulphate for 2 ½ hours. Calculate the

amount of current passed.

 (Cu = 63.5 1Faraday = 96500C)

3 The diagram below represents a set-up that can be used for the electrolysis of dilute sulphuric acid

 (a) Name the electrodes A and B

 (b) Write an equation for the reaction taking place at electrode B

 (c) What happens to the concentration dilute sulphuric acid as the reaction continues?

4. In an electrolysis, a current of 200A was passed through molten oxide of metal Q

for 58 minutes and 64.8g of the metal deposited. Determine;

i) Charge on metal Q

ii) The volume of oxygen gas produced at standard temperature and pressure

Q = 27 IF = 96500C, molar gas volume stp =22.4dm³

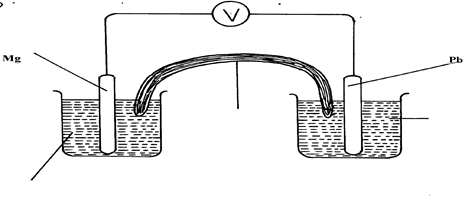

5. Consider the reduction potentials below.

Pb²⁺_(aq) + 2e Pb_(s) = -O.13V

Mg²⁺_(aq) + 2e Mg_(s) = -O.76V

a) Write the overall Redox reaction that takes place when the above half cells are connected.

b) Determine the E^ value of the above cell.

(c) Calculate which group of the periodic table is element F?

6. An oxide of element F has the following formula:- F₂O₅

(a) Determine the oxidation state of F

7. The table below gives elements and their atomic numbers. Answer the questions that follow:

 Compare the electrical conductivity of sodium and aluminium. Explain

8. What mass of Zinc will be deposited from a solution of Zinc (II) Chloride when a current

of 3A is passed through the Zinc (II) Chloride solution during electrolysis for 50minutes?

(Zn= 65, 1 Faraday = 96500C)

9. Study the flow chart below and answer the questions that follow:

 (a) Name gas Q …………………………………………………………… .

 (b) With the help of diagram, describe how step (V) is carried out

10. Nitrogen and hydrogen react reversibly according to the equation:-

 N_2(g) + 3H_2(g) 2NH_{3(g); }H = -92kjmol^-1

 The energy level diagram for the above reaction is shown below:-

 (a) How would the yield of ammonia be affected by:

(i) A decrease in temperature

(ii) An increase in pressure

 (b) How does a catalyst affect reversible reaction already in equilibrium?

 (c) On the above diagram, sketch the energy level diagram that would be obtained when

iron catalyst is added to the reaction

11. Study the electrode potentials in the table below and answer the question that follow:

 (Letters are not the actual symbols of elements)

(E^ /Volts)

H²⁺ _(aq) + 2 e^– H_(s) +0.34

Z²⁺ _(aq) + 2e^– Z_(s) -2.38

G⁺_(aq) + e^– G _(s) +0.80

T²⁺ + 2e^– T_(s) – 2.87

(a) Which one is the strongest reducing agent?

(b) Write the ionic equation for the reaction that takes place when Z is dipped in a solution

of G⁺ ions

(c) Calculate the E^
cell value of the reaction in 22.(b) above

12. When a hydrocarbon was completely burnt in oxygen, 4.2g of Carbon (IV) oxide and 1.71g

of water were formed. Determine the empirical of the hydrocarbon. (H=10 C=12.0 O=16.0)

13. During electrolysis of aqueous copper (II) sulphate 144,750 coulombs of electricity were used.

 Calculate the mass of copper metal that was obtained (Cu =64 1Faraday = 96,5000 coulombs)

14. Sodium metal reacts with oxygen according to the following equation:-

6Na_(s) + 2O_2(g) Na₂O_2(s) + 2Na₂O_(s)

 State one physical and one chemical difference between Na₂O₂ and Na₂O

 Physical difference ……………………………………………

 Chemical difference……………………………………

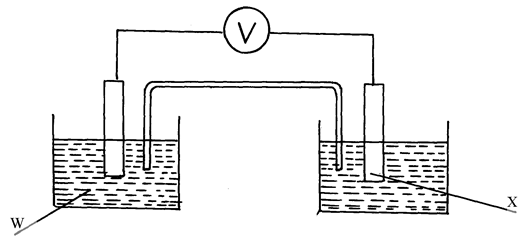

15. The diagram below shows an electrochemical cell:

1. Give the formula of the possible salt L

(b) On the diagram show the direction of movement of electrons

(c) Write the cell representation

6. The reaction blow is a redox reaction

MnO₄^–_(aq) + 8H⁺_(aq) + 5Fe²⁺_{(aq) )}

 (a) Identify the species reduced. Explain

(b) Write the equation for the oxidation reaction

17. Consider the cell diagram below

 Cr_(s)/Cr³⁺_(aq) // Fe²⁺_(aq)/Fe_(s) E^θ = + 0.30V

i) Write the overall cell reaction for the above electrochemical cell

 ii) Given that E^θ value for Fe²⁺_(aq) /Fe_(s) is -0.40V,calculate the E^θ value for Cr³⁺_(aq)/Cr_(s)

18. (a) Describe the process by which Trichloro fluoromethane Nitrogen is obtained from

air on a large scale

(b) Study the flow chart below and answer the questions that follow

(i) Identify gas J

(ii) Using oxidation numbers, show that ammonia is the reducing agent in step VI

(iii) Write the equation that occurs in step V

(iv) Give one use of ammonium nitrate

(c) The table below shows the observations made when aqueous ammonia was added to

cations of elements E, F and G until in excess

(i) Select the cation that is likely to be Zn²⁺ ………………………………

(ii) Given that the formula of the cation of element E is E²⁺, write the ionic equation for the

reaction between E²⁺ and aqueous ammonia

19. a) Study the standard electrode potential for the half-cells given below and answer the questions that follow.(The letter do not represent the actual symbols of the elements)

E^θ
Volts

N⁺_(aq) +e^– N(s) -2.92

J⁺_(aq) + e^– J_(s) +0.52

K⁺_(aq) + e^– ½ K_2(g) 0.00

½ G_2(g) + e^– G-_(aq) +1.36

M²⁺_(aq) + 2e^– M_(s) -0.44

i) Identify the strongest oxidizing agents. Give a reason for your answer

ii) Which two half-cells would produce the highest potential difference when combined?

iii) In the space below draw a complete electro chemical cell of the two-half cells mentioned

in (ii) above

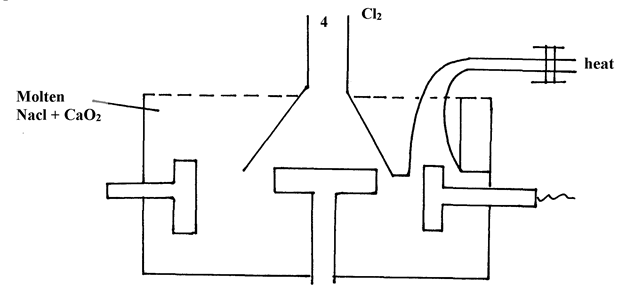

20. Below is a simplified diagram of the Down’s cell for the extraction of sodium. Study it

and answer the question that follow:-

(i) From which substances are the electrodes made?

thode…………………………………………………………….

Anode……………………………………………………………………

(ii) State and explain why sodium chloride is mixed with calcium chloride

(iii) What is the role of the iron gauze

(iv) Write equations for the reaction at :-

cathode

 anode

(v) Which property of sodium makes it possible to collect it as shown?

(b) When a current of 6.42 A was passed through an electrolyte Y²⁺ ions for 10minutes,

2.74 of Y were deposited

 (i) Calculate the quantity of electricity passed in the experiment

 (ii) Determine the relative atomic mass of Y (1Faraday = 96000 coulombs)

21. (a) The table gives the standard redox potentials for a number of half reactions. Use it to answer

the questions that follow:-

(E^/Volts)

Zn²⁺ _(aq) + 2e^– Zn_(s) -0.76

Fe²⁺ _(aq) + 2e^– Fe_(s) -0.44

I²⁺ _(l) + 2e^– 2I^– _(aq) +0.54

Fe³⁺ _(aq) + e^– Fe²⁺_(aq) +0.77

Ag⁺ + e^– Ag_(s) +0.88

 (i) Relative to which half-cell reaction are the above electrode potentials expressed?

 (ii) Calculate the e.m.f of the cell made up by combining the I_2(l) /2I^–_(aq) electrode and

Zn²⁺_(aq)/Zn_(s) electrode

 (ii) Which of the substances listed in the above table is :-

I. The strongest oxidising agent

II. The strongest reducing agent

 (iv) Which substances could be used to convert iodide ions to iodine? Write balanced equations

for any possible conversions

22. a) The standard electrode potential for the elements chlorine and magnesium are:-

 Cl_2(g) + 2e^– 2Cl^–_(aq) E^θ + 1.36V

 Mg²⁺_(aq) + 2e^– Mg_(s) E^θ – 2.36V

i) Which one of the two elements will act as an oxidizing agent? Explain.

ii) Calculate the electromotive force of a cell where the overall reaction is:-

Cl_2(g) + Mg_(s) MgCl_2(s)

 b) The table below gives the reduction standard electrode potentials for divalent metals.

The letters are not their actual symbols. Use them to answer the questions that follow:-

i) Select two metals whose half cells can produce the highest voltage when connected.

ii) Draw a well labelled diagram of electrochemical cell formed by half-cells of metals P and Q

iii) Calculate the voltage produced by the cell in (ii) above

c) When nitrate solution of a certain metal X was electrolysed, 1.174g of metal X was

deposited by a current of 4 amperes flowing for 16minutes. Determine the formula of

the metal nitrate. (1F= 96,500, R.A.M of X= 59)

23. Study carefully the information given below and answer the questions that follow:-

(a) Identify the substances represented by the letters

1. Give equations for the reactions in which:-

(i) Substance B is formed from the solution of A on electrolysis

(ii) Substance B is formed from solution A when reacted with E

(c) Give one use of gas C

(d) Name the ion responsible for the deep blue solution

24. (a) Study the standard electrode potentials for the elements given below and answer the questions

that follow. The letters do not represent the actual symbols of the elements

E^

 Q +
2e^– 2Q- _(aq) +2.87

 R_2(g) + 2e^– 2R-(aq) +1.36

 S²⁺
_(aq) + 2e^– S (s) + 1.23

 2T⁺_(aq) + 2e^– T₂(g) 0.00

 U²⁺_(aq) + 2e^– U(s) -0.13

 V²⁺_(aq) + 2e^– V(s) -0.76

(i) What is the E^ value of the weakest reducing agent?

(ii) Which element is likely to be hydrogen? Give a reason for your answer

(iii) Draw a diagram for the cell that would be obtained when the half cell of elements

S and V are combined

(iv) Calculate the e.m.f of the electrochemical cell in a (iii) above

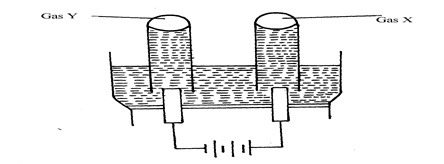

 (b) The diagram below represents the electrolysis of dilute sulphuric (VI) acid

(i) Name the gases X and Y

 (ii) Write ionic equation for the formation of gas X

(iii) At what electrode does reduction take place? Explain your answer

(iv) Name the most suitable electrodes for this experiment. Explain your answer

25. The flow chart below shows an analysis of mixture R that contains two salts. Study it

and answer the questions that follow:-

 (i) Write two ionic equations for the reactions between the cation in filtrate X and aqueous

ammonia (Ammonium hydroxide)until in excess

 (ii) What conclusion can be drawn from Step IV only? Explain

 (iii) What observation would indicate the presence of a NO₃^– ion in step I?

 (iv) Write the formula of the anion in residue
V. Explain

 (v) Suggest the identity of the cation present in solution Z

 (vi) Name the two salts present in mixture R

26. (a) The set-up below was used in the electrolysis of copper II nitrate solution:

(i) What is electrolysis?

 (ii) Show the anode and cathode on the diagram

(iii) Explain how you would confirm gas P

(iv) Write the equation for the reaction occurring at

(a) Anode
(b) Cathode

(v) State two changes that occur on the electrolyte after the experiment

(b) Below are the standard electrode potentials for electrodes B and D

B^2t_(aq) + 2e^– B_(s) – 2.92V

D^2t_(aq) + 2e^– D_(s) + 0.34V

(i) Identify the electrode which is

(a) The least reducing agent

(b) The strongest oxidizing agent

(ii) Calculate the e.m.f of the cell formed when the two electrodes are connected

(iii) Write a cell representative for the cell above

27. A typical electrolysis cell uses a current of 40,000 amperes. Calculate the mass (in Kg of aluminium produced in one hour). (Al = 27) (Faraday = 96500Coloumbs )

28. A strip of copper metal was immersed into a nitrate solution of metal Q overnight. Use the

 information below to answer questions that follow

 (a) State the observations made at the end of the experiment

 (b) Give a reason for the observations made in (a) above

 (c) Calculate the e.m.f of the cell above

29. (a) Excess marble chips (Calcium carbonate) was put in a beaker containing 150cm³

of dilute hydrochloric acid. The beaker was put on a weighing balance and the total

loss in mass recorded after every two minutes as shown in the table below:

(i) Why was there a loss in mass?

 (ii) The average rate of reaction was faster between 0 and 2 minutes than between

6 and 8 minutes. Explain why

 (iii) State one way in which the rate of reaction can be increased

(iv) When aqueous sodium sulphate was added to contents of the beaker, a white precipitate

was formed;

(I) Identify the white precipitate ………………………………………………………

(II) Name one use of the substance named in (iv) (I) above

b) A student performed the following experiment with an intention to extract calcium metal

(i) The student was surprised that no calcium was produced in the experiment. Explain

why no calcium was produced

 (ii) Write the equation for the reaction that occurred at the anode if the solution was concentrated

 (iii) The electrolysis involved passing an electric current of 4A for one hour. Calculate the mass of

the product at the anode. (1Faraday = 96500C, Cl =35.5, H = 1.0, O =16, Ca = 40)

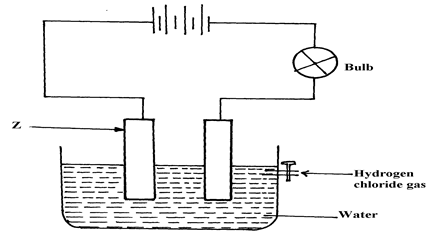

30. Cheptoo set-up some apparatus as shown in the diagram below:-

 At the start of the experiment, the bulb did not light:-

(a) State and explain the observation made when the tap was opened to allow the hydrogen

chloride gas through the water for about 20 minutes

 (b) Write the chemical equation for the reaction that took place at the cathode

31. Metals K and N were connected to form a cell as shown in the diagram below. Their reduction

potentials are as shown below:

K⁺_(aq) / K_(s)
 – 0.17V

N⁺_(aq) / N_(s) = + 1.1 6V

I. Write the equation for the half-cell reaction that occurs at

 Metal K electrode

 Metal N electrode

 II Identify P and state its role in the above setup

(i). Identity of P

(ii) . Role of P in the setup.

III. On the diagram, show the flow of

I. Electrons

II. Current.

IV Calculate cell potential (E) for the cell represented in the setup above

32. (a) The diagram below shows a Zinc –copper cell.

(i) Given the standard electrode potential of Zinc is -0.76V and that of copper is +0.34V, suggest;

(i)The identity of W …………………………………………………………………….

(ii) The identity of X …………………………………………………………………… .

(iii) The equation for the overall cell reaction

(iv) The reading on the voltmeter

(b) Sodium hydroxide may be manufactured by the electrolysis of brine as in the diagram below:-

(i) State the chemical name of brine

(ii) Write the equations for the reactions are the electrodes

Anode

Cathode

(iii) Explain how sodium hydroxide is obtained from the product of this process

33. A typical electrolysis cell uses a current of 40,000 amperes. Calculate the mass (in kilograms)

of aluminium produced in one hour (Al=27, 1Faraday=96,500 coulombs)

34. The reaction between ammonia and oxygen to form Nitrogen (II) oxide is highly exothermic

4NH_3(g) + 5O_2(g) 4NO_(g) + 6H₂O_(g)

The reaction is carried out in presence of platinium-rhodium catalyst at 1173k and a pressure

of 911.952k pa.

i) Explain how each of the following would affect the yield of Nitrogen(II) oxide gas:

a) Reduction in pressure

b) Using a more efficient catalyst

35. The following table shows the standard reduction potentials of some half cells. Study the

table and refer to it to answer the questions that follow;

Half reaction E^θ volts

 P⁴⁺_(aq) + e^– P³⁺_(aq) +0.61

 Q³⁺_(aq) + e^– Q²⁺_(aq) +0.77

 R_2(g) + 2e^– 2R^–_(aq) +0.54

 S²⁺_(aq) + 2e^– S_(s) -0.44

T²⁺_(aq) + 2e^– T_(s) -0.74

 a) Identify the strongest oxidizing agent

 b) Which substance would be used to oxidize R^– ion to the atom R

 c) Study the cell represented below;

T_(s) / T²⁺_(aq)// S²⁺_(aq)/ S_(s)

 i) Identify the electrodes

ii) Write equations for the reaction taking place in each half- cell

 iii) Determine the cell equation and the electromotive force (e.m.f) of the cell represented in

(c) above

 iv) In which direction does the electrons flow in the external circuit of the cell whose e.m.f

is determined in (iii) above

 d) A steady current of 2.5A was passed for 15 minutes through a cell containing divalent ions

M²⁺. During this process 0.74g of metal M was deposited (IF = 96500C)

 i) Calculate the quantity of electricity passed in this cell

ii) Determine the relative atomic mass of M

36. The following table shows the standard reduction potentials of some half cells.

Study the table and refer to it to answer the questions that follow;

Half reaction E^θ volts

 P⁴⁺_(aq) + e^– P³⁺_(aq) +0.61

 Q³⁺_(aq) + e^– Q²⁺_(aq) +0.77

 R_2(g) + 2e^– 2R^–_(aq) +0.54

 S²⁺_(aq) + 2e^– S_(s) -0.44

T²⁺_(aq) + 2e^– T_(s) -0.74

 a) Identify the strongest oxidizing agent

 b) Which substance would be used to oxidize R^– ion to the atom R

 c) Study the cell represented below;

T_(s) / T²⁺_(aq)// S²⁺_(aq)/ S_(s)

 i) Identify the electrodes

ii) Write equations for the reaction taking place in each half- cell (2 mks

iii) Determine the cell equation and the electromotive force (e.m.f) of the cell represented

in (c) above

 iv) In which direction does the electrons flow in the external circuit of the cell whose e.m.f

is determined in (iii) above

 d) A steady current of 2.5A was passed for 15 minutes through a cell containing divalent ions

M²⁺. During this process 0.74g of metal M was deposited (IF = 96500C)

 i) Calculate the quantity of electricity passed in this cell

ii) Determine the relative atomic mass of M

37. In the equation below identify the reagent that acts as an acid in the forward reaction.

Give a reason for your answer.

NH₄⁺_(aq) + H₂O_(l) NH_3(aq) + H₃O⁺_(aq)

38. A student set up the experiment shown below. Study it and answer the questions that follow.

 a) State any two observations the student made during the experiment

 b) Explain what happens to the pH of the resultant solution at the end of the experiment

39. Copper (II) sulphate solution was electrolysed using copper electrode. A Current of 0.5A was

passed for 64.3 minutes and a mass of 0.64g of copper was deposited. (Cu = 63.5)

 a) Which electrode decreased in mass during electrolysis? Explain

b) Calculate the quantity of charge needed to deposits 1 mole of copper

40. State and explain what is observed when crystals of iodine are heated gently

41. (a) State Faradays First Law of Electrolysis

(b) Calculate the volume at s.t.p of hydrogen evolved when 2A of electricity are passed

through dilute sulphuric acid for 2hours.

(Molar gas volume at s.t.p = 22.4dm³, one Faraday= 96500coulombs)

42. The following is an equation for the reaction between ammonia and water

NH_3(g) + H₂O_(l) NH⁺_4(aq) + OH^–(_aq)

 (a) Name the base in the backward reaction

43. The common ores of Zinc are zinc blende and calamine:-

 (i) Give the chemical formula of Zinc blende

 (ii) Explain how the pollution caused by large scale extraction of Zinc can be reduced by

having a fertilizer plant close to it

44. The oxides of calcium and phosphorous react as shown below:-

6CaO_(s) + P₄O_10(s) 2Ca₃(PO₄)_2(s)

 (i) Give a reason why these substances react and yet both are oxides

 (ii) Work out the oxidation state of phosphorous in P₄O₁₀

(iii) State one use of Ca₃(PO₄)₂

45. The standard hydrogen electrode is used as the reference electrode. Some of the difficulties in

 using hydrogen gas as an electrode are:

– Hydrogen is a gas at 25^oC

– Hydrogen does not conduct electricity

-The half-cell reaction, 2H⁺_(aq) + 2e^– H_2(g) is slow and takes long to reach equilibrium.

Explain how these difficulties are solved in the standard hydrogen electrode

46. The following are electrode potentials of the half cells

Half cell E^θ volts

M_(aq) /M_(s) -0.76

C²⁺_(aq) / C_(s) – 0.34

(a) Calculate the potential difference of the following cell.

M_(s)/M^2t_(aq) // C^2t_(aq)/C_(s)

47. (a) Name two types of isotopes of phosphorous

 (b) Explain why phosphorus is stored in water and not in oil like sodium

48. Use the cell representation below to answer the questions that follow:-

X_(s) /X³⁺_(aq) //W²⁺_(aq) /W_(s)

 (a) Write the equation for the cell reaction above

 (b) If the e.m.f of the cell is 0.30V and E^ value for W²⁺/W is -0.44volts, calculate

the E^ for X³⁺_(aq) /X_(s)

49. The following diagram represents the electrolysis of dilute sodium chloride solution using inert

 electrodes

 Determine the electrode at which different electrolytic products would be produced if the

solution is electrolysed for several hours. Explain

50. Complete the following redox equations by adding the correct number of electrons on either

reactant or product side of the redox equations:-

(a) ClO^–_3(aq) + 6H⁺(aq) Cl_2(g) + 3H_2(l)

(b) NO^–_2(aq) + H₂O_(l) NO^–_3(aq) + 2H⁺_(aq)

51. The following are standard reduction potentials;

Rewrite the E^ values of the above half-cells using iron as a reference electrode

52. Calculate the mass of metal J that would be dissolved at the anode when a solution of J (III)

 nitrite is electrolysed using a current of 1.5amperes for 15minutes (1 Faraday = 96,500C; J = 52)

53. Consider the following standard electrode potentials:

Sn²⁺_(aq) + 2e- Sn_(s) +0.144v

 Fe²⁺_(aq) + 2e- Fe_(s) – 0.44v

 Zn²⁺_(aq) + 2e- Zn_(s) – 0.76v

Some modern cars are made from steel coated with other metals. Using this data above state

 and explain the best suited metal for coating steel

Electrochemistry Answers

1. i) Carbon – carbon/ platinum – carbon

ii) – The concentration of magnesium sulphate increase

• Hydrogen and oxygen given off at the electrodes reduce the water content


2. Cu²⁺ + 2c- __________ Cu_(s)

 Mass =

1.48 = 63.5 x I x 2.5 x 60

2 x 96500

I = 1.48 x 2 x 96500

63.5 x 2.5 x60

= 29.988 A

3. a) Anode is electrode A (1 mk)

B is cathode

b) 2H⁺
_(aq) + 2e- _________ H_{2 (g)}

c) The acid becomes more

4. i) 200 X 58 X 60 C _______________ 64.8g  ½

9500C ____________________ 27g ½

27 X 200 X 58 X 60  ½ = +3  ½

64.8 X 96500

ii) 40H-_(g) __________________2H₂O_(L) + O²_(g) +4e^–
 ½

4 X 96500 ________________ 22.4dm³
 ½

200 X58 X 60 X 22.4

4 X 96500 C

= 40.39dm³
 ½

5. a) Mg_(s) + Pb²⁺_(aq) ________ Mg²⁺
_(aq) + Pb_(s)

 b) 0.13 – (-0.76)

= +0.53V

6. (a) 2F = 10  2F – 10 = 0; 2F = 10 F = +5

 F = +5 (penalize -5)

(b) Group V

7. Aluminium has a higher electrical conductivity than sodium. ^√1 Aluminium has three

delocalized ^√½ electrons in its metallic structure while sodium has only one delocalized

electron in its structure. ^√½

8. Q = It ^√½

= 3 x 50 x 60 ^√½

= 9000 C ^√½

 1 mole of Zn is liberated by a charge of 2 f.

 i.e 96500 x 2 x 65g of Zn

9000C ?

= 65 x 9000
^√1 = 12.124g Zn ^√½

96500 x 2

9. a) Q is sulphur (IV) oxide SO₂(g). ^√1

 b)

 – Impure copper is the while pure copper is cathode. During electrolysis impure copper is

purified and pure copper deposited on the cathode as shown in the half electrode reaction below;

CATHODE EQUATION:

 Cu²⁺ + 2e Cu(s) ^√½

• The cathode is therefore removed and replaced after an interval.


10. a) i) the yield of NH₃ would be lowered √ ½ any supply of heat makes NH₃ to decompose

to N₂ and H₂

ii)the yield of NH₃ would be increased

b)a catalyst accelerate the rates of both forward and reverse reactions equally√ ½ . Equilibrium position is not affected by a catalyst√ ½

c)

11. a)T√

b)Z_S + 2G⁺ 2G_(S) + Z_(aq)
²⁺√1

c)E^θ
cell = E – E

= 0.08 – (-2.38)√1

= + 3.18

12. Mass of due to C = 12 x 4.2 = 1.145√ ½

44

Mass of due to H = 2 X 1.71 = 1.889√ ½

18

Moles of C = 1.145 = 0.095√ ½

12

Moles of H = 0.1889 =0.1889√ ½

1

Moles ratio c: r

0.095: 0.1889√ ½

1: 2

E.F = CH₂√ ½ (accept alternative method)

13. 96,500 coulombs 1 faraday

 144,750 ,, ?

144,750 faraday√ ½

 96,000

 = 1.5 faradays√ ½

Copper (II) ions = 2 faradays (penalize ½ mk for missing/wrong units)

 2 faradays yield = 64g of copper

1.5 faradays yield = ?

 = 1.5 x 64g√ ½

2

 =48g of copper was obtained√ ½

14. Physical difference:-

Na₂O₂ – yellow while Na₂O is white

Chemical difference:-

N₂O₂ reacts with water to form NaOH and O₂ while

Na₂O reacts with water to form NaOH only

15. (a) Pb(NO₃)₂

(b)

(c) Mg_(s) / Mg²⁺
_(aq) // Pb²⁺
_(aq) / Pb_(s)

16. (a) MnO₄ is reduced;

Oxidation number of Mn is reduced from +7 to +2

 (b)5Fe²⁺_(g) 5Fe³⁺_(aq) + 5e_–

17. i) 2 Cr_(S) ____________ 2Cr³⁺_(aq) +6e

3Fe²⁺
_(aq) + 6e ____________ 3Fe_(g)

2Cr_(g) + 3Fe²⁺_(aq) _________ 2 Cr³⁺_(aq) +3 Fe _(g)
√

 ii) 0.30 = – 0.44 – E^ǿ_R

E^ǿ_R = – 0.44 – 0.30

= – 0.74V √

18. (a) – Filtration of air/electrostatic precipitation/purification

– Passing through sodium hydroxide/potassium hydroxide to absorb Carbon (IV) oxide gas

– Cool to remove water vapour as ice

-Cool remaining air to liquid by repeated compression and expansion of liquid air

 – Fractional distillation of liquid air- Nitrogen collected at -196^oC

 (b) (i) Nitrogen (II) Oxide

 (ii)

OR – Oxidation number of N₂ in NH₃ increases from -3 to 0. Oxidation number of reducing

agent increases or oxidation number of Cu in CuO decreases from +2 to 0 hence is a reducing agent

(iii) NH₄NO₃ N₂O + 2H₂O

(iv) Fertilizer/expose

(c) (i) G or G

(ii) E²⁺_(aq) + 2OH^–_(aq) E(OH)_2(s)

19. a) i) G// G_2(g) Not G^–

It has the highest potential OR highest reduction potential  1 mark

ii) G and N or G_2(g) // N_(g)
 1 mark

iii)

20. a) (i) Cathode – steel

Anode – Carbon / graphite

(ii) To lower the melting P⁺ hence reducing cost of heating the salt.

(iii) To prevent the two products from recombining.

(iv) Cathode

Na⁺_(l) + e^– Na_(l)

Anode

2 Cl^–_(l) Cl 2_(g) + 2 e-

(v) less dense than electrolyte/ has low density

b) (i) quantity = 6.42 X 10 60 = 3852

(ii) 3852c province 2.74

2X 96000 ”
(2 X 96000) X 2.74

3852

= 136.58

21. .a) i) H⁺_(aq) + e^– ½ H₂

ii) E cell = 0.76 + 0.54 = +1.3 volts

iii) I. Fe³⁺

II. Zn

 IV. Fe³⁺ ion

2 Fe³⁺ + 2 e^– 2 Fe²⁺ E⁰ = + 0.77

2 I I_2g + 2e E⁰ = – 0.54

2 Fe³⁺ + 2I^– 2Fe²⁺ + I ₂ E⁰ = + 0.23

22. a) i) Chlorine Has a higher reduction potential

ii) +1.36 2.36 = +3.72

 b) i) P and S

ii)

iii) +1.50 – 0.44 + + 1.94

 c) Q = 4 X a6 X 60 = 3840C

1.17g ________ 3840

59 g _________ 59 X 3840 = 192981.261 C

1.174

 If 96,500c ___________ IF

192891.261 _____ 192981.261 X 1

96500

Charge of X = +2

Formula X(NO₃)₂

23. (a) B – Copper metal

C – Chlorine gas

D – Ammmonia gas

E – Zinc

(b) (i) Cu²⁺_(aq) + 2e^– Cu_(s)

(ii) CuSO₄ + Zn_(s) ZNSO₄ + Cu_(s)

Cu²⁺
+ Zn_(s) Cu_(s) + Zn²⁺_(aq)

(c) – Water treatment

-Manufacture of hydrochloric acid

(d) Tetra mine copper (II) ions

24. (a) (i) E^ = 1.13V

(ii) T₂ because it’s standard electrode potential is zero. i.e. point of reference.

(iv) E.m.f = + 1.23 – – 0.76 = 1.99 V

 (b) (i) x – Oxygen

y – Hydrogen

(ii) 4OH^–_(aq) 2H₂O
+ O₂ + 4e

(iii) Reduction takes place at electrode Y. H⁺ ions gain electrons to form hydrogen gas.

(iv) Platinium / graphite/ Nickel because it is inert.

25. (i) Zn²⁺_(aq) + 2OH^–_(aq) Zn(OH)_2(s)

Zn(OH)_2(s) +
4NH_3(aq) Zn(NH₃)4 ²⁺_(aq) + 2OH^–_(aq)

(ii) The mixture consists of a soluble compound and an insoluble compound.

(iii) Evolution brown fumes of NO₂ gas

(iv) CO₃^2- – Because its reaction with HNO₃ produces CO₂ gas or 2H⁺_(aq) + CO₃2-_(aq) H₂O_(l) +CO_2(g)

(v) Pb²⁺ ion

(vi) Lead (ii) Carbonate

Zinc (II) Nitrate

26 A (i) Process by which an electrolyte is decomposed by passing an electric current through it.

(ii) Anode – left pt rod

Cathode – right pt rod

(iii) – Blue /pale green colour fades

– P solution becomes acidic

B (i) a. – D²⁺

b. – D²⁺

(ii) C

E _cell = E_ordn – E_ordn

= +0.34 –(-2.92) = +3.26V

(iii) B_(s) / B²⁺_(aq) // D²⁺_(aq) / D(_s)
E = + 3.26V

27 Q = 40000 x 60 x 60 = 144000000c

Mass of Al = 144000000 x 27

3 x 96500

= 13.43kg

28. a) Strip of copper metal dissolved forming blue solution. ^√½

 b) Copper displaces ions ^√½ of Q from solution since copper is more electropositive ^√½ than Q.

 c) E.m.f of cell = (0.80 – 0.34)V ^√½

= 0.46V ^√½

29 (a) (i) Carbon (IV) Oxide gas evolved was lost to the atmosphere

(ii) Concentration of reactants higher between O and R

Reaction rate faster

(iii) Grinding the marble chips

(iv) Calcium sulphate

(v) Plaster of Paris

(b) (i) Hydrogen ions discharged;

It takes less energy than calcium ions

 (ii) 2Cl^–_(aq) Cl_2
(g) + 2e

(iii) Q = 1t = 4 x 1 60 x 60 ( ½ mk)

= 14400C

2 x 96500C = 2 x 35.5 (½mk)

14400C = 14400 x 2 x 35.5

2 x 95600 = 5.297g (½mk)

30. a) the bulb light√ ½

Hydrogen chloride gas ionized in water to give H⁺ and cl^–(aq) that are responsible for

conduction of electric current√1

b)2H⁺(aq) +ze^– H₂(g)√1

31. Q = it IF = 69500C 2F ______ 206g of Pb

= 40x(5×60) = 1200×1 F = 0.01243 x 206

 = 1200 C 96500 2F

 = 0.01245 F = 1.280g

 b) I K_(s) ________ K²⁺ _(aq) + 2e^–

Na+ 2e ________ N_(g)

 II 1. Salt bridge

2. Complete the circuit

Balance the ions in each half cell

 III

 IV E cell = E Red – E oxd

= +1.16 – (-0.17) = +1.33V

32. (a) (i) Zinc sulphate / Zinc chloride / Zinc nitrate solution

 (ii) Copper

 (iii) Zn_(s) + Cu²⁺_(aq) Zn²⁺_(aq) + Cu_(s)

 (iv) E = 0.34 + 0.76

= 1.0V

. (b) (i)Concentrated sodium chloride solution

(ii) 2 Cl^–(aq) Cl_2(g) + 2e

Na⁺(aq) + e N_(l)

(iii) Sodium amalgam is flown into water. It reacts forming sodium hydroxide solution

33. Quantity of electricity = (40,000 X 60 X 60) Coulumbus  ½ mark

3 x 96,500 Coulumbus produce 27g of Al

჻
40,000 X 60 X 60 X 27 Kg  ½ mark

3 X 96,500 X 1000  ½ mark

= 13.43Kg  ½ mark

Subtract ½ mark if units missing or wrong

[Total 12 marks]

34. i) Increased yield of NO/  1 mark Equilibrium shifts to the right // favours the

forward reaction// reduced pressure favours forward reaction// increased volume

number of molecules

ii) It will not affect the yield // remains the same

Catalyst do not affect position of Equilibrium

35. a) R

 b) T

 c) i) T_(g) and S_(g)

ii) Half cell one Half cell two

T(s) – 2e-____ T2+ S2+(aq) + 2e _____ S(s)

OR: T(s) ____ T2+_(aq) + 2e-

iii) T_(s) _______ T²⁺
_(aq) + 2e, E = +0.74V

iv) From T(s)/ T2+ half cell to S2+/ S(s) half cell through conducting wires

 d) i) Q = It

= 2.5 x (15×60)

= 2250C

ii) RAM = mass x valency x 96500

Q

= 0.74 x 2 x 96500

2250

= ¹⁴²⁸²⁰/₂₂₅₀

₌ 63.476

36. a) R

 b) T

 c) i) T_(g) and S_(g)

ii) Half cell one Half cell two

T(s) – 2e-____ T2+ S2+(aq) + 2e _____ S(s)

OR: T(s) ____ T2+(aq) + 2e-

iii) T_(s) _______ T²⁺ (aq) + 2e, E = +0.74V

iv) From T(s)/ T2+ half cell to S2+/ S(s) half cell through conducting wires

 d) i) Q = It

= 2.5 x (15×60)

= 2250C

ii) RAM = mass x valency x 96500

Q

= 0.74 x 2 x 96500

220

= ¹⁴²⁸²⁰/₂₂₅₀

₌ 63.476

37. NH⁺₄√ 1, proton donor√

38. a) – Bubbles of colourless gas at the anode√ ½

– Brown deposits at the cathode √ ½

– Blue color of the solution fades Any 2 ½ mark each

 b) The Ph decreases

 Removal of OH^– ions leaves an excess of H⁺ hence the solution becomes more acidic√

39. a) Anode. Copper anode dissolves

b) Q = 0.5 X 60 X64.3 = 1929C

0.64g of Cu _______ 1929 C

჻ 63.5 of Cu

63.5 X 1929√ ½

0.64

= 191393 C √ ½

40. The grey-black solid changes to purple gas iodine sublimes at low temperature due to

weak Van der walls forces

41. (a) The mass of substance liberated during electrolysis is directly proportional to the quantity

of electricity passed

(b) Quantity of electricity = 2 x 2 x 36000 = 14400c (½mk)

 Volume of gas evolved = 14400 x 22.4 = 1.671dm³

2 x 96500 (1 ½ mk)

42. (a) OH^–
√1 (1 mk)

43. (i) ZnS- No mark if the letters are joined

(ii) SO₂ produced as a by-product is used in contact process to obtain H₂SO₄. This acid is used in making fertilizers e.g. ammonium sulphate

44. (i) CaO is basic and P₄O₁₀ is acidic

(ii) Let the ON of P be x

4x + (-2 x10) = 0

4x = +20

4 4

x = +5

(iii) Used as a fertilizer

45. Platinum electrode is used, H₂ is bubbled over the pt electrode immersed in 1M H+ i.e 1M HCl.

 The electrode is coated with finely –divided platinum catalyst

(b)electrochemical cell

46. + 0.76 + 0.34 = 1.0Volts

47. (a) – Red- Phosphorous

– White – Phosphorous

(b) Phosphorous is insoluble in water because its non-polar while water is polar.

It cannot be stored in oil because oil is non-polar it will dissolve the phosphorous.

48. (a) 2X_(s) + 3W(aq) 2X³⁺_(aq) + 3W_(s)

(b) E^(X/X³⁺_(aq) + – 0.44 = 0.3V

E^(X_(s) /X³⁺_(aq) = +0.74V

 E^(X³⁺_(aq)/X_(s) = -0.74V

49. Electrode – E₁ is the anode

Dilute electrolyte – OH^– ions are discharged.

4 OH^–_(aq) 2H₂ O_(e) + O_2(g) + 4e^–

Oxygen gas is produced.

Discharge of hydroxyl ion increases the concentration of sodium chloride.

Chloride, Cl^– are then discharged.

Chloride, Cl-, are then discharged

Chloride gas is produce

2Cl^–_(aq) Cl_2(g) + 2e^–

50. a) C10₃^– (=) Cl + 3(-2) = -1(=)Cl -6 =-1,Cl= + 5

C10₃^–
_(aq) 6H⁺_(aq)+5e^– Cl_2(g)+ 3H₂O_(l)

 b) NO^–₂ (=) N+2 (-2) = -1(=) N-4 = -1 (=) = N+ 3

NO^–₂ +H₂O_(l) NO^–_3(aq)+2H⁺_(aq) + 2e^–

51.

52.  = 1.5 X 60 X 15 = 1350

J³⁺_(aq) + 3e^– J_(s)

3F = 3 X 96500 = 289 500C

289500C deposit = 52g of J_(s)

= 1350 C deposit = 1350 X 52

289500 = 0.2 2425g

53. Tin (Sn) its oxidation potential is +0.144V. It is the least likely to combine/ react with elements

of weather
