CHEMISTRY FORM THREE NOTES

CHEMISTRY OF CARBON

A: CARBON

Carbon is an element in Group IV(Group 4)of the Periodic table .It has atomic number 6 and electronic configuration 2:4 and thus has four valence electrons(tetravalent).It does not easily ionize but forms strong covalent bonds with other elements including itself.

(a)Occurrence

Carbon mainly naturally occurs as:

 (i)allotropes of carbon i.e graphite, diamond and fullerenes.

 (ii)amorphous carbon in coal, peat ,charcoal and coke.

(iii)carbon(IV)oxide gas accounting 0.03% by volume of normal air in the atmosphere.

(b)Allotropes of Carbon

Carbon naturally occur in two main crystalline allotropic forms, carbon-graphite and carbon-diamond

Carbon-diamond

Carbon-graphite

Shiny crystalline solid

Black/dull crystalline solid

Has a very high melting/boiling point because it has a very closely packed giant tetrahedral structure joined by strong covalent bonds

Has a high melting/boiling point because it has a very closely packed giant hexagonal planar structure joined by strong covalent bonds

ecolebooks.com

Has very high density(Hardest known natural substance)

Soft

Abrassive

Slippery

Poor electrical conductor because it has no free delocalized electrons

Good electrical conductor because it has free 4th valency delocalized electrons

Is used in making Jewels, drilling and cutting metals

Used in making Lead-pencils,electrodes in batteries and as a lubricant

Has giant tetrahedral structure

Has giant hexagonal planar structure

c) Properties of Carbon

(i)Physical properties of carbon

Carbon occur widely and naturally as a black solid

It is insoluble in water but soluble in carbon disulphide and organic solvents.

It is a poor electrical and thermal conductor.

(ii)Chemical properties of carbon

I. Burning

Experiment

Introduce a small piece of charcoal on a Bunsen flame then lower it into a gas jar containing Oxygen gas. Put three drops of water. Swirl. Test the solution with blue and red litmus papers.

Observation

 -Carbon chars then burns with a blue flame

 -Colourless and odourless gas produced

-Solution formed turn blue litmus paper faint red. Red litmus paper remains red.

Explanation

Carbon burns in air and faster in Oxygen with a blue non-sooty/non-smoky flame forming Carbon (IV) oxide gas. Carbon burns in limited supply of air with a blue non-sooty/non-smoky flame forming Carbon (IV) oxide gas. Carbon (IV) oxide gas dissolve in water to form weak acidic solution of Carbonic (IV)acid.

Chemical Equation

C(s)  +  O2(g) ->   CO2(g)  (in excess air)

2C(s)  +  O2(g)   ->   2CO(g)  (in limited air)

CO2(g) + H2O (l) ->  H2CO3 (aq) (very weak acid)

II. Reducing agent

Experiment

Mix thoroughly equal amounts of powdered charcoal and copper (II)oxide into a crucible. Heat strongly.

Observation

Colour change from black to brown

Explanation

Carbon is a reducing agent. For ages it has been used to reducing metal oxide ores to metal, itself oxidized to carbon (IV) oxide gas. Carbon reduces black copper (II) oxide to brown copper metal

Chemical Equation

2CuO(s)   +  C(s)   ->  2Cu(s)   +   CO2(g)

(black)  (brown)

2PbO(s)   +  C(s)   ->  2Pb(s)   +   CO2(g)

(brown when hot/ (grey)

yellow when cool)

2ZnO(s)   +  C(s)   ->  2Zn(s)   +   CO2(g)

(yellow when hot/ (grey)

white when cool)

Fe2O3(s)   +  3C(s)   ->  2Fe(s)   +   3CO2(g)

(brown when hot/cool (grey)

Fe3O4 (s)   +  4C(s)   ->  3Fe(s)   +   4CO2(g)

(brown when hot/cool (grey)

B: COMPOUNDS OF CARBON

The following are the main compounds of Carbon

(i)Carbon(IV)Oxide(CO2)

(ii)Carbon(II)Oxide(CO)

(iii)Carbonate(IV) (CO32-)and hydrogen carbonate(IV(HCO3)

(iv)Sodium carbonate(Na2CO3)

(i) Carbon(IV)Oxide (CO2)

(a)Occurrence

Carbon(IV)oxide is found:

-in the air /atmosphere as 0.03% by volume.

-a solid carbon(IV)oxide mineral in Esageri near Eldame Ravine and Kerita near Limuru in Kenya.

(b)School Laboratory preparation

In the school laboratory carbon(IV)oxide can be prepared in the school laboratory from the reaction of marble chips(CaCO3)or sodium hydrogen carbonate(NaHCO3) with dilute hydrochloric acid.

Image From EcoleBooks.comImage From EcoleBooks.com

(c)Properties of carbon(IV)oxide gas(Questions)

1.Write the equation for the reaction for the school laboratory preparation of carbon (IV)oxide gas.

Any carbonate reacted with dilute hydrochloric acid should be able to generate carbon (IV)oxide gas.

Chemical equations

CaCO3(s)  + 2HCl(aq) -> CaCO3 (aq) +   H2O(l) + CO2 (g)

ZnCO3(s)  + 2HCl(aq) -> ZnCO3 (aq) +   H2O(l) + CO2 (g)

MgCO3(s)  + 2HCl(aq) -> MgCO3 (aq) + H2O(l) + CO2 (g)

CuCO3(s)  + 2HCl(aq) -> CuCO3 (aq) + H2O(l) + CO2 (g)

NaHCO3(s)  + HCl(aq) -> Na2CO3 (aq) + H2O(l) + CO2 (g)

KHCO3(s)  + HCl(aq) -> K2CO3 (aq) + H2O(l) + CO2 (g)

2.What method of gas collection is used in preparation of Carbon(IV)oxide gas. Explain.

Downward delivery /upward displacement of air/over mercury

Carbon(IV)oxide gas is about 1½ times denser than air.

3.What is the purpose of :

(a)water?

To absorb the more volatile hydrogen chloride fumes produced during the vigorous reaction.

(b)sodium hydrogen carbonate?

To absorb the more volatile hydrogen chloride fumes produced during the vigorous reaction and by reacting with the acid to produce more carbon (IV)oxide gas .

Chemical equation

NaHCO3(s)  + HCl(aq) -> Na2CO3 (aq) + H2O(l) + CO2 (g)

(c)concentrated sulphuric(VI)acid?

To dry the gas/as a drying agent

4.Describe the smell of carbon(IV)oxide gas

Colourless and odourless

5. Effect on lime water.

Experiment

Bubbled carbon(IV)oxide gas into a test tube containing lime water for about three minutes

Observation

White precipitate is formed.

White precipitate dissolved when excess carbon(IV)oxide gas is bubbled .

Explanation

Carbon(IV)oxide gas reacts with lime water(Ca(OH)2) to form an insoluble white precipitate of calcium carbonate. Calcium carbonate reacts with more Carbon(IV) oxide gas to form soluble Calcium hydrogen carbonate.

Chemical equation

Ca(OH)2(aq) + CO2 (g) -> CaCO3 (s) + H2O(l)

CaCO3 (aq) + H2O(l) + CO2 (g) -> Ca(HCO3) 2 (aq)

6. Effects on burning Magnesium ribbon

Experiment

Lower a piece of burning magnesium ribbon into a gas jar containing carbon (IV)oxide gas.

Observation

The ribbon continues to burn with difficulty

White ash/solid is formed.

Black speck/solid/particles formed on the side of gas jar.

Explanation

Carbon (IV) oxide gas does not support combustion/burning.Magnesium burn to produce/release enough heat energy to decompose Carbon (IV) oxide gas to carbon and oxygen.Magnesium continues to burn in Oxygen forming white Magnesium Oxide solid/ash.Black speck/particle of carbon/charcoal residue forms on the sides of reaction flask. During the reaction Carbon (IV) oxide is reduced (Oxidizing agent)to carbon while Magnesium is Oxidized to Magnesium Oxide.

Chemical equation

2Mg(s) + CO2 (g) -> C (s) + 2MgO(l)

7. Dry and wet litmus papers were separately put in a gas jar containing dry carbon (IV) oxide gas. State and explain the observations made.

Observation

Blue dry litmus paper remain blue

Red dry litmus paper remain Red

Blue wet/damp/moist litmus paper turns red

Red wet/damp/moist litmus paper remain red

Explanation

Dry Carbon (IV) oxide gas is a molecular compound that does not dissociate/ionize to release H+ and thus has no effect on litmus papers.

Wet/damp/moist litmus paper contains water that dissolves/react with dry carbon (IV) oxide gas to form the weak solution of carbonic (IV) acid (H2CO3).

Carbonic (IV) acid dissociate/ionizes to a few /little free H+
and CO32-.

The few H+ (aq) ions are responsible for turning blue litmus paper to faint red showing the gas is very weakly acidic.

Chemical equation

H2CO3(aq) -> 2H+ (aq) + CO32-(aq)

8. Explain why Carbon (IV) oxide cannot be prepared from the reaction of:

(i) Marble chips with dilute sulphuric (VI) acid.

Explanation

Reaction forms insoluble calcium sulphate (VI) that cover/coat unreacted marble chips stopping further reaction

Chemical equation

CaCO3(s)  + H2SO4 (aq) -> CaSO4 (s) +   H2O(l) + CO2 (g)

PbCO3(s)  + H2SO4 (aq) -> PbSO4 (s) +   H2O(l) + CO2 (g)

BaCO3(s)  + H2SO4 (aq) -> BaSO4 (s) +   H2O(l) + CO2 (g)

 (ii) Lead (II) carbonate with dilute Hydrochloric acid.

Reaction forms insoluble Lead (II)Chloride that cover/coat unreacted Lead(II) carbonate stopping further reaction unless the reaction mixture is heated. Lead (II) Chloride is soluble in hot water.

Chemical equation

PbCO3(s)  + 2HCl (aq) -> PbCl2 (s) +   H2O(l) + CO2 (g)

9. Describe the test for the presence of Carbon (IV) oxide.

Using burning splint

Lower a burning splint into a gas jar suspected to contain Carbon (IV) oxide gas. The burning splint is extinguished.

Using Lime water.

Bubble the gas suspected to be Carbon (IV) oxide gas. A white precipitate that dissolves in excess bubbling is formed.

Chemical equation

Ca(OH)2(aq) + CO2 (g) -> CaCO3 (s) + H2O(l)

CaCO3 (aq) + H2O(l) + CO2 (g) -> Ca(HCO3) 2 (aq)

10.State three main uses of
Carbon (IV)oxide gas

(i)In the Solvay process for the manufacture of soda ash/sodium carbonate

(ii)In preservation of aerated drinks

(iii)As fire extinguisher because it does not support combustion and is denser than air.

(iv)In manufacture of Baking powder.

(ii) Carbon (II) Oxide (CO)

(a)Occurrence

Carbon (II) oxide is found is found from incomplete combustion of fuels like petrol charcoal, liquefied Petroleum Gas/LPG.

(b)School Laboratory preparation

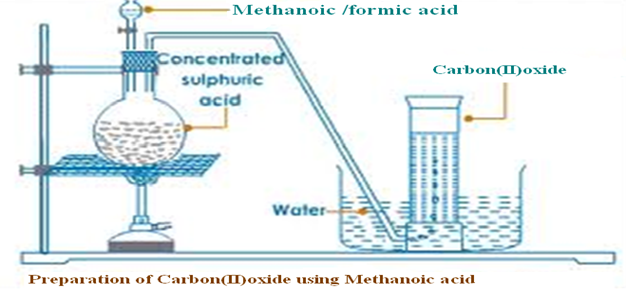

In the school laboratory carbon(II)oxide can be prepared from dehydration of methanoic acid/Formic acid(HCOOH) or Ethan-1,2-dioic acid/Oxalic acid(HOOCCOOH) using concentrated sulphuric(VI) acid. Heating is necessary.

Image From EcoleBooks.com





Image From EcoleBooks.com

Image From EcoleBooks.com

 Image From EcoleBooks.com

(c)Properties of Carbon (II) Oxide(Questions)

1. Write the equation for the reaction for the preparation of carbon(II)oxide using;

(i)Method 1;

Chemical equation

HOOCCOOH(s) –Conc.H2SO4–> CO(g) + CO2 (g) + H2O(l)

H2C2O4(s) –Conc.H2SO4–> CO(g) + CO2 (g) + H2O(l)

(ii)Method 2;

Chemical equation

HCOOH(s) –Conc.H2SO4–> CO(g) + H2O(l)

H2CO2(s) –Conc.H2SO4–> CO(g) + H2O(l)

2. What method of gas collection is used during the preparation of carbon (II) oxide

Over water because the gas is insoluble in water.

Downward delivery because the gas is 1 ½ times denser than air .

3. What is the purpose of :

(i) Potassium hydroxide/sodium hydroxide in Method 1

To absorb/ remove carbon (II) oxide produced during the reaction.

2KOH (aq) + CO2 (g) -> K2CO3 (s) + H2O(l)


2NaOH (aq) + CO2 (g) -> Na2CO3 (s) + H2O(l)

(ii) Concentrated sulphuric(VI)acid in Method 1 and 2.

 Dehydrating agent –removes the element of water (Hydrogen and Oxygen in ratio 2:1) present in both methanoic and ethan-1,2-dioic acid.

4. Describe the smell of carbon (II) oxide.

 Colourless and odourless.

5. State and explain the observation made when carbon(IV)oxide is bubbled in lime water for a long time.

 No white precipitate is formed.

6. Dry and wet/moist/damp litmus papers were separately put in a gas jar containing dry carbon (IV) oxide gas. State and explain the observations made.

Observation

 -blue dry litmus paper remains blue

 -red dry litmus paper remains red

 –
wet/moist/damp blue litmus paper remains blue

 –
wet/moist/damp red litmus paper remains red

Explanation

Carbon(II)oxide gas is a molecular compound that does not dissociate /ionize to release H+ ions and thus has no effect on litmus papers. Carbon(II)oxide gas is therefore a neutral gas.

7. Carbon (II) oxide gas was ignited at the end of a generator as below.



Image From EcoleBooks.com





Image From EcoleBooks.com

(i)State the observations made in flame K.

 Gas burns with a blue flame

(ii)Write the equation for the reaction taking place at flame K.

2CO(g) + O2 (g) -> 2CO2 (g)

8. Carbon (II) oxide is a reducing agent. Explain

Experiment

Pass carbon (II) oxide through glass tube containing copper (II) oxide. Ignite any excess poisonous carbon (II) oxide.

Observation

Colour change from black to brown. Excess carbon (II) oxide burn with a blue flame.

Explanation

Carbon is a reducing agent. It is used to reduce metal oxide ores to metal, itself oxidized to carbon (IV) oxide gas. Carbon (II) Oxide reduces black copper (II) oxide to brown copper metal

Chemical Equation

CuO(s)   +  CO(g)   ->  Cu(s)   +   CO2(g)

(black)   (brown)

PbO(s)   +  CO(g)   ->  Pb(s)   +   CO2(g)

(brown when hot/  (grey)

yellow when cool)

ZnO(s)   +  CO(g)   ->  Zn(s)   +   CO2(g)

(yellow when hot/  (grey)

white when cool)

Fe2O3(s)   +  3CO(s)   ->  2Fe(s)   +   3CO2(g)

(brown when hot/cool (grey)

Fe3O4 (s)   +  4CO(g)   ->  3Fe(s)   +   4CO2(g)

(brown when hot/cool (grey)

These reactions are used during the extraction of many metals from their ore.

9. Carbon (II) oxide is a pollutant. Explain.

Carbon (II) oxide is highly poisonous/toxic.It preferentially combine with haemoglobin to form stable carboxyhaemoglobin in the blood instead of oxyhaemoglobin.This reduces the free haemoglobin in the blood causing nausea, coma then death.

10. The diagram below show a burning charcoal stove/burner/jiko. Use it to answer the questions that follow.

Image From EcoleBooks.com

Explain the changes that take place in the burner

Explanation

Charcoal stove has air holes through which air enters. Air oxidizes carbon to carbon (IV) oxide gas at region I. This reaction is exothermic (-∆H) producing more heat.

Chemical equation

C(s) + O2(g)  -> CO2(g)

Carbon (IV) oxide gas formed rises up to meet more charcoal which reduces it to Carbon (II) oxide gas.

Chemical equation

2CO2 (g) + O2(g)  -> 2CO (g)

At the top of burner in region II, Carbon (II)oxide gas is further oxidized to Carbon(IV)oxide gas if there is plenty of air but escape if the air is limited poisoning the living things around.

Chemical equation

2CO (g) + O2(g)  -> 2CO2 (g)

(excess air)

11. Describe the test for the presence of carbon(II)oxide gas.

Experiment

Burn/Ignite the pure sample of the gas. Pass/Bubble the products into lime water/Calcium hydroxide.

Observation

Colourless gas burns with a blue flame. A white precipitate is formed that dissolve on further bubbling of the products.

Chemical equation

2CO (g) + O2(g)  -> 2CO2 (g) (gas burns with blue flame)

Chemical equation

Ca(OH) 2 (aq) + CO2 (g)  -> CaCO3 (s) + H2O(l)

Chemical equation

CO2 (g)  + CaCO3 (s) + H2O(l) -> Ca(HCO3) 2 (aq)

12. State the main uses of carbon (II)oxide gas.

(i) As a fuel /water gas

(ii)As a reducing agent in the blast furnace for extracting iron from iron ore(Magnetite/Haematite)

(iii)As a reducing agent in extraction of Zinc from Zinc ore/Zinc blende

(iv) As a reducing agent in extraction of Lead from Lead ore/Galena

(v) As a reducing agent in extraction of Copper from Copper iron sulphide/Copper pyrites.

(iii)Carbonate(IV) (CO32-)and hydrogen carbonate(IV(HCO3)

1.Carbonate (IV) (CO32-) are normal salts derived from carbonic(IV)acid (H2CO3) and hydrogen carbonate (IV) (HCO3) are acid salts derived from carbonic(IV)acid.

Carbonic(IV)acid(H2CO3) is formed when carbon(IV)oxide gas is bubbled in water. It is a dibasic acid with two ionizable hydrogens.

H2CO3(aq) ->2H+(aq) + CO32-(aq)

H2CO3(aq) -> H+(aq) + HCO3(aq)

2.Carbonate (IV) (CO32-) are insoluble in water except Na2CO3 , K2CO3 and (NH4)2CO3

3.Hydrogen carbonate (IV) (HCO3) are soluble in water. Only five hydrogen carbonates exist. Na
HCO3 , KHCO3 ,NH4HCO3 Ca(HCO3)2 and Mg(HCO3)2

Ca(HCO3)2 and Mg(HCO3)2 exist only in aqueous solutions.

3.The following experiments show the effect of heat on Carbonate (IV) (CO32-) and Hydrogen carbonate (IV) (HCO3) salts:

Experiment

In a clean dry test tube place separately about 1.0 of the following:

Zinc(II)carbonate(IV), sodium hydrogen carbonate(IV), sodium carbonate(IV), Potassium carbonate(IV) ammonium carbonate(IV), potassium hydrogen carbonate(IV), Lead(II)carbonate(IV), Iron(II)carbonate(IV), and copper(II)carbonate(IV). Heat each portion gently the strongly. Test any gases produced with lime water.

Observation

(i)Colorless droplets form on the cooler parts of test tube in case of sodium carbonate(IV) and Potassium carbonate(IV).

(ii)White residue/solid left in case of sodium hydrogen carbonate(IV), sodium carbonate(IV), Potassium carbonate(IV) and potassium hydrogen carbonate(IV).

(iii)Colour changes from blue/green to black in case of copper(II)carbonate(IV).

(iv) Colour changes from green to brown/yellow in case of Iron (II)carbonate(IV).

(v) Colour changes from white when cool to yellow when hot in case of Zinc (II) carbonate(IV).

(vi) Colour changes from yellow when cool to brown when hot in case of Lead (II) carbonate(IV).

(vii)Colourless gas produced that forms a white precipitate with lime water in all cases.

Explanation

1. Sodium carbonate(IV) and Potassium carbonate(IV) exist as hydrated salts with 10 molecules of water of crystallization that condenses and collects on cooler parts of test tube as a colourless liquid.

Chemical equation

Na2CO3 .10H2O(s) -> Na2CO3 (s) + 10H2O(l)

K2CO3 .10H2O(s) -> K2CO3 (s) + 10H2O(l)

2. Carbonate (IV) (CO32-) and Hydrogen carbonate (IV) (HCO3) salts decompose on heating except Sodium carbonate(IV) and Potassium carbonate(IV).

(a) Sodium hydrogen carbonate(IV) and Potassium hydrogen carbonate(IV) decompose on heating to form sodium carbonate(IV) and Potassium carbonate(IV).Water and carbon(IV)oxide gas are also produced.

Chemical equation

2NaHCO3 (s) -> Na2CO3 (s) + H2O(l) + CO2 (g)

(white) (white)

2KHCO3 (s) -> K2CO3 (s) + H2O(l) + CO2 (g)

(white) (white)

(b) Calcium hydrogen carbonate(IV) and Magnesium hydrogen carbonate(IV) decompose on heating to form insoluble Calcium carbonate(IV) and Magnesium carbonate(IV).Water and carbon(IV)oxide gas are also produced.

Chemical equation

Ca(HCO3)2 (aq) -> CaCO3 (s) + H2O(l) + CO2 (g)

(Colourless solution) (white)

Mg(HCO3)2 (aq) -> MgCO3 (s) + H2O(l) + CO2 (g)

(Colourless solution) (white)

(c) Ammonium hydrogen carbonate(IV) decompose on heating to form ammonium carbonate(IV) .Water and carbon(IV)oxide gas are also produced.

Chemical equation

2NH4HCO3 (s) -> (NH4)2CO3 (s) + H2O(l) + CO2 (g)

(white) (white)

(d)All other carbonates decompose on heating to form the metal oxide and produce carbon(IV)oxide gas e.g.

Chemical equation

MgCO3 (s) -> MgO (s) + CO2 (g)

(white solid) (white solid)

Chemical equation

BaCO3 (s) -> BaO (s) + CO2 (g)

(white solid)   (white solid)

Chemical equation

CaCO3 (s) -> CaO (s) + CO2 (g)

(white solid)   (white solid)

Chemical equation

CuCO3 (s) -> CuO (s) + CO2 (g)

(blue/green solid)   (black solid)

Chemical equation

ZnCO3 (s) -> ZnO (s) + CO2 (g)

(white solid)   (white solid when cool/

Yellow solid when hot)

Chemical equation

PbCO3 (s) -> PbO (s) + CO2 (g)

(white solid)   (yellow solid when cool/

brown solid when hot)

4.The following experiments show the presence of Carbonate (IV) (CO32-) and Hydrogen carbonate (IV) (HCO3) ions in sample of a salt:



(a)Using Lead(II) nitrate(V)

I. Using a portion of salt solution in a test tube .add four drops of Lead(II)nitrate(V)solution.Preserve.

Observation

inference

White precipitate/ppt

CO32- ,SO32- ,SO42- ,Cl

II. To the preserved solution, add six drops of dilutte nitric(V)acid. Preserve.

Observation

inference

White precipitate/ppt persists



White precipitate/ppt dissolves

SO42- ,Cl



CO32- ,SO32-

II. To the preserved sample( that forms a precipitate ),heat to boil.

Observation

inference

White precipitate/ppt persists



White precipitate/ppt dissolves

SO42-



Cl

II. To the preserved sample( that do not form a precipitate ),add three drops of acidified potassium manganate(VII)/lime water

Observation

inference

Effervescence/bubbles/fizzing colourless gas produced

Acidified KMnO4 decolorized/no white precipitate on lime water



Effervescence/bubbles/fizzing colourless gas produced

Acidified KMnO4 not decolorized/ white precipitate on lime water

SO32-









CO32-

Experiments/Observations:

(b)Using Barium(II)nitrate(V)/ Barium(II)chloride

I. To about 5cm3 of a salt solution in a test tube add four drops of Barium(II) nitrate (V) / Barium(II)chloride. Preserve.

Observation

Inference

White precipitate/ppt

SO42- , SO32- , CO32- ions

II. To the preserved sample in (I) above, add six drops of 2M nitric(V) acid . Preserve.

Observation 1

Observation

Inference

White precipitate/ppt persists

SO42- , ions

Observation 2

Observation

Inference

White precipitate/ppt dissolves

SO32- , CO32- , ions

III.To the preserved sample observation 2 in (II) above, add 4 drops of acidified potassium manganate(VII) /dichromate(VI).

Observation 1

Observation

Inference

(i)acidified potassium manganate(VII)decolorized

(ii)Orange colour of acidified potassium

dichromate(VI) turns to green

SO32- ions

Observation 2

Observation

Inference

(i)acidified potassium manganate(VII) not decolorized

(ii)Orange colour of acidified potassium

dichromate(VI) does not turns to green

CO32- ions

Explanations

Using Lead(II)nitrate(V)

(i)Lead(II)nitrate(V) solution reacts with chlorides(Cl), Sulphate (VI) salts (SO42- ), Sulphate (IV)salts (SO32-) and carbonates(CO32-) to form the insoluble white precipitate of Lead(II)chloride, Lead(II)sulphate(VI), Lead(II) sulphate (IV) and Lead(II)carbonate(IV).

Chemical/ionic equation:

Pb2+(aq)  +   Cl (aq)  ->  PbCl2(s)

Pb2+(aq)  +   SO42+ (aq)  ->  PbSO4 (s)

Pb2+(aq)  +   SO32+ (aq)  ->  PbSO3 (s)

Pb2+(aq)  +   CO32+ (aq)  ->  PbCO3 (s)

(ii)When the insoluble precipitates are acidified with nitric(V) acid,

 – Lead(II)chloride and Lead(II)sulphate(VI) do not react with the acid and thus their white precipitates remain/ persists.

 – Lead(II) sulphate (IV) and Lead(II)carbonate(IV) reacts with the acid to form soluble Lead(II) nitrate (V) and produce/effervesces/fizzes/bubbles out sulphur(IV)oxide and carbon(IV)oxide gases respectively.

. Chemical/ionic equation:

PbSO3 (s) + 2H+(aq)   ->   H2 O (l) + Pb2+(aq)  +   SO2 (g)

 PbCO3 (s) + 2H+(aq)   ->   H2 O (l) + Pb2+(aq)  +   CO2 (g)

(iii)When Lead(II)chloride and Lead(II)sulphate(VI) are heated/warmed;

 – Lead(II)chloride dissolves in hot water/on boiling(recrystallizes on cooling)

– Lead(II)sulphate(VI) do not dissolve in hot water thus its white precipitate persists/remains on heating/boiling.

(iv)When sulphur(IV)oxide and carbon(IV)oxide gases are produced;

 – sulphur(IV)oxide will decolorize acidified potassium manganate(VII) and / or Orange colour of acidified potassium dichromate(VI) will turns to green. Carbon(IV)oxide will not.

Chemical equation:

5SO32-(aq)
+ 2MnO4 (aq) +6H+(aq) -> 5SO42-(aq) + 2Mn2+(aq) + 3H2O(l)

(purple) (colourless)

3SO32-(aq)
+ Cr2O72-(aq) +8H+(aq) -> 3SO42-(aq) + 2Cr3+(aq) + 4H2O(l)

(Orange) (green)

 – Carbon(IV)oxide forms an insoluble white precipitate of calcium carbonate if three drops of lime water are added into the reaction test tube when effervescence is taking place. Sulphur(IV)oxide will not.

Chemical equation:

Ca(OH)2(aq)
+ CO2 (g) -> CaCO3(s) + H2O(l)

These tests should be done immediately after acidifying to ensure the gases produced react with the oxidizing agents/lime water.

Using Barium(II)nitrate(V)/ Barium(II)Chloride

(i)Barium(II)nitrate(V) and/ or Barium(II)chloride solution reacts with Sulphate (VI) salts (SO42- ), Sulphate (IV)salts (SO32-) and carbonates(CO32-) to form the insoluble white precipitate of Barium(II)sulphate(VI), Barium(II) sulphate (IV) and Barium(II)carbonate(IV).

Chemical/ionic equation:

Ba2+(aq)  +   SO42+ (aq)  ->  BaSO4 (s)

Ba2+(aq)  +   SO32+ (aq)  ->  BaSO3 (s)

Ba2+(aq)  +   CO32+ (aq)  ->  BaCO3 (s)

(ii)When the insoluble precipitates are acidified with nitric(V) acid,

– Barium (II)sulphate(VI) do not react with the acid and thus its white precipitates remain/ persists.

– Barium(II) sulphate (IV) and Barium(II)carbonate(IV) reacts with the acid to form soluble Barium(II) nitrate (V) and produce /effervesces /fizzes/ bubbles out sulphur(IV)oxide and carbon(IV)oxide gases respectively.

. Chemical/ionic equation:

BaSO3 (s) + 2H+(aq)   ->   H2 O (l) + Ba2+(aq)  +   SO2 (g)

 BaCO3 (s) + 2H+(aq)   ->   H2 O (l) + Ba2+(aq)  +   CO2 (g)

(iii) When sulphur(IV)oxide and carbon(IV)oxide gases are produced;

 – sulphur(IV)oxide will decolorize acidified potassium manganate(VII) and / or Orange colour of acidified potassium dichromate(VI) will turns to green. Carbon(IV)oxide will not.

Chemical equation:

5SO32-(aq)
+ 2MnO4 (aq) +6H+(aq) -> 5SO42-(aq) + 2Mn2+(aq) + 3H2O(l)

(purple) (colourless)

3SO32-(aq)
+ Cr2O72-(aq) +8H+(aq) -> 3SO42-(aq) + 2Cr3+(aq) + 4H2O(l)

(Orange) (green)

Carbon(IV)oxide forms an insoluble white precipitate of calcium carbonate if three drops of lime water are added into the reaction test tube when effervescence is taking place. Sulphur(IV)oxide will not.

Chemical equation:

Ca(OH)2(aq)
+ CO2 (g) -> CaCO3(s) + H2O(l)

These tests should be done immediately after acidifying to ensure the gases produced react with the oxidizing agents/lime water.

(iii) Sodium carbonate(IV) (Na2CO3)

(a)Extraction of sodium carbonate from soda ash

Sodium carbonate naturally occurs in Lake Magadi in Kenya as Trona.trona is the double salt sodium sesquicarbonate.
NaHCO3 .Na2CO3 .H2O.It is formed from the volcanic activity that takes place in Lake Naivasha, Nakuru ,Bogoria and Elementeita .All these lakes drain into Lake Magadi through underground rivers. Lake Magadi has no outlet.

Solubility of Trona decrease with increase in temperature.High temperature during the day causes trona to naturally crystallize .It is mechanically scooped/dredged/dug and put in a furnace.

Inside the furnace, trona decompose into soda ash/sodium carbonate.

Chemical equation

2NaHCO3 .Na2CO3 .H2O (s) -> 3Na2CO3 (s) + 5H2O(l) + CO2 (g)

(trona)   (soda ash)

Soda ash is then bagged and sold as Magadi soda.It is mainly used:

(i)in making glass to lower the melting point of raw materials (sand/SiO2 from 1650oC and CaO from 2500oC to around 1500oC)

(ii)in softening hard water

(iii)in the manufacture of soapless detergents.

(iv)Swimming pool “pH increaser”

Sodium chloride is also found dissolved in the lake. Solubility of sodium chloride decrease with decreases in temperature/ sodium chloride has lower solubility at lower temperatures. When temperatures decrease at night it crystallize out .The crystals are then mechanically dug/dredged /scooped then packed for sale as animal/cattle feeds and seasoning food.

Summary flow diagram showing the extraction of Soda ash from Trona

Image From EcoleBooks.com



Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.com





























b)The Solvay process for industrial manufacture of sodium carbonate(IV)

(i)Raw materials.

 –Brine /Concentrated Sodium chloride from salty seas/lakes.

 –Ammonia gas from Haber.

 –Limestone /Calcium carbonate from chalk /limestone rich rocks.

 –Water from rivers/lakes.


(ii)Chemical processes

Ammonia gas is passed up to meet a downward flow of sodium chloride solution / brine to form ammoniated brine/ammoniacal brine mixture in the ammoniated brine chamber

The ammoniated brine mixture is then pumped up, atop the carbonator/ solvay tower.

In the carbonator/ solvay tower,
ammoniated brine/ammoniacal brine mixture slowly trickle down to meet an upward flow of carbon(IV)oxide gas.

The carbonator is shelved /packed with quartz/broken glass to

(i) reduce the rate of flow of ammoniated brine/ammoniacal brine mixture.

(ii)increase surface area of the liquid mixture to ensure a lot of ammoniated brine/ammoniacal brine mixture react with carbon(IV)oxide gas.

Insoluble sodium hydrogen carbonate and soluble ammonium chloride are formed from the reaction.

Chemical equation

CO2(g) + H2O(l) + NaCl (aq) + NH3(g) -> NaHCO3(s) + NH4Cl(aq)

The products are then filtered. Insoluble sodium hydrogen carbonate forms the residue while soluble ammonium chloride forms the filtrate.

Sodium hydrogen carbonate itself can be used:

(i) as baking powder and preservation of some soft drinks.

(ii) as a buffer agent and antacid in animal feeds to improve fibre digestion.

(iii) making dry chemical fire extinguishers.

In the Solvay process Sodium hydrogen carbonate is then heated to form Sodium carbonate/soda ash, water and carbon (IV) oxide gas.

Chemical equation

2NaHCO3 (s) -> Na2CO3(s) + CO2(g) + H2O(l)

Sodium carbonate is stored ready for use in:

(i) during making glass/lowering the melting point of mixture of sand/SiO2 from 1650oC and CaO from 2500oC to around 1500oC

(ii) in softening hard water

(iii) in the manufacture of soapless detergents.

(iv) swimming pool “pH increaser”.

Water and carbon(IV)oxide gas are recycled back to the ammoniated brine/ammoniacal brine chamber.

More carbon(IV)oxide is produced in the kiln/furnace. Limestone is heated to decompose into Calcium oxide and carbon(IV)oxide.

Chemical equation

CaCO3 (s) -> CaO(s) + CO2(g)

Carbon(IV)oxide is recycled to the carbonator/solvay tower. Carbon (IV)oxide is added water in the slaker to form Calcium hydroxide. This process is called slaking.

Chemical equation

CaO(s) + H2O (l) -> Ca(OH)2 (aq)

Calcium hydroxide is mixed with ammonium chloride from the carbonator/solvay tower in the ammonia regeneration chamber to form Calcium chloride, water and more ammonia gas.

Chemical equation

Ca(OH)2 (aq) +2NH4Cl (aq) -> CaCl2(s) + 2NH3(g) + H2O(l)

NH3(g) and H2O(l) are recycled.

Calcium chloride may be used:

(i)as drying agent in the school laboratory during gas preparation (except ammonia gas)

(ii)to lower the melting point of solid sodium chloride / rock salt salts during the Downs process for industrial extraction of sodium metal.

Detailed Summary flow diagram of Solvay Process

Image From EcoleBooks.com













Practice

1. The diagram below shows part of the Solvay process used in manufacturing sodium carbonate. Use it to answer the questions that follow.

Image From EcoleBooks.com

Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.com

(a)Explain how Sodium Chloride required for this process is obtained from the sea.

Sea water is pumped /scooped into shallow pods. Evaporation of most of the water takes place leaving a very concentrated solution.

(b)(i) Name process:

I. Filtration

II. Decomposition

  (ii) Write the equation for the reaction in process:

Process I

Chemical equation

CO2(g) + H2O(l) + NaCl (aq) + NH3(g) -> NaHCO3(s) + NH4Cl(aq)

Process II

Chemical equation

2NaHCO3 (s) -> Na2CO3(s) + CO2(g) + H2O(l)

(c)(i) Name two substances recycled in the solvay process

Ammonia gas , Carbon(IV)Oxide and Water.

(ii)Which is the by-product of this process?

Calcium(II)Chloride /CaCl2

(iii)State two uses that the by-product can be used for:

  1. As a drying agent in the school laboratory preparation of gases.
  2. In the Downs cell/process for extraction of Sodium to lower the melting point of rock salt.

(iv)Write the chemical equation for the formation of the by-products in the Solvay process.

Chemical equation

Ca(OH)2 (aq) +2NH4Cl (aq) -> CaCl2(s) + 2NH3(g) + H2O(l)

(d)In an experiment to determine the % purity of Sodium carbonate produced in the Solvay process, 2.15g of the sample reacted with exactly 40.0cm3 of 0.5M Sulphuric (VI)acid.

(i)Calculate the number of moles of sodium carbonate that reacted.

Chemical equation

Na2CO3 (aq) +H2SO4 (aq) -> Na2SO4 (aq)+ CO2(g) + H2O(l)

Mole ratio Na2CO3 :H2SO4 => 1:1

Moles H2SO4 = Molarity x Volume => 0.5 x 40.0 = 0.02 Moles

1000 1000

Moles of Na2CO3 = 0.02 Moles

(ii)Determine the % of sodium carbonate in the sample.

Molar mass of Na2CO3 = 106g

Mass of Na2CO3 = moles x Molar mass => 0.02 x 106 = 2.12 g

% of Na2CO3  =  (
2.12 g x 100) = 98.6047%

2.15

(e) State two uses of soda ash.

(i) during making glass/lowering the melting point of mixture of sand/SiO2 from 1650oC and CaO from 2500oC to around 1500oC

(ii) in softening hard water

(iii) in the manufacture of soapless detergents.

(iv) swimming pool “pH increaser”.

(f)The diagram below shows a simple ammonia soda tower used in manufacturing sodium carbonate .Use it to answer the questions that follow:

Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.com

(i)Name the raw materials needed in the above process

 -Ammonia

 -Water

 -Carbon(IV)oxide

 -Limestone

 -Brine/ Concentrated sodium chloride

(ii)Identify substance A

 Ammonium chloride /NH4Cl

(iii) Write the equation for the reaction taking place in:

I.Tower.

Chemical equation

CO2(g) + NaCl (aq) + H2O(l) + NH3(g) -> NaHCO3(s) + NH4Cl(aq)

II. Production of excess carbon (IV)oxide.

Chemical equation

CaCO3 (s) -> CaO(s) + CO2(g)

III. The regeneration of ammonia

Chemical equation

Ca(OH)2 (aq) +2NH4Cl (aq) -> CaCl2(s) + 2NH3(g) + H2O(l)

(iv)Give a reason for having the circular metal plates in the tower.

 -To slow the downward flow of brine.

 -To increase the rate of dissolving of ammonia.

 -To increase the surface area for dissolution

(v)Name the gases recycled in the process illustrated above.

 Ammonia gas , Carbon(IV)Oxide and Water.

2. Describe how you would differentiate between carbon (IV)oxide and carbon(II)oxide using chemical method.

Method I

 -Bubble both gases in lime water/Ca(OH)2

 -white precipitate is formed if the gas is carbon (IV) oxide

 – No white precipitate is formed if the gas is carbon (II) oxide


Method II

 -ignite both gases

  Carbon (IV) oxide does not burn/ignite

 – Carbon (II) oxide burn with a blue non-sooty flame.

Method III

 -Lower a burning splint into a gas containing each gas separately.

 -burning splint is extinguished if the gas is carbon (IV) oxide

 -burning splint is not extinguished if the gas is carbon (II) oxide.

3.Using Magnesium sulphate(VI)solution ,describe how you can differentiate between a solution of sodium carbonate from a solution of sodium hydrogen carbonate

-Add Magnesium sulphate(VI) solution to separate portions of a solution of sodium carbonate and sodium hydrogen carbonate in separate test tubes

-White precipitate is formed in test tube containing sodium carbonate

-No white precipitate is formed in test tube containing sodium hydrogen carbonate.

Chemical equation

Na2CO3 (aq) +MgSO4 (aq) -> Na2SO4 (aq)  + MgCO3(s)

(white ppt)

Ionic equation

CO32- (aq)   + Mg2+ (aq)   -> MgCO3(s)

 (white ppt)

Chemical equation

2NaHCO3 (aq) +MgSO4 (aq) -> Na2SO4 (aq)  + Mg(HCO3)2 (aq)

(colourless solution)

4. The diagram below shows a common charcoal burner .Assume the burning take place in a room with sufficient supply of air.


Image From EcoleBooks.com

(a)Explain what happens around:

 (i)Layer A

Sufficient/excess air /oxygen enter through the air holes into the burner .It reacts with/oxidizes Carbon to carbon(IV)oxide

Chemical equation

 C(s) +  O2(g)  ->  CO2 (g)

 (ii)Layer B

Hot carbon(IV)oxide rises up and is reduced by more carbon/charcoal to carbon (II)oxide.

Chemical equation

 C(s) +  CO2(g)  ->  2CO (g)

 (ii)Layer C

Hot carbon(II)oxide rises up and burns with a blue flame to be oxidized by the excess air to form carbon(IV)oxide.

 2CO (g)  +  O2(g) ->  2CO2(g)

(b)State and explain what would happen if the burner is put in an enclosed room.

The hot poisonous /toxic carbon(II)oxide rising up will not be oxidized to Carbon(IV)oxide.

(c)Using a chemical test, describe how you would differentiate two unlabelled black solids suspected to be charcoal and copper(II)oxide.

Method I

 -Burn/Ignite the two substances separately.

 -Charcoal burns with a blue flame

 – Copper(II)oxide does not burn

Method II

 -Add dilute sulphuric(VI)acid/Nitric(V)acid/Hydrochloric acid separately.

 -Charcoal does not dissolve.

 – Copper(II)oxide dissolves to form a colourless solution.

5. Excess Carbon(II)oxide was passed over heated copper(II)oxide as in the set up shown below for five minutes.

Image From EcoleBooks.com

(a)State and explain the observations made in the combustion tube.

Observation

Colour change from black to brown

Explanation

Carbon (II)oxide reduces black copper(II)oxide to brown copper metal itself oxidized to Carbon(IV)oxide.

Chemical equation

CO(g)    + CuO (s)  ->   Cu(s)  +  CO2(g)

(black) (brown)

(b) (i)Name the gas producing flame A

   Carbon(II)oxide


(ii)Why should the gas be burnt?

   It is toxic/poisonous


(iii)Write the chemical equation for the production of flame A

 2CO(g)    + O2(g)  ->   2CO2(g)

(c)State and explain what happens when carbon(IV)oxide is prepared using Barium carbonate and dilute sulphuric(VI)acid.

Reaction starts then stops after sometime producing small/little quantity of carbon(IV)oxide gas.

Barium carbonate react with
dilute sulphuric(VI)acid to form insoluble Barium sulphate(VI) that cover/coat unreacted Barium carbonate stopping further reaction to produce more Carbon(IV)oxide.

(d) Using dot () and cross(x) to represent electrons show the bonding in a molecule of :

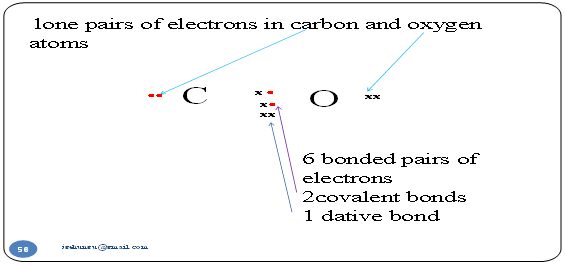

 (i) Carbon(II)oxide

Image From EcoleBooks.com

(ii) Carbon(IV)Oxide.

Image From EcoleBooks.com

(e) Carbon (IV)oxide is an environmental pollutant of global concern. Explain.

 -It is a green house gas thus causes global warming.

-It dissolves in water to form acidic carbonic acid which causes “acid rain”

(f)Explain using chemical equation why lime water is used to test for the presence of Carbon (IV) oxide instead of sodium hydroxide.

Using lime water/calcium hydroxide:

– a visible white precipitate of calcium carbonate is formed that dissolves on bubbling excess Carbon (IV) oxide gas

Chemical equation

Ca(OH)2(aq) + CO2 (g) -> CaCO3 (s) + H2O(l)

(white precipitate)

CaCO3 (aq) + H2O(l) + CO2 (g) -> Ca(HCO3) 2 (aq)

Using sodium hydroxide:

No precipitate of sodium carbonate is formed Both sodium carbonate and sodium hydrogen carbonate are soluble salts/dissolves.

Chemical equation

2NaOH (aq) + CO2 (g) -> Na2CO3 (s) + H2O(l)

(No white precipitate)

Na2CO3 (s) + H2O(l) + CO2 (g) -> 2NaHCO3 (s)


(g)Ethan-1,2-dioic acid and methanoic acid may be used to prepare small amount of carbon(II)oxide in a school laboratory.

(i) Explain the modification in the set up when using one over the other.

Before carbon(II)oxide is collected:

-when using methanoic acid, no concentrated sodium/potassium hydroxide is needed to absorb Carbon(IV)oxide.

-when using ethan-1,2-dioic acid, concentrated sodium/potassium hydroxide is needed to absorb Carbon(IV)oxide.

(ii)Write the equation for the reaction for the formation of carbon(II)oxide from:

I.Methanoic acid.

Chemical equation HCOOH(aq) -> CO(g) + H2O(l)



 II.
Ethan-1,2-dioic acid

Chemical equation HOOCCOOH(aq) -> CO2(g)+CO(g)+H2O(l)

(h)Both carbon(II)oxide and carbon(IV)oxide affect the environment. Explain why carbon(II)oxide is more toxic/poisonous.

-Both gases are colourless,denser than water and odourless.

-Carbon(II)oxide is preferentially absorbed by human/mammalian haemoglobin when inhaled forming stable carboxyhaemoglobin instead of oxyhaemoglobin.This reduces the free haemoglobin in the blood leading to suffocation and quick death.Carbon(IV)oxide is a green house gas that increases global warming.

-Carbon(II)oxide is readily oxidized to carbon(IV)oxide

6.Study the flow chart below and use it to answer the questions that follow.

Image From EcoleBooks.com



(a)Name:

 (i)the white precipitate A

Calcium carbonate

 (ii) solution B

Calcium hydrogen carbonate

 (iii) gas C

Carbon(IV)oxide

 (iv) white residue B

Calcium oxide

 (v) solution D

Calcium hydroxide/lime water

(b)Write a balanced chemical equation for the reaction for the formation of:

 (i) the white precipitate A from solution D

Chemical equation

Ca(OH)2(aq) + CO2 (g) -> CaCO3 (s) + H2O(l)

(ii) the white precipitate A from solution B

Chemical equation

Ca(HCO3)2(aq) -> CO2 (g) + CaCO3 (s) + H2O(l)

(iii) solution B from the white precipitate A

Chemical equation

CO2 (g) + CaCO3 (s) + H2O(l) -> Ca(HCO3)2(aq)

(iv) white residue B from the white precipitate A

Chemical equation

CaCO3(s) -> CO2 (g) + CaO (s)


(iv) reaction of white residue B with water

Chemical equation

  CaO (s) + H2O(l) -> Ca(OH)2(aq)









Share this:


EcoleBooks | Chemistry Form 3: CHEMISTRY OF CARBON

subscriber

Leave a Reply

Your email address will not be published. Required fields are marked *

Accept Our Privacy Terms.*
