CHAPTER THREE

TURNING EFFECT OF A FORCE

Turning effects

The turning effect of a body is called the moment of that force. The turning effect produced depends on both the size of the force and the distance from the pivot.

The moment of a force about a point is the product of the force applied and the perpendicular

distance from the pivot (or turning point) to the line of action of the force. Hence, Moments of a force = Force × perpendicular distance from pivot.

The law of moments

The law of moments states that “when a body is in balance or in equilibrium, the sum of the clockwise moments equals the sum of anti-clockwise moments”. The SI units of the moments of a force is Newton metre (Nm).

Examples

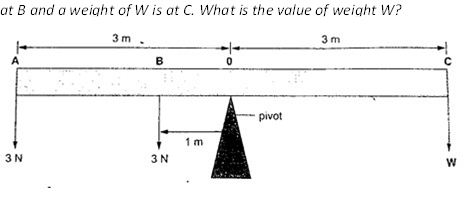

  1. A uniform rod of negligible mass balances when a weight of 3 N is at A, weight of 3 N is

    Image From EcoleBooks.com

    Solution

    Taking moments about the fulcrum, O then

    Anti-clockwise moments = (3 × 1) + (3 × 3)

          = 3 + 9 = 12 Nm

    Anti-clockwise moments = clockwise moments

         3 W = 12 Nm

          W = 4 N

    ecolebooks.com

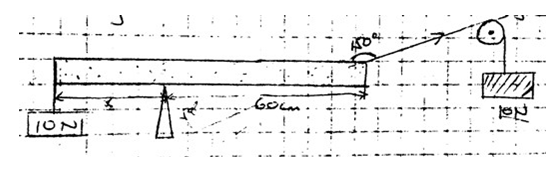

  2. The following bar is of negligible weight. Determine the value of ‘x‘ if the bar is balanced.

    Image From EcoleBooks.com



    Solution

    The distance from the turning point to the line of action can be determined as,

           60 cm    1500

    Image From EcoleBooks.com

    Clockwise moments = 10 × 30 = 300 N cm, Anticlockwise moments = 10 × ‘x‘ = 10 x. N cm.

    Using the principle of moments

    Anti-clockwise moments = clockwise moments  10 x = 300, hence x = 30 cm.

  3. Study the diagram below and determine the value of X and hence the length of the bar.



 Image From EcoleBooks.com

 Solution

 Clockwise moments = 15x N + 5(X × 20) N

 Anticlockwise moments = (20 × 10) + (60 × 10) N cm, = 800 N cm.

 Anti-clockwise moments = clockwise moments

     800 N cm = 15X + 5X + 100

     800 n cm = 20X + 100

       20X = 700

        X = 35 cm.

 Therefore, the length of the bar = 40 + 20 + 35 + 20 = 115 cm.











The lever

A lever is any device which can turn about a pivot or fulcrum. The applied force is called the effort and is used to overcome the resisting force called the load. We use the law of moments in the operation of levers.

 Image From EcoleBooks.com





Example

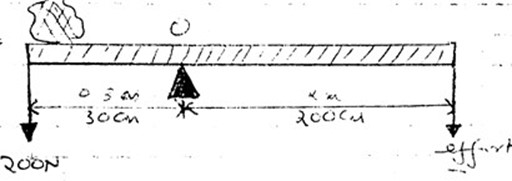

Consider the following diagram. (The bar is of negligible mass). Determine the effort applied.



 Image From EcoleBooks.com





Solution

Taking moments about O. Then, clockwise moments = effort × 200 cm.

Anticlockwise moments = 200 × 30 cm.

Effort = (200 × 30)/ 200 = 30 N.
