ELECTROCHEMISTRY



Electrochemistry can be defined as the study of the effects of electricity on a substance/ compound and how chemical reactions produce electricity. Electrochemistry therefore deals mainly with:

  1. Reduction and oxidation

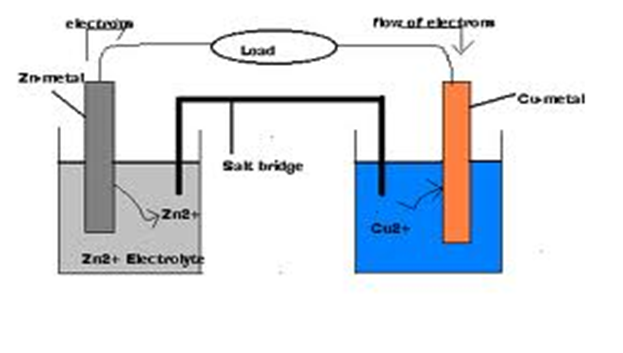

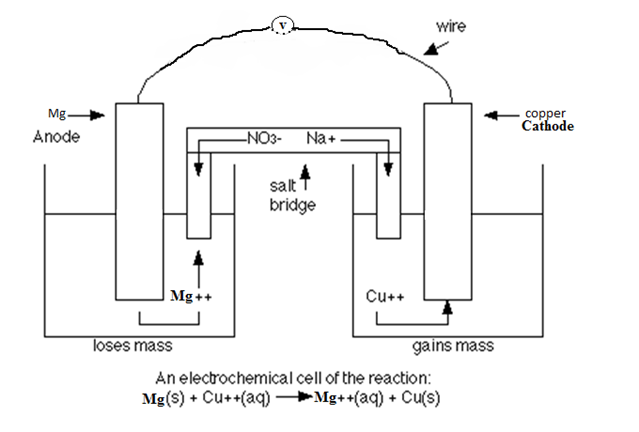

  2. Electrochemical (voltaic) cell

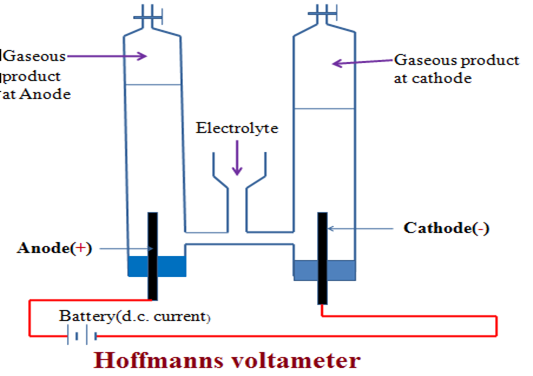

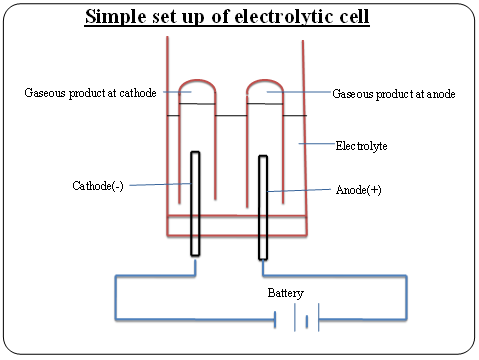

  3. Electrolysis (electrolytic) cell

(i)REDUCTION AND OXIDATION (REDOX)

1. In
teams of oxygen transfer:

i) Reduction is removal of oxygen.

ii) Oxidation is addition of oxygen.

iii) Redox is simultaneous addition and removal of oxygen.

iv) Reducing agent is the species that undergoes oxidation, therefore gains oxygen.

v) Oxidizing agent is the species that undergoes reduction, therefore looses/donates oxygen.

e.g. When hydrogen is passed through heated copper (II) oxide, it is oxidised to copper metal as in the equation below:

CuO (s) + H2 (g) -> Cu (s) + H2O (l)

(Oxidising agent) (Reducing agent)

2. In terms of hydrogen transfer:

i) Oxidation is the removal of hydrogen.

ii) Reduction is the addition of hydrogen.

ecolebooks.com

iii) Redox is simultaneous addition and removal of hydrogen.

iv) Reducing agent is the species that undergoes oxidation, therefore looses/ donates hydrogen.

v) Oxidizing agent is the species that undergoes reduction, therefore gains hydrogen.

e.g. When hydrogen sulphide gas is bubbled into a gas jar containing chlorine gas it is oxidized (loose the hydrogen) to sulphur (yellow solid). The chlorine is reduced (gain hydrogen) to hydrogen chlorine gas.

Cl2 (g) + H2S (g) -> S(S) + 2HCl (g)

(Oxidizing agent) (Reducing agent)

3. In terms of electron transfer:

i) Oxidation is donation/ loss/ removal of electrons.

ii) Reduction is gain/ accept/ addition of electrons.

iii) Redox is simultaneous gain/ accept/ addition and donation/ loss/ removal of electrons.

iv) Reducing agent is the species that undergoes oxidation, therefore looses/ donates electrons.

v) Oxidizing agent is the species that undergoes reduction, therefore gains/ accepts electrons.

Example

  1. Displacement of metals from their solutions:

Place 5cm3 each of Iron (II) sulphate (VI) solution into three different test tubes. Add about 1g of copper tunings / powder into one test tube then zinc and magnesium powders separately into the other test tubes. Shake thoroughly for 2 minutes each. Record any colour changes in the table below.



Metal added to Iron (II) sulphate (VI) solution

Colour changes

Copper

Solution remains green

Zinc

Green colour fades

Magnesium

Green colour fades

Explanation

-When a more reactive metal is added to a solution of less reactive metal, it displaces it from its solution.

-When a less reactive metal is added to a solution of a more reactive metal, it does not displace it from its solution.

-Copper is less reactive than iron therefore cannot displace iron its solution.

-Zinc is more reactive than iron therefore can displace iron from its solution.

-Magnesium is more reactive than iron therefore can displace iron from its solution.

In terms of electron transfer:

 – the more reactive metal undergoes oxidation (reducing agent) by donating/loosing electrons to form ions

 -the less reactive metal undergoes reduction (oxidizing agent) by its ions in solution gaining /accepting/acquiring the electrons to form the metal.

 -displacement of metals involves therefore electron transfer from a more reactive metal to ions of another less reactive metal.

 Examples

  1. Zn(s)   ->  Zn2+(aq) +   2e (oxidation/donation of electrons)

 Fe2+(aq) +   2e  ->   Fe(s) (reduction/gain of electrons)

Fe2+(aq) + Zn(s) -> Zn2+(aq) + Fe(s) (redox/both donation and gain of electrons)

  1. Mg(s)   ->  Mg2+(aq) +   2e (oxidation/donation of electrons)

 Fe2+(aq) +   2e  ->   Fe(s) (reduction/gain of electrons)

Fe2+(aq) + Mg(s) -> Mg2+(aq) + Fe(s) (redox/both donation and gain of electrons)

  1. Zn(s)   ->  Zn2+(aq) +   2e (oxidation/donation of electrons)

 Cu2+(aq) +   2e  ->   Cu(s) (reduction/gain of electrons)

Cu2+(aq) + Zn(s) -> Zn2+(aq) + Cu(s) (redox/both donation and gain of electrons)


  1. Fe(s)   ->  Fe2+(aq) +   2e (oxidation/donation of electrons)

 2Ag+(aq) +   2e  ->   2Ag(s) (reduction/gain of electrons)

2Ag+(aq) + Fe(s) -> Fe2+(aq) + 2Ag(s) (redox/both donation and gain of electrons)

  1. Zn(s)   ->  Zn2+(aq) +   2e (oxidation/donation of electrons)

    Cl2(g) +   2e  ->   2Cl(aq) (reduction/gain of electrons)

    Cl2(g) + Zn(s) -> Zn2+(aq) + 2Cl(aq)
    (redox/both donation and gain of electrons)

  2. 2Mg(s)   ->  2Mg2+(aq) +   4e (oxidation/donation of electrons)

    O2(g) +   4e  ->   2O2-(aq) (reduction/gain of electrons)

    O2(g) + 2Mg(s) -> 2Mg2+(aq) + 2O2-(aq)
    (redox/both donation and gain of electrons)

    Note

    (i)The number of electrons donated/lost MUST be equal to the number of electrons gained/acquired.

    (i)During displacement reaction, the colour of ions /salts fades but does not if displacement does not take place. e.g

    a)Green colour of Fe2+(aq) fades if Fe2+(aq) ions are displaced from their solution. Green colour of Fe2+(aq) appear if Fe/iron displaces another salt/ions from their solution.

    b)Blue colour of Cu2+(aq) fades if Cu2+(aq) ions are displaced from their solution and brown copper deposits appear. Blue colour of Cu2+(aq) appear if Cu/copper displaces another salt/ions from their solution.

    c)Brown colour of Fe3+(aq) fades if Fe3+(aq) ions are displaced from their solution. Brown colour of Fe3+(aq) appear if Fe/iron displaces another salt/ions from their solution to form Fe3+(aq).

    (iii)Displacement reactions also produce energy/heat. The closer/nearer the metals in the reactivity/electrochemical series the less energy/heat of displacement.

    (iv)The higher the metal in the reactivity series therefore the easier to loose/donate electrons and thus the stronger the reducing agent.

4. (a)In terms of oxidation number:

 i) Oxidation is increase in oxidation numbers.

 ii) Reduction is decrease in oxidation numbers.

iii) Redox is simultaneous increase in oxidation numbers of one species/substance and a decrease in oxidation numbers of another species/substance.

iv) Reducing agent is the species that undergoes oxidation, therefore increases its oxidation number.

v) Oxidizing agent is the species that undergoes reduction, therefore increases its oxidation number.

(b)The idea/concept of oxidation numbers uses/applies the following simple guideline rules:

Guidelines /rules applied in assigning oxidation number

1.Oxidation number of combined Oxygen is always -2 except in peroxides (Na2O2/H2O2) where its Oxidation number is -1

2.Oxidation number of combined Hydrogen is always +1except in Hydrides (NaH/KH) where its Oxidation number is -1

3.All atoms and molecules of elements have oxidation number 0 (zero)

Atom

Oxidation number

Molecule

Oxidation number

Na

0

Cl2

0

O

0

O2

0

H

0

H2

0

Al

0

N2

0

Ne

0

O3

0

K

0

P3

0

Cu

0

S8

0

4.All combined metals and non-metals have oxidation numbers equal to their valency /oxidation state e.g.

Metal/non-metal ion

Valency

Oxidation state

Oxidation number

Fe2+

2

-2

-2

Fe3+

3

-3

-3

Cu2+

2

-2

-2

Cu+

1

+1

+1

Cl

1

-1

-1

O2-

2

-2

-2

Na+

1

+1

+1

Al3+

3

+3

+3

P3-

3

-3

-3

Pb2+

2

+2

+2

5.Sum of oxidation numbers of atoms of elements making a compound is equal zero(0) e.g.

Using this rule ,an unknown oxidation number of an atom in a compound can be determined as below:

a) CuSO4 has-

-one atom of Cu with oxidation number +2( refer to Rule 4)

-one atom of S with oxidation number +6 ( refer to Rule 4)

six atoms of O each with oxidation number -2( refer to Rule 4)

Sum of oxidation numbers of atoms in CuSO4 = (+2 + +6 + (-2 x 6)) = 0

b) H2SO4 has-

-two atom of H each with oxidation number +1( refer to Rule 2)

-one atom of S with oxidation number +6 ( refer to Rule 4)

four atoms of O each with oxidation number -2( refer to Rule 4)

Sum of oxidation numbers of atoms in H2SO4 = (+2 + +6 + (-2 x 4)) = 0

c) KMnO4 has-

-one atom of K with oxidation number +1( refer to Rule 4)

-one atom of Mn with oxidation number +7 ( refer to Rule 4)

four atoms of O each with oxidation number -2( refer to Rule 4)

Sum of oxidation numbers of atoms in KMnO4 = (+1 + +7 + (-2 x 4)) = 0



Determine the oxidation number of:

I.Nitrogen in;

-NO => x + -2 = 0 thus x = 0 – (-2) = + 2

The chemical name of this compound is thus Nitrogen(II)oxide

-NO2 => x + (-2 x2)= 0 thus x = 0 – (-4) = + 4

The chemical name of this compound is thus Nitrogen(IV)oxide

-N2O => 2x + -2 = 0 thus 2x = 0 – (-2) = +2/2=
+1

The chemical name of this compound is thus Nitrogen(I)oxide

II. Sulphur in;

-SO2 => x + (-2 x2)= 0 thus x = 0 – (-4) = + 4

The chemical name of this compound is thus Sulphur(IV)oxide

-SO3 => x + (-2 x3)= 0 thus x = 0 – (-6) = + 6

The chemical name of this compound is thus Sulphur(VI)oxide

-H2SO4 = ((+1 x 2) + x + (-2 x 4)) thus x= 0-( +2 +-8) =+6

The chemical name of this compound is thus Sulphuric(VI)acid

-H2SO3 = ((+1 x 2) + x + (-2 x 3)) thus x= 0-( +2 +-6) =+4

The chemical name of this compound is thus Sulphuric(IV)acid

III. Carbon in;

-CO2 => x + (-2 x2)= 0 thus x = 0 – (-4) = + 4

The chemical name of this compound is thus carbon(IV)oxide

-CO => x + -2 = 0 thus x = 0 – -2 = + 2

The chemical name of this compound is thus carbon(II)oxide

-H2CO3 = ((+1 x 2) + x + (-2 x 3)) thus x= 0-( +2 +-6) =+4

The chemical name of this compound is thus Carbonic(IV)acid

IV.Manganese in;

-MnO2 => x + (-2 x2)= 0 thus x = 0 – (-4) = + 4

The chemical name of this compound is thus Manganese(IV)oxide

-KMnO4 = ((+1 + x + (-2 x 4)) thus x= 0-( +1 +-8) =+7

The chemical name of this compound is thus Potassium manganate(VII)

V.Chromium in;

– Cr2O3 => 2x + (-2 x 3)= 0 thus 2x = 0 – (-6) = +6 / 2= +3

The chemical name of this compound is thus Chromium(III)oxide

-K2Cr2O7 => (+1 x 2) + 2x + (-2 x7)= 0

thus 2x = 0 – +2 +-14 = +12 / 2= +6

The chemical name of this compound is thus Potassium dichromate(VI)

-K2CrO4 => (+1 x 2) + x + (-2 x4)= 0

thus 2x = 0 – +2 +-8 = +12 / 2= +6

The chemical name of this compound is thus Potassium chromate(VI)



6.The sum of the oxidation numbers of atoms of elements making a charged radical/complex ion is equal to its charge.

Using this rule ,the oxidation number of unknown atom of an element in a charged radical/complex ion can be determined as in the examples below;

a) SO42- has-

-one atom of S with oxidation number +6( refer to Rule 4)

four atoms of O each with oxidation number -2( refer to Rule 1)

Sum of oxidation numbers of atoms in SO42- = ( +6 + (-2 x 4)) = -2

The chemical name of this radical is thus sulphate(VI) ion

b) NO3 has-

-one atom of N with oxidation number +4( refer to Rule 4)

three atoms of O each with oxidation number -2( refer to Rule 1)

Sum of oxidation numbers of atoms in NO3 = ( +4 + (-2 x 3)) = -1

The chemical name of this radical is thus nitrate(IV) ion.

Determine the oxidation number of:

I.Nitrogen in;

-NO2 => x + (-2 x2)= -1 thus x = -1 – (-4) = + 3

The chemical name of this compound/ion/radical is thus Nitrate(III)ion

II. Sulphur in;

-SO32- => x + (-2 x3)= -2 thus x = -2 – (-6) = + 4

The chemical name of this compound/ion/radical is thus Sulphate(IV)ion

III. Carbon in;

-CO32- = x + (-2 x 3) = -2 thus x = -2 – (-6) = + 4

The chemical name of this compound/ion/radical is thus Carbonate(IV)ion

IV.Manganese in;

-MnO4
= x + (-2 x 4)= -1 thus x= -1-(-2 +-8) =+7

The chemical name of this compound/ion/radical is thus manganate(VII) ion

V.Chromium in

-Cr2O72- => 2x + (-2 x7)= -2

thus 2x = -2 – +2 +-14 = +12 / 2= +6

The chemical name of this compound/ion//radical is thus dichromate(VI) ion

-CrO42- => x + (-2 x4)= -2

thus x = -2 + (-2 x 4) = +6

The chemical name of this compound/ion//radical is thus chromate(VI) ion

(c)Using the concept/idea of oxidation numbers as increase and decrease in oxidation numbers , the oxidizing and reducing species/agents can be determined as in the following examples;

(i)  Cu2+ (aq)  + Zn(s)  ->  Zn2+ (aq)  + Cu(s)

Oxidation numbers ->  +2 0 +2 0

Oxidizing species/agents =>Cu2+ its oxidation number decrease from+2 to 0 in Cu(s)

Reducing species/agents => Zn2+ its oxidation number increase from 0 to +2 in Zn(s)

(ii)  2Br (aq)  + Cl2(g)  ->  2Cl (aq)  + Br2 (l)

Oxidation numbers ->  -1 0 -1 0

Oxidizing agent =>Cl2(g)
its oxidation number decrease from 0 to-1 in 2Cl (aq)

Reducing agents => Zn2+ its oxidation number increase from -1 to 0 in Zn(s)

(iii)  Br2 (l)  + Zn(s)  ->  Zn2+ (aq)  + 2Br(aq)

Oxidation numbers ->   0 0 +2 -1

Oxidizing agent =>
Br2 (l)
its oxidation number decrease from 0 to-1 in 2Br(aq)

Reducing agents => Zn(s)
its oxidation number increase from 0 to +2 in Zn2+

(iv)  2HCl (aq) + Mg(s) ->   MgCl2
(aq) + H2
(g)

Oxidation numbers -> 2 (+1 -1)   0 +2 2(-1) 0

Oxidizing agent => H+ in HClits oxidation number decrease from +1to 0 in H2
(g)

Reducing agents => Mg(s)
its oxidation number increase from 0 to +2 in Mg2+

(v) 2H2O (l) + 2Na(s) ->   2NaOH
(aq) + H2
(g)

Oxidation numbers -> +1 -2   0   +1 -2 +1 0

Oxidizing agent => H+ in H2O;its oxidation number decrease from +1to 0 in H2
(g)

Reducing agents => Na(s)
its oxidation number increase from 0 to +1 in Na+

(vi) 5Fe2+ (aq) + 8H+ (aq) + MnO4 -> 5Fe3+ (aq) + Mn2+ (aq) + 4H2O (l)  +2 +1 +7 -2   +3 +2   +1 -2

Oxidizing agent => Mn in MnO4its oxidation number decrease from +7to+2 in Mn2+

Reducing agents => Fe2+
its oxidation number increase from +2 to +3 in Fe3+

(vii) 6Fe2+ (aq) + 14H+ (aq) + Cr2O72-(aq) -> 6Fe3+ (aq) + Cr3+ (aq) + 7H2O (l)  +2 +1   +6 -2   +3 +3   +1 -2

Oxidizing agent:

Cr in Cr2O72- its oxidation number decrease from +6 to+3 in Cr3+

Reducing agents => Fe2+
its oxidation number increase from +2 to +3 in Fe3+

(viii) 2Fe2+ (aq) + 2H+ (aq) + H2O2(aq) -> 2Fe3+ (aq) + 2H2O (l)  +2 +1   +1 -1   +3 +1 -2

Oxidizing agent:

O in H2O2its oxidation number decrease from -1 to -2 in H2O

Reducing agents => Fe2+
its oxidation number increase from +2 to +3 in Fe3+

(ix) Cr2O72-(aq) + 6H+ (aq) + 5H2O2(aq) -> 2Cr3+ (aq) + 2H2O (l) + 5O2(g)

+6 -2 +1   +1 -1   +3 +1 -2   0

Oxidizing agents:

O in H2O2its oxidation number decrease from -1 to -2 in H2O


Cr in Cr2O72-
its
oxidation number decrease from +6 to +3 in
Cr3+

Reducing agents


O in H2O2its oxidation number increase from -1 to O in O2(g)


O in Cr2O72-
its
oxidation number increase from -2 to O in
O2(g)

(x) 2MnO4(aq) + 6H+ (aq) + 5H2O2(aq) -> 2Mn2+ (aq) + 8H2O (l) + 5O2(g)

+7 -2 +1   +1 -1   +2 +1 -2   0

Oxidizing agents:

O in H2O2its oxidation number decrease from -1 to -2 in H2O


Mn in MnO4
its
oxidation number decrease from +7 to +2 in
Mn2+

Reducing agents


O in H2O2its oxidation number increase from -1 to O in O2(g)


O in MnO4
its
oxidation number increase from -2 to O in
O2(g)



(ii)ELECTROCHEMICAL (VOLTAIC) CELL

1. When a metal rod/plate is put in a solution of its own salt, some of the metal ionizes and dissolve into the solution i.e.

M(s)   ->  M+(aq) + e ( monovalent metal)

M(s)   ->  M2+(aq) + 2e ( divalent metal)

M(s)   ->  M3+(aq) + 3e ( Trivalent metal)

The ions move into the solution leaving electrons on the surface of the metal rod/plate.

2.The metal rod becomes therefore negatively charged while its own solution
positively charged. As the positive charges of the solution increase, some of them recombine with the electrons to form back the metal atoms

M+(aq)  + e -> M(s)  ( monovalent metal)

M2+(aq) + 2e -> M(s)  (divalent metal)

M3+(aq) + 3e -> M(s)  (Trivalent metal)

3. When a metal rod/plate is put in a solution of its own salt, it constitutes/forms a half-cell. The tendency of metals to ionize differ from one metal to the other. The difference can be measured by connecting two half cells to form an electrochemical/voltaic cell as in the below procedure:

To set up an electrochemical /voltaic cell

To compare the relative tendency of metals to ionize

Place 50cm3 of 1M Zinc(II) sulphate(VI) in 100cm3 beaker. Put a clean zinc rod/plate into the solution. Place 50cm3 of 1M Copper(II) sulphate(VI) in another 100cm3 beaker. Put a clean copper rod/plate of equal area (length x width) with Zinc into the solution. Connect/join the two metals(to a voltmeter) using connecting wires. Dip a folded filter paper into a solution of Potassium nitrate(V) or sodium(I) chloride(I) until it soaks. Use the folded soaked filter paper to connect/join the two solutions in the two beakers. The whole set up should be as below



Image From EcoleBooks.com Image From EcoleBooks.com

Repeat the above procedure by replacing:

(i)Zinc half cell with Magnesium rod/plate/ribbon dipped in 50cm3 of IM magnesium (II) sulphate(VI) solution

(ii)Zinc half cell with Silver rod/plate/coin dipped in 50cm3 of IM silver(I) nitrate(V) solution

(iii)Copper half cell with Iron rod/plate/spoon dipped in 50cm3 of IM Iron (II) sulphate(VI) solution

Record the observations in the table below

Changes on the 1st metal rod (A)

Changes on the 2nd metal rod (B)

Changes on the 1st solution (A(aq))

Changes on the 2nd solution (B(aq))

Voltage/voltmeter reading(Volts)

Using Zn/Cu half cell

-The rod decrease in size /mass /dissolves/ erodes





-copper rod /plate increase in size /mass/ deposited





Zinc(II)sulphate

(VI)colour remain

colourless





Blue Copper (II)sulphate

(VI)colour fades. Brown solid/residue/ deposit








0.8

(Theoretical value=1.10V)

Using Mg/Cu half cell

-The rod decrease in size /mass /dissolves/ erodes





-copper rod /plate increase in size /mass/ deposited





Magnesium(II) sulphate(VI) colour remain

colourless





Blue Copper (II)sulphate

(VI)colour fades Brown solid/residue/ deposit








1.5

(Theoretical value=2.04V)

Using Ag/Cu half cell

-The rod increase in size /mass /deposited





-silver coin/ rod /plate increase in size /mass/ deposited





Blue Copper (II)sulphate

(VI)colour remains





Silver(I)nitrate

(V)colour remain

colourless





0.20

(Theoretical value=0.46V)

Using Fe/Cu half cell

-The rod decrease in size /mass /dissolves/ erodes





-copper rod /plate increase in size /mass/ deposited





Iron(II)sulphate

(VI)colour becomes more

green





Blue Copper (II)sulphate

(VI)colour fades.Brown solid/residue/ deposit








0.60

(Theoretical value=0.78V)

From the above observations ,it can be deduced that:

(i)in the Zn/Cu half-cell the;

 -Zinc rod/plate ionizes /dissolves faster than the copper rod/plate to form Zn2+

 Ionic equation  Zn(s) ->   Zn2+(aq)  +   2e

 -blue copper ions in the Copper (II)sulphate solution gains the donated electrons to form brown copper metal/atoms

 Ionic equation  Cu2+(aq)  +   2e  ->  Cu(s)

This reaction shows /imply the Zinc rod has a higher tendency to ionize than copper.The Zinc rod has a higher net accumulation of electrons and is more negative compared to the copper rod which has lower accumulation of electrons. The copper rod is therefore relatively more positive with respect to Zinc rod.

When the two half cells are connected , electrons therefore flow from the negative Zinc rod through the external wire to be gained by copper ions. This means a net accumulation/increase of Zn2+ positive ions on the negative half cell and a net decrease in Cu2+ positive ions on the positive half cell.

The purpose of the salt bridge therefore is:

 (i)complete the circuit

 (ii)maintain balance of charges /ions on both half cells.

For the negative half cell the NO3 /Cl from salt bridge decrease/neutralise the increased positive(Zn2+) ion.

For the positive half cell the Na+ / K+ from salt bridge increase the decreased positive(Cu2+) ion.



The voltmeter should theoretically register/read a 1.10Volts as a measure of the electromotive force (e.m.f) of the cell .Practically the voltage reading is lowered because the connecting wires have some resistance to be overcomed.

A combination of two half cells that can generate an electric current from a redox reaction is called a voltaic/electrochemical cell.

By convention a voltaic/electrochemical cell is represented;

  M(s) / M2+(aq) // N2+ (aq) / N(s)

(metal rod of M)(solution ofM)(solution ofN)(metal rod ofN)

Note;

a)(i)Metal M must be the one higher in the reactivity series.

(ii)It forms the negative terminal of the cell.

(iii)It must diagrammatically be drawn first on the left hand side when illustrating the voltaic/electrochemical cell.

b)(i)Metal N must be the one lower in the reactivity series.

(ii)It forms the positive terminal of the cell.

(iii)It must diagrammatically be drawn second/after/ right hand side when illustrating the voltaic/electrochemical cell.

Illustration of the voltaic/electrochemical cell.

(i)Zn/Cu cell

1. Zinc rod ionizes /dissolves to form Zn2+ ions at the negative terminal

 Zn(s) ->   Zn2+(aq)  +   2e

2. Copper ions in solution gain the donated electrons to form copper atoms/metal

Cu2+(aq)  +   2e  ->   Cu(s)

3.Overall redox equation

Cu2+(aq)  + Zn(s) ->   Zn2+(aq)  +  Cu(s)

4.cell representation.

Zn(s) / 1M, Zn2+(aq) // 1M,Cu2+(aq) / Cu(s) E0 = +1.10 V

5.cell diagram

Image From EcoleBooks.comImage From EcoleBooks.com

(ii)Mg/Cu cell

1. Magnesium rod ionizes /dissolves to form Mg2+ ions at the negative terminal

 Mg(s) ->   Mg2+(aq)  +   2e

2. Copper ions in solution gain the donated electrons to form copper atoms/metal

Cu2+(aq)  +   2e  ->   Cu(s)

3.Overall redox equation

Cu2+(aq)  + Mg(s) ->   Mg2+(aq)  +  Cu(s)

4.cell representation.

Mg(s) / 1M, Mg2+(aq) // 1M,Cu2+(aq) / Cu(s) E0 = +2.04 V

5.cell diagram.Image From EcoleBooks.com

(iii)Fe/Cu cell

1. Magnesium rod ionizes /dissolves to form Mg2+ ions at the negative terminal

 Fe(s) ->   Fe2+(aq)  +   2e

2. Copper ions in solution gain the donated electrons to form copper atoms/metal

Cu2+(aq)  +   2e  ->   Cu(s)

3.Overall redox equation

Cu2+(aq)  + Fe(s) ->   Fe2+(aq)  +  Cu(s)

4.cell representation.

Fe(s) / 1M, Fe2+(aq) // 1M,Cu2+(aq) / Cu(s) E0 = +0.78 V

5.cell diagram.

Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.com





(iv)Ag/Cu cell

1. Copper rod ionizes /dissolves to form Cu2+ ions at the negative terminal

 Cu(s) ->   Cu2+(aq)  +   2e

2. Silver ions in solution gain the donated electrons to form silver atoms/metal

2Ag+(aq)  +   2e  ->   2Ag(s)

3.Overall redox equation

2Ag+(aq)  + Cu(s) ->   Cu2+(aq)  +  2Ag(s)

4.cell representation.

Cu(s) / 1M, Cu2+(aq) // 1M,2Ag+(aq) / 2Ag(s) E0 = +0.46 V

5.cell diagram.

Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.com



Standard electrode potential (Eᶿ)

The standard electrode potential (Eᶿ) is obtained if the hydrogen half cell is used as reference. The standard electrode potential (Eᶿ) consist of inert platinum electrode immersed/dipped in 1M solution of (sulphuric(VI) acid) H+ ions. Hydrogen gas is bubbled on the platinum electrodes at:

(i)a temperature of 25oC

(ii)atmospheric pressure of 101300Pa/101300Nm-2/1atm/760mmHg/76cmHg

 (iii)a concentration of 1M(1moledm-3) of sulphuric(VI) acid/ H+ ions and 1M(1moledm-3) of the other half cell.


Hydrogen is adsorbed onto the surface of the platinum. An equilibrium/balance exist between the adsorbed layer of molecular hydrogen and H+ ions in solution to form a half cell.

½ H2 (g)   ====  H+ (aq)
+   e

The half cell representation is:

Pt,½ H2 (g)  / H+ (aq), 1M

The standard electrode potential (Eᶿ) is thus defined as the potential difference for a cell comprising of a particular element in contact with1M solution of its own ions and the standard hydrogen electrode.



If the other electrode has a higher/greater tendency to lose electrons than the hydrogen electrode, the electrode is therefore negative with respect to hydrogen electrode and its electrode potential has negative (Eᶿ) values.

If the other electrode has a lower/lesser tendency to lose electrons than the hydrogen electrode, the electrode is therefore positive with respect to hydrogen electrode and its electrode potential has positive (Eᶿ) values.

Table showing the standard electrode potential (Eᶿ) of some reactions

Reaction

(Eᶿ) values in volts

F2 (g)+ 2e -> 2F(aq)

+2.87

H2 O2 (aq)+ H+ (aq) +2e -> H2 O (l)

+1.77

Mn O4 (aq)+ 4H+ (aq) +3e -> MnO2 (s) +H2 O (l)

+1.70

2HClO (aq)+ 2H+ (aq) +2e -> Cl2
(aq) +2H2 O (l)

+1.59

Mn O4 (aq)+ 4H+ (aq) +5e -> Mn2+ (aq) +H2 O (l)

+1.51

Cl2 (g)+ 2e -> 2Cl(aq)

+1.36

Mn O2 (s)+ 4H+ (aq) +2e -> Mn2+ (aq) +2H2 O (l)

+1.23

Br2 (aq)+ 2e -> 2Br(aq)

+1.09

NO3 (aq)+ 2H+ (aq) + e -> NO2
(g) + H2 O (l)

+0.80

Ag+ (aq) + e -> Ag(s)

+0.80

Fe3+ (aq) + e -> Fe2+ (aq)

+0.77

2H+ (aq)+ O2 (g) -> H2 O2 (aq)

+0.68

I2 (aq)+ 2e -> 2I(aq)

+0.54

Cu2+ (aq) + 2e -> Cu(s)

+0.34

2H+ (aq) + 2e -> H2(g)

+0.00

Pb2+ (aq) + 2e -> Pb(s)

-0.13

Fe2+ (aq) + 2e -> Fe(s)

-0.44

Zn2+ (aq) + 2e -> Zn(s)

-0.77

Al3+ (aq) + 3e -> Al(s)

-1.66

Mg2+ (aq) + 2e -> Mg(s)

-2.37

Na+ (aq) + e -> Na(s)

-2.71

K+ (aq) + e -> K(s)

-2.92

Note:

(i)Eᶿ values generally show the possibility/feasibility of a reduction process/oxidizing strength.

(ii)The element/species in the half cell with the highest negative Eᶿ value easily gain / acquire electrons.

It is thus the strongest oxidizing agent and its reduction process is highly possible/feasible. The element/species in the half cell with the lowest positive Eᶿ value easily donate / lose electrons.

It is thus the strongest reducing agent and its reduction process is the least possible/feasible.

(iii)The overall redox reaction is possible/feasible is it has a positive (+) Eᶿ.

If the overall redox reaction is not possible/ not feasible/ forced, it has a negative (-) Eᶿ

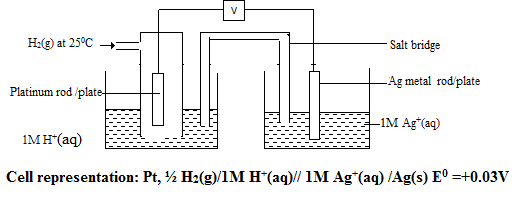

Sample standard electrochemical cell

Image From EcoleBooks.com

Calculation examples on Eᶿ

Calculate the Eᶿ value of a cell made of:

a)Zn and Cu

From the table above:

Cu2+ (aq) + 2e -> Cu(s) Eᶿ = +0.34V(higher Eᶿ /Right Hand Side diagram)

Zn2+ (aq) + 2e ->Zn(s) Eᶿ = -0.77V(lower Eᶿ/ Left Hand Side diagram)

Zn(s) ->Zn2+ (aq) + 2e Eᶿ = +0.77(reverse lower Eᶿ to derive cell reaction / representation)

Overall Eᶿ = Eᶿ higher- Eᶿ lower / Eᶿ RHS – Eᶿ LHS/ Eᶿoxidized- Eᶿ reduced

Substituting:


Overall Eᶿ = +0.34 – (- 0.77) = +1.10V

Overall redox equation:

Cu2+ (aq) + Zn(s) -> Zn2+ (aq) + Cu(s) Eᶿ = +1.10V

Overall conventional cell representation:

Zn(s) / Zn2+ (aq) 1M, // 1M,Cu2+ (aq) / Cu(s) Eᶿ = +1.10V



Image From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comImage From EcoleBooks.comOverall conventional cell diagram: Image From EcoleBooks.com

Zinc and copper reaction has a positive(+) overall Eᶿ therefore is possible/feasible and thus Zinc can displace/reduce Copper solution.

b)Mg and Cu

From the table above:

Cu2+ (aq) + 2e -> Cu(s) Eᶿ = +0.34V(higher Eᶿ /Right Hand Side diagram)

Mg2+ (aq) + 2e ->Mg(s) Eᶿ = -2.37V(lower Eᶿ/ Left Hand Side diagram)

Mg(s) ->Mg2+ (aq) + 2e Eᶿ = +2.37(reverse lower Eᶿ to derive cell reaction / representation)

Overall Eᶿ = Eᶿ higher- Eᶿ lower / Eᶿ RHS – Eᶿ LHS/ Eᶿ oxidized- Eᶿ reduced

Substituting:


Overall Eᶿ = +0.34 – (- 2.37) = +2.71V

Overall redox equation:

Cu2+ (aq) + Mg(s) -> Mg2+ (aq) + Cu(s) Eᶿ = +2.71V

Overall conventional cell representation:

Mg(s) / Mg2+ (aq) 1M, // 1M,Cu2+ (aq) / Cu(s) Eᶿ = +2.71V

c)Ag and Pb

From the table above:

2Ag+ (aq) + 2e -> 2Ag(s) Eᶿ = +0.80V(higher Eᶿ /Right Hand Side diagram)

Pb2+ (aq) + 2e ->Pb(s) Eᶿ = -0.13V(lower Eᶿ/ Left Hand Side diagram)

Pb(s) ->Pb2+ (aq) + 2e Eᶿ = +0.13(reverse lower Eᶿ to derive cell reaction / representation)

Overall Eᶿ = Eᶿ higher- Eᶿ lower / Eᶿ RHS – Eᶿ LHS/ Eᶿ oxidized- Eᶿ reduced

Substituting:


Overall Eᶿ = +0.80 – (- 0.13) = +0.93V

Overall redox equation:

2Ag+ (aq) + Pb(s) -> Pb2+ (aq) + 2Ag(s) Eᶿ = +0.93V

Overall conventional cell representation:

Pb(s) / Pb2+ (aq) 1M, // 1M,2Ag+ (aq) / Ag(s) Eᶿ = +0.93V

d)Chlorine and Bromine

From the table above:

2e + Cl2(g) ->2Cl(aq) Eᶿ = +1.36V(higher Eᶿ /Right Hand Side diagram)

2e + Br2(aq) ->2Br(aq) Eᶿ = +0.13V(lower Eᶿ/ Left Hand Side diagram)

2Br(aq) -> Br2(aq) + 2e Eᶿ = -0.13(reverse lower Eᶿ to derive cell reaction / representation)

Overall Eᶿ = Eᶿ higher- Eᶿ lower / Eᶿ RHS – Eᶿ LHS/ Eᶿ oxidized- Eᶿ reduced

Substituting:


Overall Eᶿ = – 0.13 – (- 1.36) = +1.23V

Overall redox equation:

2Br(aq) + Cl2(g) -> 2Cl(aq) + Br2(aq) Eᶿ = +1.23V

Overall conventional cell representation:

Cl2(g) / 2Cl(aq) 1M, // 1M, 2Br(aq) / Br2(aq) Eᶿ = +1.23V

Chlorine displaces bromine from bromine water. When chlorine gas is thus bubbled in bromine water, the pale green colour fades as displacement takes place and a brown solution containing dissolved bromine liquid is formed. This reaction is feasible /possible because the overall redox reaction has a positive Eᶿ value.

e)Strongest oxidizing agent and the strongest reducing agent.

From the table above:

2e + F2(g) ->2F(aq) Eᶿ = +2.87V(highest Eᶿ /strongest oxidizing agent)

2e + 2K+ (aq) ->2K
(aq) Eᶿ = -2.92V(lowest Eᶿ/ strongest reducing agent)

2K
(aq) -> 2K+ (aq) + 2e Eᶿ = +2.92V (reverse lower Eᶿ to derive cell reaction / representation)

Overall Eᶿ = Eᶿ higher- Eᶿ lower / Eᶿ RHS – Eᶿ LHS/ Eᶿ oxidized- Eᶿ reduced

Substituting:


Overall Eᶿ = +2.87 – (-2.92) = +5.79V

Overall redox equation:

F2(g) + 2K(s) -> 2F(aq) + 2K+ (aq) Eᶿ = +5.79V

Overall conventional cell representation:

2K(s) / 2K+ (aq),1M, // 1M, 2F(aq) / F2(g) Eᶿ = +5.79V

The redox reactions in an electrochemical/voltaic is commercially applied to make the:

 (a)Dry /primary/Laclanche cell.

 (b)Wet /secondary /accumulators.

(a)Dry/primary/Laclanche cell

Examine a used dry cell.

Note the positive and the negative terminal of the cell. Carefully using a knife cut a cross section from one terminal to the other.

The dry cell consist of a Zinc can containing a graphite rod at the centre surrounded by a paste of;

-Ammonium chloride

-Zinc chloride

-powdered manganese (IV) oxide mixed with Carbon.

Zinc acts/serve as the negative terminal where it ionizes/dissociates:

Image From EcoleBooks.com

Zn(s)   ->  Zn2+(aq) + 2e

Ammonium ions in ammonium chloride serve as the positive terminal where it is converted to ammonia gas and hydrogen gas.

 2NH4+(aq) + 2e -> 2NH3(g) + H2(g)

Ammonia forms a complex salt / compound /(Zn(NH3) 4)2+ (aq) / tetramminezinc(II) complex with the Zinc chloride in the paste.

Manganese (IV) oxide oxidizes the hydrogen produced at the electrodes to water preventing any bubbles from coating the carbon terminal which would reduce the efficiency of the cell.

Ammonium chloride is used as paste because the solid does not conduct electricity because the ions are fused/not mobile.

Since the reactants are used up, the dry /primary /Laclanche cell cannot provide continous supply of electricity.The process of restoring the reactants is called recharging.

b)Wet/Secondary/Accumulators

1. Wet/Secondary/Accumulators are rechargeable unlike dry /primary /Laclanche cells.Wet/Secondary/Accumulators are made up of:

 (i)Lead plate that forms the negative terminal

 (ii)Lead(IV) oxide that forms the positive terminal

2.The two electrodes are dipped in concentrated sulphuric(VI) acid of a relative density 1.2/1.3

3.At the negative terminal,lead ionizes /dissolves;

  Pb(s) -> Pb2+ + 2e

4.At the positive terminal,

(i)
Lead(IV) oxide reacts with the hydrogen ions in sulphuric(VI)acid to form Pb2+ (aq) ions;

 PbO2(s) + 4H+(aq) + 2e -> Pb2+ (aq) +
H2O(l)

 (ii) Pb2+ (aq) ions formed instantly react with sulphate (VI) ions/
SO42- (aq) from sulphuric (VI)acid to form insoluble Lead(II) sulphate (VI).

Pb2+ (aq) + SO42- (aq) -> PbSO4(s)

5.The overall cell reaction is called discharging

PbO2(s) +Pb(s) + 4H+(aq) + 2SO42- (aq)-> 2PbSO4(s) + 2H2O(l)
Eᶿ = +2.0V

6.The insoluble Lead(II) sulphate (VI) formed should not be left for long since fine Lead(II) sulphate (VI) will change to a course non-reversible and inactive form making the cell less efficient.

As the battery discharges ,lead and lead(IV)oxide are depleted/finished/reduced and the concentration of sulphuric(VI)acid decreases.

  1. During recharging, the electrode reaction is reversed as below:

    2PbSO4(s) + 2H2O(l) ->PbO2(s) +Pb(s) + 4H+(aq) + 2SO42- (aq)

8. A car battery has six Lead-acid cells making a total of 12 volts.





(iii)ELECTROLYSIS (ELECTROLYTIC CELL)

1.Electrolysis is defined simply as the decomposition of a compound by an electric current/electricity.

A compound that is decomposed by an electric current is called an electrolyte. Some electrolytes are weak while others are strong.

2.Strong electrolytes are those that are fully ionized/dissociated into (many) ions. Common strong electrolytes include:

 (i)all mineral acids

 (ii)all strong alkalis/sodium hydroxide/potassium hydroxide.

 (iii)all soluble salts

3.Weak electrolytes are those that are partially/partly ionized/dissociated into (few) ions.

Common weak electrolytes include:

 (i)all organic acids

 (ii)all bases except sodium hydroxide/potassium hydroxide.

 (iii)Water



4. A compound that is not decomposed by an electric current is called non-electrolyte. Non-electrolytes are those compounds /substances that exist as molecules and thus cannot ionize/dissociate into(any) ions .

Common non-electrolytes include:

 (i) most organic solvents (e.g. petrol/paraffin/benzene/methylbenzene/ethanol)

 (ii)all hydrocarbons(alkanes /alkenes/alkynes)

 (iii)Chemicals of life(e.g. proteins, carbohydrates, lipids, starch, sugar)

5. An electrolytes in solid state have fused /joined ions and therefore do not conduct electricity but the ions (cations and anions) are free and mobile in molten and aqueous (solution, dissolved in water) state.

6.During electrolysis, the free ions are attracted to the electrodes. An electrode is a rod through which current enter and leave the electrolyte during electrolysis. An electrode that does not influence/alter the products of electrolysis is called an inert electrode.


Common inert electrodes include:

 (i)Platinum

 (ii)Carbon graphite

Platinum is not usually used in a school laboratory because it is very expensive. Carbon graphite is easily/readily and cheaply available (from used dry cells).

7.The positive electrode is called Anode.The anode is the electrode through which current enter the electrolyte/electrons leave the electrolyte

8.The negative electrode is called Cathode. The cathode is the electrode through which current leave the electrolyte / electrons enter the electrolyte

9. During the electrolysis, free anions are attracted to the anode where they lose /donate electrons to form neutral atoms/molecules. i.e.



M(l)  ->  M+(l) + e (for cations from molten electrolytes)

M(s)  ->  M+(aq) + e (for cations from electrolytes in aqueous state / solution / dissolved in water)

The neutral atoms /molecules form the products of electrolysis at the anode. This is called discharge at anode

10. During electrolysis, free cations are attracted to the cathode where they gain /accept/acquire electrons to form neutral atoms/molecules.

X+ (aq) + 2e -> X(s) (for cations from electrolytes in aqueous state / solution / dissolved in water)

2X+ (l) + 2e -> X (l) (for cations from molten electrolytes)

The neutral atoms /molecules form the products of electrolysis at the cathode. This is called discharge at cathode.

11. The below set up shows an electrolytic cell.



Image From EcoleBooks.com

Image From EcoleBooks.com

















12. For a compound /salt containing only two ion/binary salt the products of electrolysis in an electrolytic cell can be determined as in the below examples:

Image From EcoleBooks.com

a)To determine the products of electrolysis of molten Lead(II)chloride

(i)Decomposition of electrolyte into free ions;

 PbCl2 (l) ->  Pb 2+(l) + 2Cl(l)

(Compound decomposed into free cation and anion in liquid state)

(ii)At the cathode/negative electrode(-);

  Pb 2+(l) + 2e -> Pb (l)

(Cation / Pb 2+ gains / accepts / acquires electrons to form free atom)

(iii)At the anode/positive electrode(+);

 2Cl(l) -> Cl2 (g) + 2e

(Anion / Cldonate/lose electrons to form free atom then a
gas molecule)

(iv)Products of electrolysis therefore are;

 I.At the cathode grey beads /solid lead metal.

 II.At the anode pale green chlorine gas.

b)To determine the products of electrolysis of molten Zinc bromide

(i)Decomposition of electrolyte into free ions;

 ZnBr2 (l) ->  Zn 2+(l) + 2Br(l)

(Compound decomposed into free cation and anion in liquid state)

(ii)At the cathode/negative electrode(-);

  Zn 2+(l) + 2e -> Zn(l)

(Cation / Zn2+ gains / accepts / acquires electrons to form free atom)

(iii)At the anode/positive electrode(+);

 2Br(l) -> Br2 (g) + 2e

(Anion / Brdonate/lose electrons to form free atom then a
liquid molecule which
change to gas on heating)

(iv)Products of electrolysis therefore are;

 I.At the cathode grey beads /solid Zinc metal.

 II.At the anode red bromine liquid / red/brown bromine gas.



c)To determine the products of electrolysis of molten sodium chloride

(i)Decomposition of electrolyte into free ions;

 NaCl (l) ->  Na +(l) + Cl(l)

(Compound decomposed into free cation and anion in liquid state)

(ii)At the cathode/negative electrode(-);

  2Na+(l) + 2e -> Na (l)

(Cation / Na+ gains / accepts / acquires electrons to form free atom)

(iii)At the anode/positive electrode(+);

 2Cl(l) -> Cl2 (g) + 2e

(Anion / Cldonate/lose electrons to form free atom then a
gas molecule)

(iv)Products of electrolysis therefore are;

 I.At the cathode grey beads /solid sodium metal.

 II.At the anode pale green chlorine gas.

d)To determine the products of electrolysis of molten Aluminium (III)oxide

(i)Decomposition of electrolyte into free ions;

 Al2O3 (l) ->  2Al 3+(l) + 3O2-(l)

(Compound decomposed into free cation and anion in liquid state)

(ii)At the cathode/negative electrode(-);

 4Al 3+ (l) + 12e -> 4Al (l)

(Cation / Al 3+ gains / accepts / acquires electrons to form free atom)

(iii)At the anode/positive electrode(+);

 6O2-(l) -> 3O2 (g) + 12e

(Anion /6O2- donate/lose 12 electrons to form free atom then three
gas molecule)

(iv)Products of electrolysis therefore are;

 I.At the cathode grey beads /solid aluminium metal.

 II.At the anode colourless gas that relights/rekindles glowing splint.

13. For a compound /salt mixture containing many ions in an electrolytic cell, the discharge of ions in the cell depend on the following factors:

  1. Position of cations and anions in the electrochemical series

1. Most electropositive cations require more energy to reduce (gain electrons) and thus not readily discharged. The higher elements /metals in the electrochemical series the less easily/readily it is discharged at the cathode in the electrolytic cell.

Table I showing the relative ease of discharge of cations in an electrolytic cell

K+(aq)  + e -> K(s) (least readily/easily discharged)

Na+(aq)  + e -> Na(s)

Ca2+(aq)  + 2e -> Ca(s)

Mg2+(aq)  + 2e -> Mg(s)

Al3+(aq)  + 3e -> Al(s)

Zn2+(aq)  + 2e -> Zn(s)

Fe2+(aq)  + 2e -> Fe(s)

Pb2+(aq)  + 2e -> Pb(s)

2H+(aq)  + 2e -> H2(g)  (hydrogen is usually “metallic”)

Cu2+(aq)  + 2e -> Cu(s)

Hg2+(aq)  + 2e -> Hg(s)

Ag+(aq)  + e -> Ag(s) (most readily/easily discharged)

2.The OH ion is the most readily/easily discharged anion . All the other anionic radicals(SO42- ,SO32- ,CO32- ,HSO4 ,HCO3,NO3,PO43-)are not/never discharged. The ease of discharge of halogen ions increase down the group.

Table II showing the relative ease of discharge of anions in an electrolytic cell

4OH (aq) -> 2H2O(l) + O2 (g) + 4e (most readily/easily discharged)

2 I(aq)  -> I2(aq) + 2e

2 Br(aq)  -> Br2(aq) + 2e

2 Cl(aq)  -> Cl2(aq) + 2e

2 F(aq)  -> F2(aq) + 2e

 SO42- ,SO32- ,CO32- ,HSO4 ,HCO3,NO3,PO43-
not/never/rarely discharged.

3.(a)When two or more cations are attracted to the cathode, the ion lower in the electrochemical series is discharged instead of that which is higher as per the table I above. This is called selective/preferential discharge at cathode.

(b)When two or more anions are attracted to the anode, the ion higher in the electrochemical series is discharged instead of that which is lower as per the table I above. This is called selective/preferential discharge at anode.

4.The following experiments shows the influence /effect of selective/preferential discharge on the products of electrolysis:

 (i)Electrolysis of acidified water/dilute sulphuric(VI) acid

Fill the Hoffmann voltameter with dilute sulphuric(VI) acid. Connect the Hoffmann voltameter to a d.c. electric supply. Note the observations at each electrode.

Electrolytic cell set up during electrolysis of acidified water/dilute sulphuric(VI) acid





Image From EcoleBooks.com

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

H2 SO4(aq) -> SO42-(aq) + 2H+(aq)

II. Name the ions in acidified water that are attracted/move to:

Cathode-
H+(aq) from either sulphuric(VI) acid
(H2 SO4) or water
(H2O)



AnodeSO42-(aq) from sulphuric (VI) acid
(H2 SO4) and OH (aq) from water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  4H+(aq)  + 4e -> 2H2(g)

Anode  4OH (aq) -> 2H2O(l) + O2 (g) + 4e

(4OHions selectively discharged instead of SO42- ions at the anode)

IV. Name the products of electrolysis of acidified water.


Cathode-Hydrogen gas
(colourless gas that extinguishes burning splint with explosion/ “pop” sound

Anode-Oxygen gas
(colourless gas that relights /rekindles glowing splint)

V. Explain the difference in volume of products at the cathode and anode.

The four(4) electrons donated/lost by OH
ions to form 1 molecule/1volume/1mole of oxygen (O2)gas at the anode are gained/acquired/accepted by the four H+(aq) ions
to form 2 molecule/2volume/2mole of Hydrogen (H2)gas at the cathode.

The volume of Oxygen gas at the anode is thus a half the volume of Hydrogen produced at the cathode/ The volume of Hydrogen gas at the cathode is thus a twice the volume of Oxygen produced at the anode.

VI. Why is electrolysis of dilute sulphuric(VI) acid called “electrolysis of (acidified) water”?

The ratio of H2 (g): O2 (g) is 2:1 as they are combined in water. This implies/means that water in the electrolyte is being decomposed into hydrogen and Oxygen gases. The electrolysis of dilute sulphuric acid is therefore called “electrolysis of acidified water.”

VI. Explain the changes in concentration of the electrolyte during electrolysis of acidified water”

The concentration of dilute sulphuric (VI) acid increases. Water in the electrolyte is decomposed into Hydrogen and Oxygen gases that escape. The concentration /mole of acid present in a given volume of solution thus continue increasing/rising.

(ii)Electrolysis of Magnesium sulphate(VI) solution

Fill the Hoffmann voltameter with dilute sulphuric(VI) acid. Connect the Hoffmann voltameter to a d.c. electric supply. Note the observations at each electrode.

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

Mg SO4(aq) -> SO42-(aq) + Mg2+(aq)

II. Name the ions in Magnesium sulphate(VI) solution that are attracted/move to:

Cathode-
Mg2+(aq) from
Magnesium sulphate(VI) solution (Mg SO4) and H+(aq) from
water
(H2O)



AnodeSO42-(aq) from
Magnesium sulphate(VI) solution (Mg SO4) and OH (aq) from water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  4H+(aq)  + 4e -> 2H2(g)

H+ ions selectively discharged instead of Mg2+ ions at the cathode)



Anode  4OH (aq) -> 2H2O(l) + O2 (g) + 4e

(4OHions selectively discharged instead of SO42- ions at the anode)

IV. Name the products of electrolysis of Magnesium sulphate(VI) solution

Cathode-Hydrogen gas
(colourless gas that extinguishes burning splint with explosion/ “pop” sound

Anode-Oxygen gas
(colourless gas that relights /rekindles glowing splint)

V. Explain the difference in volume of products at the cathode and anode.

The four(4) electrons donated/lost by OH
ions to form 1 molecule/1volume/1mole of oxygen (O2)gas at the anode are gained/acquired/accepted by the four H+(aq) ions
to form 2 molecule/2volume/2mole of Hydrogen (H2)gas at the cathode.

The volume of Oxygen gas at the anode is thus a half the volume of Hydrogen produced at the cathode/ The volume of Hydrogen gas at the cathode is thus a twice the volume of Oxygen produced at the anode.

VI. Explain the changes in concentration of the electrolyte during electrolysis of Magnesium sulphate(VI) solution

The concentration of dilute Magnesium sulphate(VI) solution increases.

The ratio of H2 (g): O2 (g) is 2:1 as they are combined in water.

Water in the electrolyte is decomposed into Hydrogen and Oxygen gases that escape as products.

The concentration /mole of acid present in a given volume of Magnesium sulphate(VI) solution thus continue increasing/rising.

The set – up below was used during the electrolysis of aqueous magnesium sulphate using inert electrodes.

Image From EcoleBooks.com

















Name a suitable pair of electrodes for this experiment

Identify the ions and cations in the solution

On the diagram label the cathode

Write ionic equations for the reactions that took place at the anode.

Explain the change that occurred to the concentration of magnesium sulphate solution during the experience.

During the electrolysis a current of 2 amperes was passed through the solution for 4 hours. Calculate the volume of the gas produced at the anode.(1 faraday 96500 coulombs and volume of a gas at room temperature is 24000cm3)

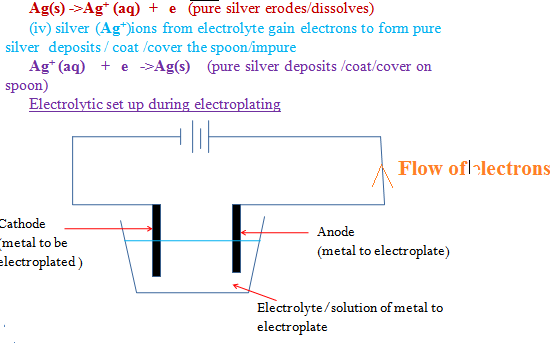

One of the uses of electrolysis is electroplating

What is meant by electroplating?

Give tow reasons why electroplating is necessary.

  1. Concentration of the electrolytes

1.High concentrations of cations and/or anions at the electrodes block the ion/s that is likely to be discharged at the electrode. This is called over voltage. A concentrated solution therefore produces different products of electrolysis from a dilute one.

2. The following experiments show the influence/effect of concentration of electrolyte on the products of electrolysis.

(i)Electrolysis of dilute and concentrated(brine)sodium chloride solution

I. Dissolve about 0.5 g of pure sodium chloride crystals in 100cm3 of water. Place the solution in an electrolytic cell. Note the observations at each electrode for 10 minutes. Transfer the set up into a fume chamber/open and continue to make observations for a further 10 minute.

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

NaCl(aq) -> Cl(aq) + Na+(aq)

II. Name the ions in sodium chloride solution that are attracted/move to:

Cathode-
Na+(aq) from
Sodium chloride solution (NaCl) and H+(aq) from
water
(H2O)



AnodeCl(aq) from
sodiumchloride solution (NaCl) and OH (aq) from water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  4H+(aq)  + 4e -> 2H2(g)

H+ ions selectively discharged instead of Na+ ions at the cathode)

Anode  4OH (aq) -> 2H2O(l) + O2 (g) + 4e

(4OHions selectively discharged instead of Cl ions at the anode)

IV. Name the products of electrolysis of dilute sodium chloride solution

Cathode-Hydrogen gas
(colourless gas that extinguishes burning splint with explosion/ “pop” sound

Anode-Oxygen gas
(colourless gas that relights /rekindles glowing splint)

V. Explain the difference in volume of products at the cathode and anode.

Four(4) electrons donated/lost by OH
ions to form 1 molecule/1volume/1mole of oxygen (O2)gas at the anode are gained/acquired/accepted by four H+(aq) ions
to form 2 molecule/2volume/2mole of Hydrogen (H2)gas at the cathode.

The volume of Oxygen gas at the anode is half the volume of Hydrogen produced at the cathode/ The volume of Hydrogen gas at the cathode is twice the volume of Oxygen produced at the anode.

VI. Explain the changes in concentration of the electrolyte during electrolysis of sodium chloride solution

The concentration of dilute sodium chloride solution increases.

The ratio of H2 (g): O2 (g) is 2:1 as they are combined in water. Water in the electrolyte is decomposed into Hydrogen and Oxygen gases that escape as products. The concentration /moles of salt present in a given volume of sodium chloride solution continue increasing/rising.

II. Dissolve about 20 g of pure sodium chloride crystals in 100cm3 of water. Place the solution in an electrolytic cell. Note the observations continuously at each electrode for 30 minutes in a fume chamber/open.

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

NaCl(aq) -> Cl(aq) + Na+(aq)



II. Name the ions in sodium chloride solution that are attracted/move to:

Cathode-
Na+(aq) from
Sodium chloride solution (NaCl) and H+(aq) from
water
(H2O)



AnodeCl(aq) from
sodium chloride solution (NaCl) and OH (aq) from water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  2H+(aq)  + 2e -> H2(g)

H+ ions selectively discharged instead of Na+ ions at the cathode)

Anode  2Cl (aq) -> Cl2(g) + 4e

(Clions with a higher concentration block the discharge of OH ions at the anode)

IV. Name the products of electrolysis of concentrated sodium chloride solution/brine

Cathode-Hydrogen gas
(colourless gas that extinguishes burning splint with explosion/ “pop” sound

Anode-Chlorine gas(pale green gas that bleaches damp/moist/wet litmus papers)

V. Explain the difference in volume of products at the cathode and anode.

Two (2) electrons donated/lost by Cl
ions to form 1 molecule/1volume/1mole of Chlorine (Cl2)gas at the anode are gained/acquired/accepted by two H+(aq) ions
to form 1 molecule/1volume/1mole of Hydrogen (H2)gas at the cathode.

The volume of Chlorine gas at the anode is equal to the volume of Hydrogen produced at the cathode/ The volume of Hydrogen gas at the cathode is equal to the volume of Chlorine produced at the anode.

VI. Explain the changes in concentration of the electrolyte during electrolysis of concentrated sodium chloride solution/brine

The concentration of concentrated sodium chloride solution/brine increases.

The ratio of Cl2 (g): H2 (g) is 1:1 as they are combined in water.

Water in the electrolyte is decomposed into only Hydrogen gas that escapes as products at cathode.

The concentration /moles of OH (aq) and Na+ ion (as NaOH) present in a given volume of electrolyte continue increasing/rising.

This makes the electrolyte strongly alkaline with high pH.

As the electrolysis of brine continues the concentration of Cl ions decrease and oxygen gas start being liberated at anode.

The electrolyte pH is thus lowered and the concentration of brine starts again increasing.

(ii)Electrolysis of dilute and concentrated Hydrochloric acid solution

I. Prepare about 50cm3 of 0.05 M of dilute Hydrochloric acid in 100cm3 solution. Place the solution in an electrolytic cell. Note the observations at each electrode for 10 minutes.

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

HCl(aq)  -> Cl(aq)   + H+(aq)

II. Name the ions in dilute Hydrochloric acid solution that are attracted/move to:

Cathode-
H+(aq) from
dilute Hydrochloric acid (HCl) and H+(aq) from
water
(H2O)



AnodeCl(aq) from
dilute Hydrochloric acid (HCl) and OH (aq) from water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  4H+(aq)  + 4e -> 2H2(g)

H+ ions selectively discharged instead of Na+ ions at the cathode)

Anode  4OH (aq) -> H2O(l) +O2+ 4e

(4OHions selectively discharged instead of Cl ions at the anode)

IV. Name the products of electrolysis of dilute Hydrochloric acid

Cathode-Hydrogen gas
(colourless gas that extinguishes burning splint with explosion/ “pop” sound

Anode-Oxygen gas
(colourless gas that relights /rekindles glowing splint)

V. Explain the difference in volume of products at the cathode and anode.

Four(4) electrons donated/lost by OH
ions to form 1 molecule/1volume/1mole of oxygen (O2)gas at the anode are gained/acquired/accepted by four H+(aq) ions
to form 2 molecule/2volume/2mole of Hydrogen (H2)gas at the cathode.

The volume of Oxygen gas at the anode is half the volume of Hydrogen produced at the cathode/ The volume of Hydrogen gas at the cathode is twice the volume of Oxygen produced at the anode.

VI. Explain the changes in concentration of the electrolyte during electrolysis of dilute Hydrochloric acid

The concentration of dilute Hydrochloric acid increases.

The ratio of H2 (g): O2 (g) is 2:1 as they are combined in water. Water in the electrolyte is decomposed into Hydrogen and Oxygen gases that escape as products. The concentration /moles of HCl present in a given volume of dilute Hydrochloric acid continue increasing/rising.

II. Prepare about 50cm3 of 2M of Hydrochloric acid in 100cm3 solution. Place the solution in an electrolytic cell. Note the observations at each electrode for 30 minutes

CautionThis experiment should be done in the open/fume chamber.

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

HCl(aq)  -> Cl(aq)   + H+(aq)



II. Name the ions in 2M Hydrochloric acid solution that are attracted/move to:

Cathode-
H+(aq) from
dilute Hydrochloric acid (HCl) and H+(aq) from
water
(H2O)



AnodeCl(aq) from
dilute Hydrochloric acid (HCl) and OH (aq) from water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  4H+(aq)  + 4e -> 2H2(g)

H+ ions selectively discharged instead of Na+ ions at the cathode)

Anode  2Cl (aq) -> Cl2+ 2e

(OHions concentration is low.Cl ions concentration is higher at the anode thus cause over voltage/block discharge of OHions)

IV. Name the products of electrolysis of 2M Hydrochloric acid

Cathode-Hydrogen gas
(colourless gas that extinguishes burning splint with explosion/ “pop” sound

Anode-Chlorine gas
(Pale green gas that bleaches blue/red moist/wet/damp litmus papers)

V. Explain the difference in volume of products at the cathode and anode.

Two(2) electrons donated/lost by Cl
ions to form 1 molecule/1volume/1mole of Chlorine (Cl2)gas at the anode are gained/acquired/accepted by two H+(aq) ions
to form 1 molecule/1volume/1mole of Hydrogen (H2)gas at the cathode.

The volume of Chlorine gas at the anode is equal to the volume of Hydrogen produced at the cathode/ The volume of Hydrogen gas at the cathode is twice the volume of Chlorine produced at the anode.

VI. Explain the changes in concentration of the electrolyte during electrolysis of 2M Hydrochloric acid

The concentration of Hydrochloric acid decreases.

The ratio of H2 (g): Cl2 (g) is 1:1 as they are combined in Hydrochloric acid.

Water in the electrolyte is decomposed only into Hydrogen gas that escapes as products at the cathode.

There is a net accumulation of excess OH (aq) ions in solution.

This makes the electrolyte strongly alkaline with high pH.

  1. Nature of electrodes used in the electrolytic cell

Inert electrodes (carbon-graphite and platinum) do not alter the expected products of electrolysis in an electrolytic cell. If another/different electrode is used in the electrolytic cell it alters/influences/changes the expected products of electrolysis.

The examples below illustrate the influence of the nature of electrode on the products of electrolysis:

(i)Electrolysis of copper(II) sulphate(VI) solution

I. Using carbon-graphite electrodes

Weigh Carbon -graphite electrodes. Record the masses of the electrodes in table I below. Place the electrodes in 1M
copper(II) sulphate(VI) solution in a beaker. Set up an electrolytic cell.

Close the switch and pass current for about 20 minutes. Observe each electrode and any changes in electrolyte. Remove the electrodes from the electrolyte. Wash with acetone/propanone and allow them to dry. Reweigh each electrode.

Sample results

Mass of cathode before electrolysis

23.4 g

Mass of anode before

electrolysis

22.4 g

Mass of cathode after electrolysis

25.4 g

Mass of anode after

electrolysis

22.4 g

Brown solid deposit at the cathode after electrolysis

Bubbles of colourless gas that relight splint

Blue colour of electrolyte fades/become less blue

Blue colour of electrolyte fades /become less blue

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

CuSO4(aq)  -> SO42-(aq) + Cu2+(aq)

II. Name the ions in 1M copper(II) sulphate(VI) solution that are attracted/move to:

Cathode-
Cu2+ (aq) from
copper(II) sulphate(VI) solution and H+(aq) from
water
(H2O)



AnodeSO42-(aq) from
copper(II) sulphate(VI) solution and OH (aq) from
water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  2Cu2+ (aq)  + 4e -> 2Cu(g)

Cu2+ ions are lower than H+ ions in the electrochemical series therefore selectively discharged at the cathode.)

Anode  4OH (aq) -> H2O(l) + O2+ 4e

(OHions ions are higher than SO42- ions in the electrochemical series therefore selectively discharged at the cathode.))

IV. Name the products of electrolysis of 1M copper(II) sulphate(VI) solution

Cathode-2 moles of copper metal as
brown solid coat

AnodeOxygen gas
(Colourless gas that relights /rekindles glowing splint)

V. Explain the changes that take place at the cathode and anode.

Four(4) electrons donated/lost by OH
ions to form 1 molecule/1volume/1mole of Oxygen (O2)gas at the anode are gained/acquired/accepted by two Cu2+(aq) ions
to form 2 moles of brown copper solid that deposit itself at the cathode.

The moles of oxygen gas at the anode is equal to the moles of copper produced at the cathode

VI. Explain the changes in electrolyte during electrolysis of 1M copper (II) sulphate(VI) solution.

(i)The pH of copper(II) sulphate(VI) solution lowers/decreases. The salt becomes more acidic. Water in the electrolyte is decomposed only into Oxygen gas (from the OH ions) that escapes as products at the anode. There is a net accumulation of excess H+ (aq) ions in solution. This makes the electrolyte strongly acidic with low pH.


(ii) Cu2+ (aq) ions are responsible for the blue colour of the electrolyte/ copper(II) sulphate (VI) solution. As electrolysis continues, blue Cu2+ (aq) ions gain electrons to form brown
Copper. The blue colour of electrolyte therefore fades/become less blue.

(iii)Copper is deposited at the cathode. This increases the mass of the cathode.OH ions that produce Oxygen gas at anode come from water. Oxygen escapes out/away without increasing the mass of anode.

II. Using copper electrodes

Weigh clean copper plates electrodes. Record the masses of the electrodes in table I below. Place the electrodes in 1M
copper(II) sulphate(VI) solution in a beaker. Set up an electrolytic cell.

Close the switch and pass current for about 20 minutes. Observe each electrode and any changes in electrolyte. Remove the electrodes from the electrolyte. Wash with acetone/propanone and allow them to dry. Reweigh each electrode.

Sample results

Mass of cathode before electrolysis

23.4 g

Mass of anode before

electrolysis

22.4 g

Mass of cathode after electrolysis

25.4 g

Mass of anode after

electrolysis

20.4 g

Brown solid deposit at the cathode after electrolysis

Anode decrease insize/erodes/wear off

Blue colour of electrolyte remain blue

Blue colour of electrolyte remain blue

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

CuSO4(aq)  -> SO42-(aq) + Cu2+(aq)



II. Name the ions in 1M copper(II) sulphate(VI) solution that are attracted/move to:

Cathode-
Cu2+ (aq) from
copper(II) sulphate(VI) solution and H+(aq) from
water
(H2O)



AnodeSO42-(aq) from
copper(II) sulphate(VI) solution and OH (aq) from
water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  Cu2+ (aq)  + 2e -> Cu(s)

Cu2+ ions are lower than H+ ions in the electrochemical series therefore selectively discharged at the cathode.)

Anode  Cu (s) -> Cu2+(aq)
+ 2e

(Both OHions and SO42- ions move to the anode but none is discharged. The copper anode itself ionizes/dissolves/dissociate because less energy is used to remove an electron/ionize /dissociate copper atoms than OHions.


IV. Name the products of electrolysis of 1M copper(II) sulphate(VI) solution using copper electrodes.

Cathode-1 moles of copper metal as
brown solid coat
(Cathode increase/deposits)

Anode-Anode erodes/decrease in size

V. Explain the changes that take place during the electrolytic process

(i)Cathode

-Cu2+
ions
are lower than H+
ions in the electrochemical series therefore selectively discharged at the cathode. Cu2+
ions have greater tendency to accept/gain/acquire electrons to form brown copper atoms/solid that deposit itself and increase the mass/size of the cathode.The copper deposited at the cathode is pure

-H+
ions accumulate around the cathode. Electrolyte thus becomes strongly acidic around the cathode.

-Cu2+
ions in solution are responsible
for the blue colour of electrolyte. Blue colour of electrolyte fade around the cathode.

 (ii)Anode

Copper atom at the anode easily ionizes to release electrons. The anode therefore keeps decreasing in mass/eroding. The amount of copper that dissolve/erode is equal to the mass of copper deposited. This is called electrode ionization.

Electrode ionization is where the anode erodes/decrease and the cathode deposits/increase during electrolysis. The overall concentration of the electrolyte remains constant

14.In industries electrolysis has the following uses/applications:

 (a)Extraction of reactive metals from their ores.

Potassium, sodium ,magnesium, and aluminium are extracted from their ores using electrolytic methods.

 (b)Purifying copper after exraction from copper pyrites ores.

Copper obtained from copper pyrites ores is not pure. After extraction, the copper is refined by electrolysing copper(II)sulphate(VI) solution using the impure copper as anode and a thin strip of pure copper as cathode. Electrode ionization take place there:

(i)At the cathode; Cu2+ (aq)  + 2e -> Cu(s) (Pure copper deposits on the strip

(ii)At the anode; Cu(s) ->Cu2+ (aq)  + 2e (impure copper erodes/dissolves)

(c)Electroplating

The label EPNS(Electro Plated Nickel Silver) on some steel/metallic utensils mean they are plated/coated with silver and/or Nickel to improve their appearance(add their aesthetic value)and prevent/slow corrosion(rusting of iron). Electroplating is the process of coating a metal with another metal using an electric current. During electroplating,the cathode is made of the metal to be coated/impure.

Example:

During the electroplating of a spoon with silver

(i)the spoon/impure is placed as the cathode(negative terminal of battery)

(ii)the pure silver is placed as the anode(positive terminal of battery)

(iii)the pure silver erodes/ionizes/dissociates to release electrons:

Ag(s) ->Ag+ (aq)  + e (impure silver erodes/dissolves)

(iv) silver (Ag+)ions from electrolyte gain electrons to form pure silver deposits / coat /cover the spoon/impure

Ag+ (aq)  + e ->Ag(s) (pure silver deposits /coat/cover on spoon)

Image From EcoleBooks.com







15.The quantitative amount of products of electrolysis can be determined by applying Faradays 1st law of electrolysis.

Faradays 1st law of electrolysis states that “the mass/amount of substance liberated/produced/used during electrolysis is directly proportional to the quantity of of electricity passed/used.”

(a)The SI unit of quantity of electricity is the coulomb(C). The coulomb may be defined as the quantity of electricity passed/used when a current of one ampere flow for one second.i.e;

 1Coulomb = 1 Ampere x 1Second

The Ampere is the SI unit of current(I)

The Second is the SI unit of time(t) therefore;

Quantity of electricity(in Coulombs) = Current(I) x time(t)

 Practice examples

1. A current of 2 amperes was passed through an electrolytic cell for 20 minutes. Calculate the quantity of electric charge produced.

Working:


Quantity of electricity(in Coulombs) = Current(I) x time(t)

Substituting /converting time to second  = 2 x (20 x 60)

= 2400 C

2. A current of 2 amperes was passed through an electrolytic.96500 coulombs of charge were produced. Calculate the time taken.

Working:

Time(t) in seconds  = Quantity of electricity(in Coulombs)

Current(I) in amperes

Substituting =  96500

2

=  48250 seconds

3. 96500 coulombs of charge were produced after 10 minutes in an electrolytic cell . Calculate the amount of current used.

Working:

Current(I) in amperes = Quantity of electricity(in Coulombs)  Time(t) in seconds

Substituting/converting time to second= 96500

10 x 60

=  160.8333 Amperes

(b)The quantity of electricity required for one mole of electrons at the anode/cathode is called the Faraday constant(F). It is about 96500 Coulombs.i.e

The number of Faradays used /required is equal to the number of electrons used at cathode/anode during the electrolytic process. e.g.

Cu2+ require to gain 2 moles of electrons=2 Faradays =2 x 96500 coulombs of electricity at the cathode.

Al3+ require to gain 3 moles of electrons=3 Faradays =3 x 96500 coulombs of electricity at the cathode

Na+ require to gain 1 moles of electrons=1 Faradays =1 x 96500 coulombs of electricity at the cathode

2H+ require to gain 2 moles of electrons=2 Faradays =2 x 96500 coulombs of electricity at the cathode to form 1molecule of hydrogen gas

2O2 require to lose/donate 4 moles of electrons=4 Faradays =4 x 96500 coulombs of electricity at the anode to form 1molecule of Oxygen O2 gas.

4OH require to lose/donate 4 moles of electrons=4 Faradays =4 x 96500 coulombs of electricity at the anode to form 1molecule of Oxygen gas and 2 molecules of water.

(c)The mass/amount of products at the cathode/anode is related to the molar mass of the substance and/or the volume of gases at standard/room temperature and pressure as in the below examples:

Practice examples

1.Calculate the mass of copper deposited at the cathode when a steady current of 4.0 amperes is passed through copper(II)sulphate(VI) for 30 minutes in an electrolytic cell. (Cu=63.5, 1F = 96500C)

Working:


Quantity of electricity(in Coulombs) = Current(I) x time(t)

Substituting /converting time to second  = 4 x (30 x 60)

= 7200 C

Equation at the cathode:  Cu2+ (aq) + 2e -> Cu(s)

2 mole of electrons = 2 Faradays = 2 x 96500 C produce a mass =molar mass of copper thus;

2 x 96500C -> 63.5 g

72000C -> 7200 x 63.5  = 2.3689 g of copper

2 x 96500

2.a)If 3.2 g of Lead were deposited when a current of 2.5 amperes was passed through an electrolytic cell of molten Lead(II)bromide for 20 minutes, determine the Faraday constant.(Pb = 207)

Working:


Quantity of electricity (in Coulombs)  = Current(I) x time(t)

Substituting /converting time to second  = 2.5 x (20 x 60)

= 3000 C

If 3.2g of Lead -> 3000C

Then 207 g of Lead   ->  207 x 3000 =  194062.5 C

3.2

Equation at the cathode:  Pb2+ (l) + 2e -> Pb(l)

From the equation: 2 moles of electrons = 2 Faradays = 194062.5 C

  1mole of electrons = 1 Faraday => 194062.5 = 97031.25 C

  2



b)What is the volume of bromine vapour produced at the anode at room temperature(1mole of gas at room temperature and pressure = 24000cm3)

Method 1

Equation at the anode:   Br (l) -> Br2(g) + 2e

From the equation: 2 moles of electrons = 2 Faradays = 194062.5 C -> 24000cm3

3000 C -> 3000 x 24000

194062.5

=371.0145cm3

Method 2

Equation at the anode:   Br (l) -> Br2(g) + 2e

Mole ratio of products at Cathode: anode = 1:1

Moles of Lead at cathode = 3.2   = 0.0155moles = moles of Bromine

  207

1 moles of bromine vapour -> 24000cm3

0.0155moles of Bromine -> 0.0155 x 24000 = 372 cm3

Method 3

Equation at the anode:   Br (l) -> Br2(g) + 2e

Ratio of Faradays used to form products at Cathode: anode = 2:2

=> 2 x 97031.25 C produce 24000cm3 of bromine vapour

Then: 3000 C -> 3000 x 24000cm3  = 371.0145cm3

2 x 97031.25

3.What mass of copper remain from 2.0 at the anode if a solution of copper(II)sulphate(VI) is electrolysed using a current of 1 ampere flowing through an electrolytic cell for 20 minutes.(Cu= 63.5, 1Faraday = 96487 coulombs)

Working:


Quantity of electricity (in Coulombs)  = Current(I) x time(t)

Substituting /converting time to second  = 1 x (20 x 60)

= 1200 C

Equation at the cathode:   Cu2+ (aq) + 2e -> Cu(s)



2 mole of electrons = 2 Faradays = 2 x 96500 C erode/dissolve a mass =molar mass of copper thus;

2 x 96500C -> 63.5 g

1200C -> 1200 x 63.5 = 0.3948g of copper deposited

2 x 96500

Mass of copper remaining = Original mass – mass dissolved/eroded

=> 2.0 -0.3948 = 1.6052 g of copper remain



4. Calculate the current passed if a mass of 0.234 g of copper is deposited in 4 minutes during electrolysis of a solution of copper (II)sulphate(VI).

(Cu= 63.5 ,1F = 96500C)

Working:

Equation at the cathode:   Cu(s) -> Cu2+ (aq) + 2e

2 mole of electrons = 2 Faradays = 2 x 96500 C produce a mass =molar mass of copper thus;

63.5 g -> 2 x 96500C

0.234 g -> 0.234 x 2 x 96500 = 711.2126 C

  63.5

Current(I) in amperes = Quantity of electricity(in Coulombs)  Time(t) in seconds

Substituting/converting time to second= 711.2126 C

4x 60

=  2.9634 Amperes

5. (a)What quantity of electricity will deposit a mass of 2.43 g of Zinc during electrolysis of a solution of Zinc (II)sulphate(VI).

(Zn= 65 ,1F = 96500C)

Working:

Equation at the cathode:   Zn2+ (aq) + 2e -> Zn(s)



2 mole of electrons = 2 Faradays = 2 x 96500 C erode/dissolve a mass =molar mass of Zinc thus;

 65 g   -> 2 x 96500

 2.43 g   -> 2.43 x 2 x 96500 = 7215.2308 C

    65

(b)Calculate the time (in minutes) it would take during electrolysis of the solution of Zinc (II)sulphate(VI) above if a current of 4.0 Amperes is used.

Time(t) in seconds  = Quantity of electricity(in Coulombs)

Current(I) in amperes

Substituting  = 7215.2308 =  1803.8077 seconds = 30.0635 minutes

4 60

6.When a current of 1.5 amperes was passed through a cell containing M3+ ions of metal M for 15 minutes, the mass at cathode increased by 0.26 g.(Faraday constant = 96500C

a) Calculate the quantity of electricity used.

Quantity of electricity (in Coulombs)  = Current(I) x time(t)

Substituting /converting time to second  = 1.5 x (15 x 60)

= 1350 C

  1. Determine the relative atomic mass of metal M

Equation at the cathode:   M3+ (aq) + 3e -> M(s)

1350 C of electricity -> 0.26 g of metal M

3 mole of electrons = 3 Faradays = 3 x 96500 C produce a mass =molar mass of M thus;

RAM of M = 0.26 g x 3 x 96500 = 55.7556(No units)

1350

7.An element “P” has a relative atomic mass 88.When a current of 0.5 amperes was passed through fused chloride of “P” for 32 minutes and 10seconds ,0.44 g of “P” was deposited at the cathode. Determine the charge on an ion of “P”(Faraday constant = 96500C)

Working:


Quantity of electricity (in Coulombs)  = Current(I) x time(t)

Substituting /converting time to second  = 0.5 x ((32 x 60) + 10)

= 965C


0.44 g of metal “P” are deposited by 965C

88g of of metal “P” are deposited by: 88 x 965= 193000 C

0.44

96500 C = 1 mole of electrons = 1 Faradays = single charge

193000 C  -> 193000 = 2 moles/Faradays/charges => symbol of ion = P2+

96500

8. During purification of copper by electrolysis 1.48 g of copper was deposited when a current was passed through aqueous copper (II)sulphate(VI) for 2 ½ hours. Calculate the amount of current that was passed. (Cu= 63.5 ,1F = 96500C)

Working:

Equation at the cathode:   Cu2+ (aq) + 2e-> Cu(s)

2 mole of electrons = 2 Faradays = 2 x 96500 C produce a mass =molar mass of copper thus;

63.5 g -> 2 x 96500C

1.48 g -> 1.48 x 2 x 96500 = 4255.1181 C

  63.5

Current(I) in amperes = Quantity of electricity(in Coulombs)  Time(t) in seconds

Substituting/converting time to second= 4255.1181C

(( 2 x 60) + 30) x60

=  0.4728 Amperes

17. Practically Faraday 1st law of electrolysis can be verified as below.

Verifying Faraday 1st law of electrolysis

Procedure.

Weigh clean copper plates electrodes. Record the masses of the electrodes in table I below. Place the electrodes in 1M
copper(II) sulphate(VI) solution in a beaker. Set up an electrolytic cell.

Close the switch and pass a steady current of 2 amperes by adjusting the rheostat for exactly 20 minutes.Remove the electrodes from the electrolyte. Wash with acetone/ propanone and allow them to dry. Reweigh each electrode.

Sample results

Mass of cathode before electrolysis

7.00 g

Mass of anode before

electrolysis

7.75 g

Mass of cathode after electrolysis

8.25 g

Mass of anode after

electrolysis

6.50 g

Change in mass at cathode after electrolysis

1.25 g

Change in mass at anode after electrolysis

1.25 g

Answer the following questions:

I. Write the equation for the decomposition of the electrolytes during the electrolytic process.

H2O(l)  -> OH (aq) + H+(aq)

CuSO4(aq)  -> SO42-(aq) + Cu2+(aq)

II. Name the ions in 1M copper(II) sulphate(VI) solution that are attracted/move to:

Cathode-
Cu2+ (aq) from
copper(II) sulphate(VI) solution and H+(aq) from
water
(H2O)



AnodeSO42-(aq) from
copper(II) sulphate(VI) solution and OH (aq) from
water
(H2O)


III. Write the equation for the reaction during the electrolytic process at the:

Cathode  Cu2+ (aq)  + 2e -> Cu(s)

Cu2+ ions are lower than H+ ions in the electrochemical series therefore selectively discharged at the cathode.)

Anode  Cu (s) -> Cu2+(aq)
+ 2e

(Both OHions and SO42- ions move to the anode but none is discharged. The copper anode itself ionizes/dissolves/dissociate as less energy is used to remove an electron/ionize /dissociate copper atoms than OHions.


IV. Name the products of electrolysis of 1M copper(II) sulphate(VI) solution using copper electrodes.

Cathode-1.25 g of copper metal as
brown solid coat/deposits

Anode-1.25 g of copper metal erodes/decrease in size

V. (i)How many moles of electrons are used to deposit/erode one mole of copper metal at the cathode/anode?

From the equation at anode/cathode= 2 moles

(ii)How many Faradays are used to deposit/erode one mole of copper metal at the cathode/anode?

From the equation at anode/cathode : 2 moles = 2 Faradays



(iii)Calculate the quantity of electric charge used


Working:


Quantity of electricity (in Coulombs)  = Current(I) x time(t)

Substituting /converting time to second  = 2 x 20 x 60

= 2400C

VI. (i) Calculate the quantity of electricity required to deposit/erode one mole of copper at the cathode/anode(Cu=63.5)

Since 1.25 g of copper -> 2400C

Then 63.5 g (1mole of copper) -> 63.5 x 2400 = 121920 C

 1.25

(ii)Determine the Faraday constant from the results in V(i) above

From the equation at;

Cathode  Cu2+ (aq)  + 2e -> Cu(s)

Anode  Cu (s) -> Cu2+(aq)
+ 2e

2 moles = 2 Faradays -> 121920 C

1 moles = 1 Faradays -> 121920 = 60960 C

  2

(iii) The faraday constant obtained above is far lower than theoretical.Explain

   -high resistance of the wires used.

-temperatures at 25oC were not kept constant

-plates/electrodes used were not made of pure copper

-plates/electrodes used were not thoroughly clean copper

Further practice

1.An element P has a relative atomic mass of 88. When a current of 0.5 amperes was passed through the fused chloride of P for 32 minutes and 10 seconds, 0.44g of P were deposited at the cathode. Determine the charge on an ion of P. (1 faraday = 96500 Coulombs).

2.During electrolysis of aqueous copper (II) sulphate, 144750 coulombs of electricity were used. Calculate the mass of copper metal that was obtained

(Cu = 64  ;1 Faraday = 96500 coulombs) ( 3 mks)

3.A nitrate of a metal M was electrolysed .1.18 g of metal was deposited when a current of 4 ampheres flow for 16 minutes.Determine the formula of the sulphate(VI)salt of the metal.

(Faraday constant = 96500 , RAM of X = 59.0)

Working

Q = It =>( 4 x 16 x 60) = 3840 C

1.18 g of X => 3840 C

59.0 g =>  59.0 x 3840 = 192000 C

1.18

96500 C = 1Faraday

192000 C= 192000 C x1 = 2F thus charge of M = M2+

 96500 C

Valency of M is 2 thus formula of sulphate(VI)salt MSO4

4. Below is the results obtained when a current of 2.0ampheres is passed through copper(II)sulphate(VI)solution for 15 minutes during electrolysis using copper electrode.

 Initial mass of cathode  = 1.0 g

 Final mass of cathode  = 1.6 g

Change in mass of cathode = 0.60 g

(i)Determine the change in mass at the anode. Explain your answer.

Mass decrease = 0.6g.

Electrode ionization take place where the cathode increase in mass form the erosion of the anode

(ii)Calculate the quantity of electricity required to deposit one mole of copper.(Cu =63.5)

Q =It => 2 x 15 x 60 = 1800 coulombs

Method 1

0.60 g of copper  ->1800 coulombs

63.5 g ->  63.5 x 1800 = 190500 Coulombs

0.60

Method 2

Moles of Copper =   Mass  => 0.60 = 9.4488 x10 -3 moles

Molar mass 63.5

9.4488 x10 -3 moles -> 1800 coulombs

1 Mole -> 1 x 1800 coulombs = 190500.381 coulombs

9.4488 x10 -3 moles

(iii)Determine the oxidation number of copper produced at the cathode and hence the formula of its nitrate (V)salt (1 Faraday = 96500 Coulombs)


96500 Coulombs -> 1 Faraday

190500.381 coulombs  -> 190500.381 coulombs x 1

96500 Coulombs

 = 1.9741 Faradays => 2F(whole number)

Charge of copper = 2+ = Oxidation number

=> Valency of copper = 2 hence chemical formula of
nitrate (V)salt = Cu (NO3)2













Share this:


EcoleBooks | Chemistry Form 4 Notes : ELECTROCHEMISTRY

subscriber

Leave a Reply

Your email address will not be published. Required fields are marked *

Accept Our Privacy Terms.*
